H 1748 (55AI4HPS750) - Cub Cadet Walk-Behind Mower FH541V-BS31 Cylinder & Crankcase Parts Diagram

Walk-Behind Mower

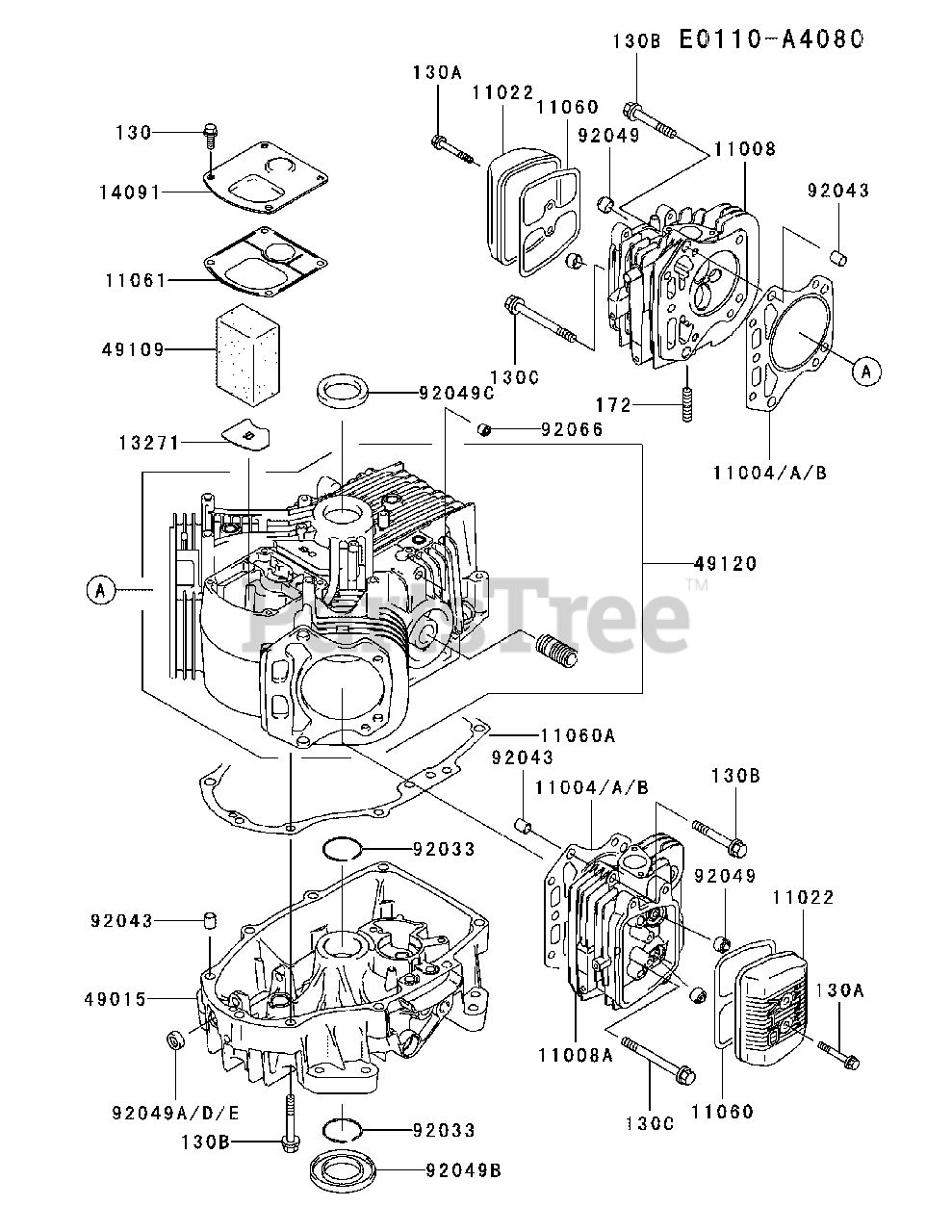

FH541V-BS31 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7016

GASKET-HEAD

$10.99

$

In Stock, Qty 20+

0

11004A

Cub Cadet KM-11004-7016

GASKET-HEAD

$10.99

$

In Stock, Qty 20+

0

11008

Cub Cadet KM-11008-6043

HEAD-COMP-CYLINDER, #1

$273.99

$

In Stock, Qty 9

0

11008A

Cub Cadet KM-11008-7020

HEAD-COMP-CYLINDER, #2

$273.99

$

In Stock, Qty 5

0

11022

Cub Cadet KM-11022-7003

CASE-ROCKER

$14.99

$

In Stock, only 3 left!

0

11060

Cub Cadet KM-11060-7001

GASKET, ROCKER CASE

$6.99

$

In Stock, Qty 20+

0

11060A

Cub Cadet KM-11060-7008

GASKET,

$6.99

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-7097

GASKET, BREATHER

$8.49

$

In Stock, Qty 9

0

13271

Cub Cadet KM-13271-7016

PLATE

$2.49

$

In Stock, only 2 left!

0

14091

Cub Cadet KM-14091-7006

COVER
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 20+

0

49015

Cub Cadet KM-49015-6253

COVER-CRANKCASE

$180.99

$

Usually ships in 2-5 days

0

49109

Cub Cadet KM-49109-7002

ELEMENT-BREATHER
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 20+

0

49120

Cub Cadet KM-49120-7023

CRANKCASE-COMP

$

$

Not available

92033

Cub Cadet KM-92033-7003

RING-SNAP

$0.99

$

In Stock, Qty 20+

0

92043

Cub Cadet KM-92043-7001

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-7001

SEAL-OIL, RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Cub Cadet KM-92049-7019

SEAL-OIL, SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

92049C

Cub Cadet KM-92049-7016

SEAL-OIL, SD 35X48X8 R HS

$5.99

$

In Stock, Qty 20+

0

92049D

Cub Cadet KM-92049-7019

SEAL-OIL, SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

130

Cub Cadet KM-130BA0612

BOLT-FLANGED

$1.99

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130BA0640

BOLT-FLANGED

$1.49

$

In Stock, only 1 left!

0

130B

Cub Cadet KM-130CA0850

BOLT-FLANGED

$1.99

$

In Stock, Qty 16

0

130C

Cub Cadet KM-130CA0875

BOLT-FLANGED

$2.49

$

In Stock, Qty 9

0

172

Cub Cadet KM-172BA0818

BOLT-STUD

$1.99

$

In Stock, Qty 20+

0

Cub Cadet KM-FH541V-BS31S

Replacement Engine

Note: (not shown)

$

$

Not available
