H 1748 (55AI4HPS050) - Cub Cadet Walk-Behind Mower Kawasaki FH541V-CS25 Cooling Equipment Parts Diagram

Walk-Behind Mower

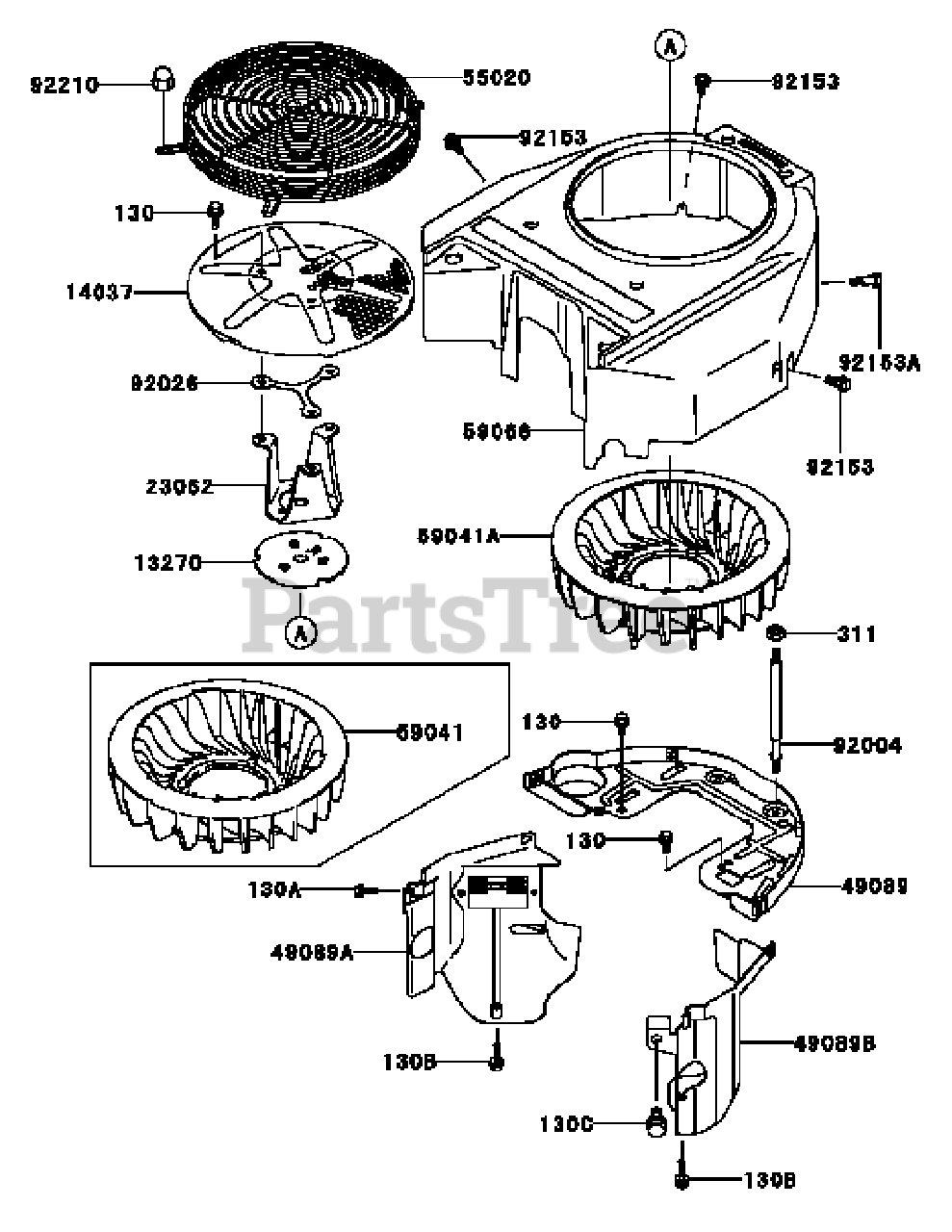

Kawasaki FH541V-CS25 Cooling Equipment Parts Diagram

  • Title

130

Cub Cadet KM-130B0612

BOLT-FLANGED,6X12
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130B0616

BOLT-FLANGED,6X16
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

130B

Cub Cadet KM-130B0625

BOLT-FLANGED,6X25
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

130C

Cub Cadet KM-130B0816

BOLT-FLANGED,8X16
(Superseded to KM-130BA0816)

$1.99

$

In Stock, only 4 left!

0

13270

Cub Cadet KM-13270-7007

PLATE

$5.99

$

In Stock, Qty 20+

0

14037

KM-14037-7020-9H

SCREEN

$

$

Not available

23062

Cub Cadet KM-23062-7010

BRACKET-COMP

$10.99

$

In Stock, Qty 5

0

311

Cub Cadet KM-311B0600

NUT-HEX,6MM
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 20+

0

49089

Cub Cadet KM-49089-7032

SHROUD-ENGINE

$32.99

$

In Stock, only 1 left!

0

49089A

Cub Cadet KM-49089-7042

SHROUD-ENGINE

$32.99

$

Usually ships in 2-5 days

0

49089B

Cub Cadet KM-49089-7043

SHROUD-ENGINE

$33.99

$

Usually ships in 2-5 days

0

55020

Cub Cadet KM-55020-7004

GUARD

$32.99

$

In Stock, Qty 7

0

59041A

Cub Cadet KM-59041-7012

FAN
(Superseded to KM-59041-0020)

$19.99

$

In Stock, Qty 20+

0

59066

Cub Cadet KM-59066-7037

HOUSING-FAN

$

$

Not available

92004

Cub Cadet KM-92004-7006

STUD
(Superseded to KM-92004-7025)

$6.99

$

In Stock, Qty 20+

0

92026

Cub Cadet KM-92026-7007

SPACER

Note: (as required)

$5.99

$

In Stock, Qty 20+

0

92153

Cub Cadet KM-92153-7007

BOLT

$4.49

$

In Stock, Qty 20+

0

92153A

Cub Cadet KM-92153-7008

BOLT
(Superseded to KM-92154-2823)

$0.99

$

In Stock, Qty 6

0

92210

Cub Cadet KM-92210-0003

NUT

$0.99

$

In Stock, Qty 20+

0
