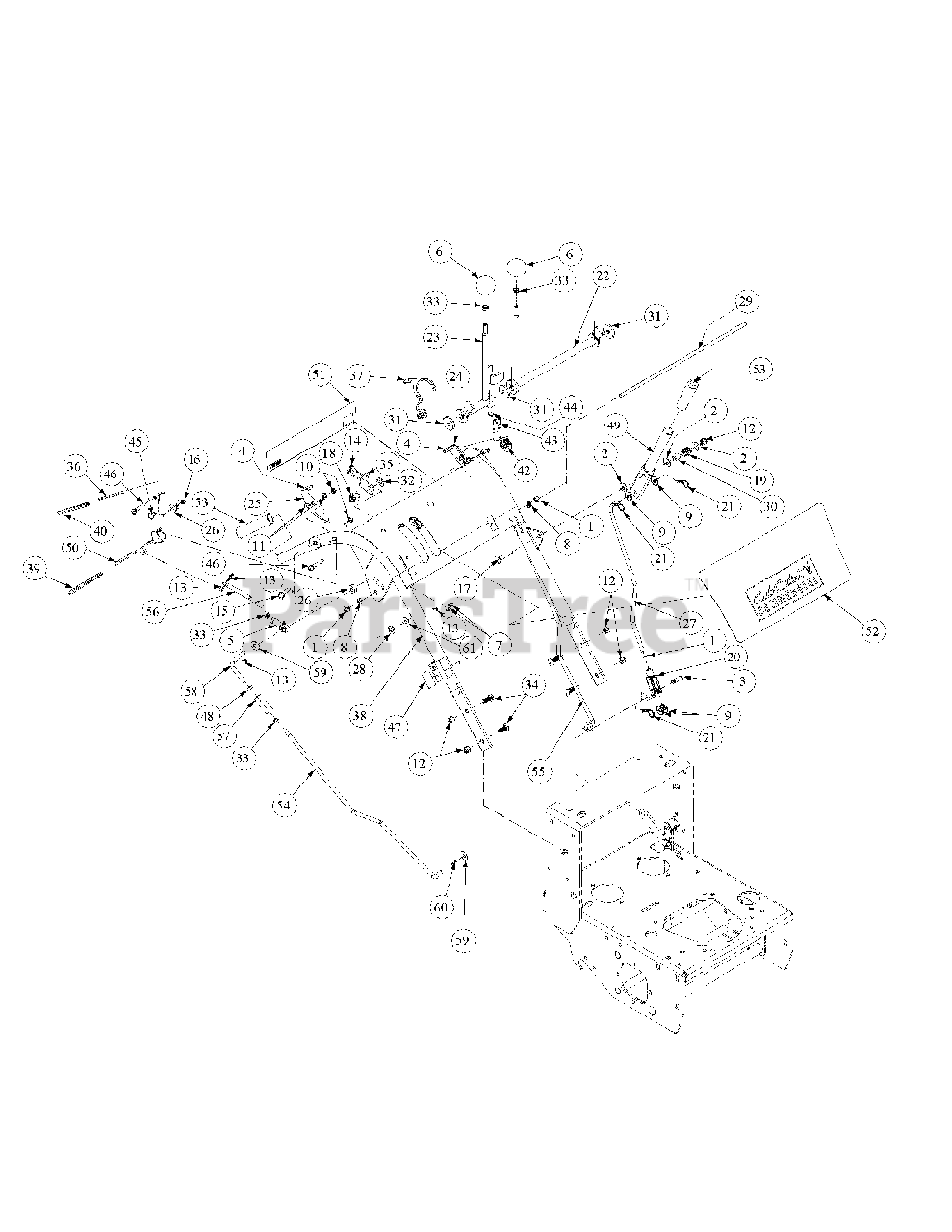

H 1748 (55AE3D4S750) - Cub Cadet Walk-Behind Mower Standard Handle Assembly Parts Diagram

Walk-Behind Mower

Standard Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3017

Hex Nut, 3/8 - 16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00006168

Flat Washer, SS, 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00009678

Clevis Pin, 3/8 x 1 1/8
(Superseded to 711-05735)

$12.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00011211

Grip, 1.25, Black Neutral Lock

$8.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00012116

End Rod, 3/8

Note: NLA

$

$

Not available

6

Cub Cadet 00012118

Knob, 1-3/8 x 1-19/64, 3/8-24

$

$

Not available

7

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 00012158

Flat Washer, 3/8, SAE

$4.49

$

In Stock, Qty 9

0

10

Cub Cadet 00012165

Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

11

Cub Cadet 00012169

Flat Washer, SAE 5/16

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 00012562

Cotter Pin, 5/32 x 1-1/2 Zinc

$

$

Not available

14

Cub Cadet 00013131

HHCS, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

15

Cub Cadet 00013198

HHCS, Standard, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 712-04177

Lock Nut, Nylon Insert, 1/4 - 28

$6.99

$

In Stock, only 4 left!

0

17

Cub Cadet 00014270

Carriage Bolt, 3/8 -16 x 2
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

18

Cub Cadet 00015903

Switch Operator's Presence

$44.99

$

In Stock, only 1 left!

0

19

Cub Cadet 00021797

Spring, .850

$9.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 00021955

Yoke, 3/8 - 16, Female

$42.99

$

In Stock, only 1 left!

0

21

Cub Cadet 00021957

Hair Pin, 3/8 - 1/2
(Superseded to 00021956)

$4.49

$

In Stock, only 4 left!

0

22

Cub Cadet 00069943

Control Assembly, Speed Hydro, LH

$

$

Not available

23

Cub Cadet 00069952

Control Assembly, Speed Hydro, RH

$

$

Not available

24

Cub Cadet 00071310

Latch, RH, Neutral Hydro

$

$

Not available

25

Cub Cadet 00071326

Latch, LH, Neutral Hydro

$

$

Not available

26

Cub Cadet 00071691

Hydro, Spacer Control Rod

$11.99

$

In Stock, only 1 left!

0

27

Cub Cadet 00071879

Blade Clutch, Hydro Rod Base

$50.99

$

In Stock, only 1 left!

0

28

Cub Cadet 00072892

Hydro Bush Control Rod

$

$

Not available

29

Cub Cadet 00073092

Hydro Rod, Speed Control

$

$

Not available

30

Cub Cadet 00076730

Sleeve Spring, 32/36/48

$5.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 00077495

Friction Washer

$

$

Not available

32

Cub Cadet 00090995

Hex Nut, Dead Man Switch

$

$

Not available

33

Cub Cadet 912-3001

Hex Jam Nut, 3/8-24

$6.99

$

In Stock, Qty 18

0

34

Cub Cadet 01000643

Carriage Bolt, 3/8 -16 x 2

$5.49

$

In Stock, Qty 7

0

35

Cub Cadet 01001377-0637

Mounting Switch, Neutral, Safety 2

$

$

Not available

36

Cub Cadet 02002360-0637

Operator Presence Control Handle, RH

$38.99

$

In Stock, only 1 left!

0

37

Cub Cadet 02002362-0637

Operator Presence Control Handle, LH

$

$

Not available

38

Cub Cadet 01001704-0637

Hydro, Handle Assembly

$

$

Not available

39

Cub Cadet 01001714

Control Sleeve, Drive Black

$11.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 01001715

Operators Control Sleeve, Yellow

$11.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01001716

Harness Adapter Assembly

$

$

Not available

42

Cub Cadet 01001717

Snap Mounting Switch
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

43

Cub Cadet 01001863

Retension Spring

$

$

Not available

44

Cub Cadet 01001864

Screw, TT, 10-24, .5
(Superseded to 1767754)

$

$

Not available

45

Cub Cadet 01001919

Shoulder Screw, .38 x .412, 1/4-28
(Superseded to 938-0826)

$12.99

$

In Stock, Qty 5

0

46

Cub Cadet 01001972

HHCS, 5/16-18, 2.00

$3.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 01002171

Parking Brake Decal

$

$

Not available

48

Cub Cadet 01002986

Left Hand Threaded Jam Nut, 3/8-24

$6.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 01003209-0637

Clutch Lever Blade

$

$

Not available

50

Cub Cadet 02002358-0637

Control Lever Assembly

$

$

Not available

51

Cub Cadet 01006085

Lable Handle

$

$

Not available

52

Cub Cadet 01006669

Panel Label

$

$

Not available

53

Cub Cadet 01007530

Black Handle Thin Grip

$23.99

$

In Stock, only 1 left!

0

54

Cub Cadet 01007731

Large Right Control Rod

$

$

Not available

55

Cub Cadet 01007732

Large Left Control Rod

$

$

Not available

56

Cub Cadet 01007733

Short Control Rod

$

$

Not available

57

Cub Cadet 01007734

Turnbuckle

$31.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 01007735

Upper Control Rod

$37.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 736-3052

Flat Washer .406 ID x 1.00 OD

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 914-0104

Cotter Pin Internal, .072 x 1.12
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

61

Cub Cadet 936-3015

Washer, .469 ID x .875 OD x .105

$4.49

$

In Stock, only 1 left!

0
