H 1748 (55AE3D4S150) - Cub Cadet Walk-Behind Mower (2003) Standard Tank Assembly Parts Diagram

Walk-Behind Mower

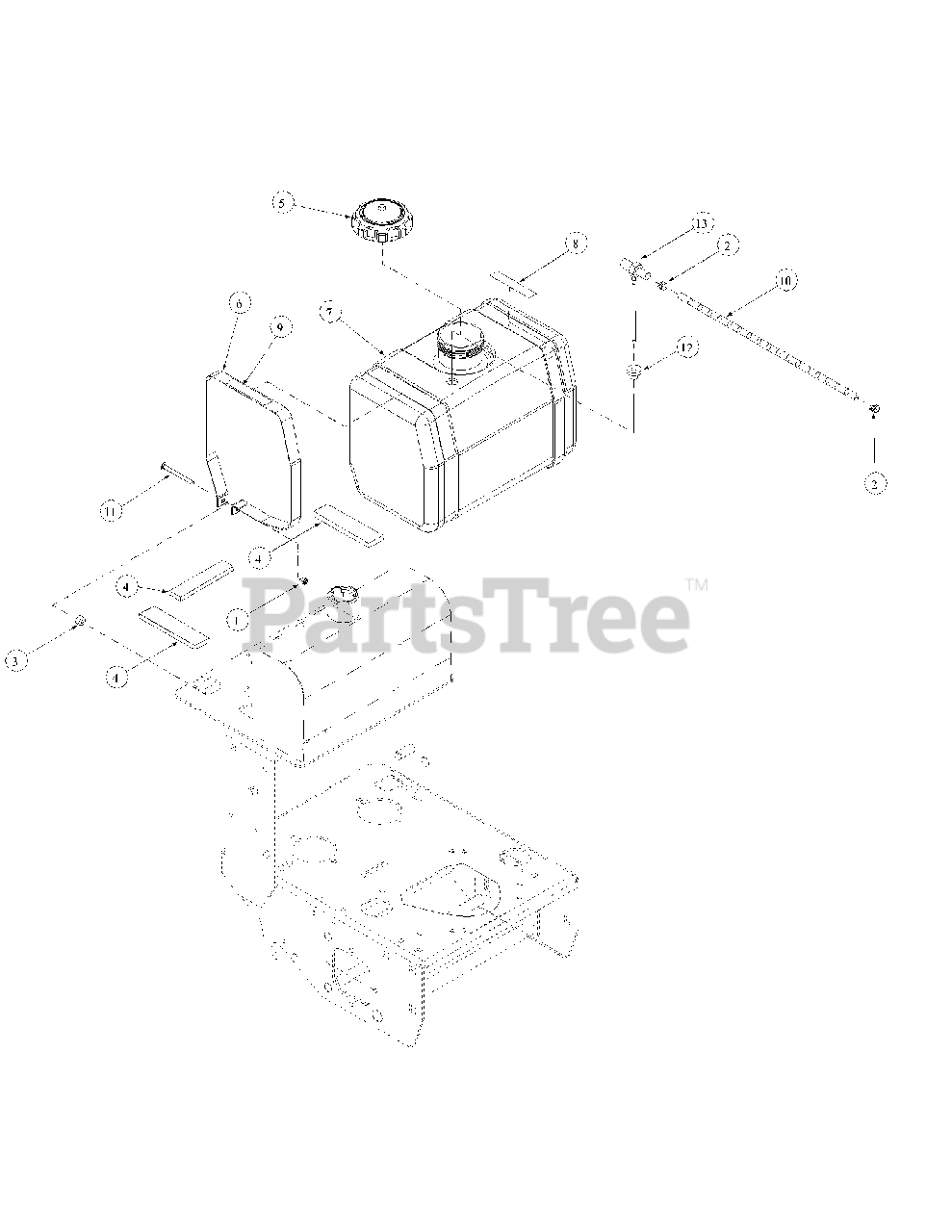

Standard Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 00012235

Uni-Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet 00021941

Spacer

$

$

Not available

4

Cub Cadet 00021407

Stop Pad, Rubber

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 951-3124E

Fuel Cap, 3.5

$36.99

$

In Stock, only 1 left!

0

6

Cub Cadet 01001023

Fuel Tank Strap

$56.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01008857

Fuel Tank

$

$

Not available

8

Cub Cadet 01001036

Mower Warning Label, Turn off Engine

$

$

Not available

9

Cub Cadet 01001038

Mower Instruction Label, Fuel Valve

$

$

Not available

10

Cub Cadet n/a

Fuel Hose, 18"

Note: (purchase locally)

$

$

Currently unavailable

11

Cub Cadet 01002509

Carriage Bolt, 1/4-20 x 3.00

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 02002253

Grommet Fuel Tank

$4.99

$

In Stock, only 2 left!

0

13

Cub Cadet 01007425

Shutoff Valve
(Superseded to 751-12478)

$52.99

$

In Stock, only 2 left!

0
