H 1732ES (1696926-00) - Snapper 32" Snow Thrower, 16.5hp Engine & Frame Group Parts Diagram

32" Snow Thrower, 16.5hp

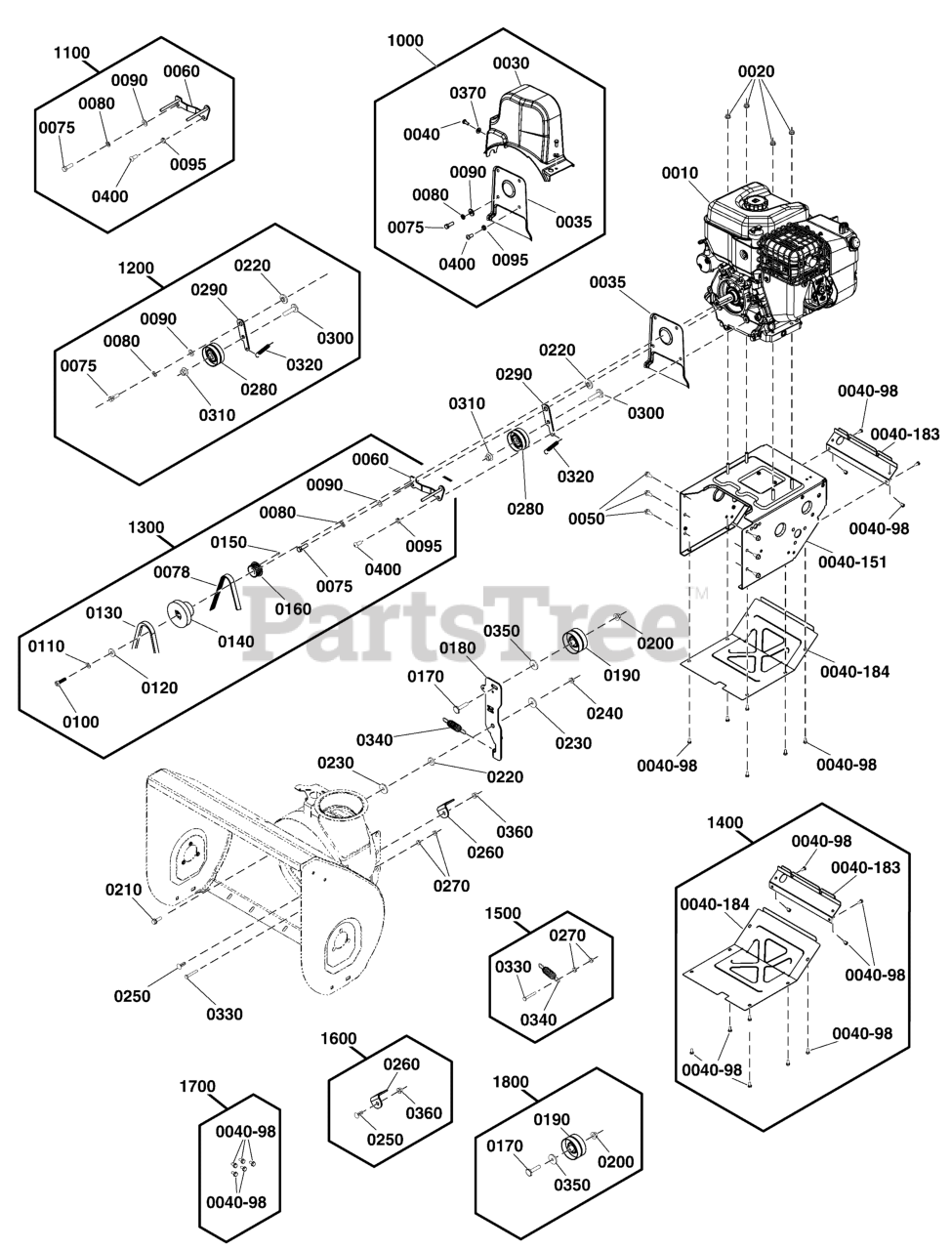

Engine & Frame Group Parts Diagram

  • Title

0010

Snapper 25D137-0116-G1

* ENGINE, 16.5TP Briggs & Stratton, Export

$

$

Currently unavailable

0020

Snapper 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 14

0

0040-151

MOTOR BOX ASSEMBLY, Red

Note: (Refer to Note: **)

$

$

Not available

0050

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0180

Snapper 772120

BRACKET, Tensioner, Auger-Impeller, HD

$45.99

$

Usually ships in 2-12 days

0

0210

Snapper 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0230

WASHER, .312 (0.34 ID X 1.25 OD X .13 Thk) ZC/CL

$

$

Not available

0240

Snapper 704067

NUT, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 14

0

1000

Snapper 84005786

KIT, Belt Cover

Note: (Incl. Ref. Nos. 0030, 0035, 0040, 0075, 0080, 0090, 0095, 0370, 0400)

$37.99

$

Usually ships in 2-12 days

0

0030

COVER, Belt

$

$

Not available

0035

PLATE, Water Shield

$

$

Not available

0040

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

0075

SCREW, 5/16-18X0.750, GR5, WHIZ-LOCK, ZC

$

$

Not available

0080

LOCKWASHER, Spring, 5/16

$

$

Not available

0090

WSHR SAE FLAT 5/16 ZINC/CLEAR

$

$

Not available

0095

NUT, 5/16-24 Hex Jam Centerlock, GR A, ZC/CL

$

$

Not available

0370

WASHER .281X.630X.065 FLAT ZINC/CLEAR

$

$

Not available

0400

SCREW, 5/16-24X.75, BUTTON HD, BLACK OXI

$

$

Not available

1100

Snapper 772138

KIT, Belt Guide

Note: (Incl. Ref. Nos. 0060, 0075, 0080, 0090, 0095, 0400)

$39.99

$

Usually ships in 2-12 days

0

0060

WELDMENT, Belt Guide, Upper, HD, Black

$

$

Not available

0075

SCREW, 5/16-18X0.750, GR5, WHIZ-LOCK, ZC

$

$

Not available

0080

LOCKWASHER, Spring, 5/16

$

$

Not available

0090

WSHR SAE FLAT 5/16 ZINC/CLEAR

$

$

Not available

0095

NUT, 5/16-24 Hex Jam Centerlock, GR A, ZC/CL

$

$

Not available

0400

SCREW, 5/16-24X.75, BUTTON HD, BLACK OXI

$

$

Not available

1200

Snapper 772089

KIT, Drive Idler Pulley

Note: (Incl. Ref. Nos. 0075, 0080, 0090, 0220, 0280, 0290, 0300, 0310, 0320)

$29.99

$

Usually ships in 2-12 days

0

0075

SCREW, 5/16-18X0.750, GR5, WHIZ-LOCK, ZC

$

$

Not available

0080

LOCKWASHER, Spring, 5/16

$

$

Not available

0090

WSHR SAE FLAT 5/16 ZINC/CLEAR

$

$

Not available

0220

BUSHING, Idler Bracket

$

$

Not available

0280

PULLEY, Idler, 2.25 OD

$

$

Not available

0290

BRACKET, Idler

$

$

Not available

0300

SCREW-HEX HD 3/8-16X1.500 .141TH HD ZC/C

$

$

Not available

0310

NUT, 3/8-16 Hex Flange Center Lock, Zinc Plated

$

$

Not available

0320

SPRING, Traction Drive Idler, 3.654" LG

$

$

Not available

1300

Snapper 772137

KIT, Belt, Guide & Pulley

Note: (Incl. Ref. Nos. 0060, 0075, 0078, 0080, 0090, 0095, 0100, 0110, 0120, 0130, 0140, 0150, 0160, 0400)

$101.99

$

Usually ships in 2-12 days

0

0060

WELDMENT, Belt Guide, Upper, HD, Black

$

$

Not available

0075

SCREW, 5/16-18X0.750, GR5, WHIZ-LOCK, ZC

$

$

Not available

0078

Snapper 770799

BELT, Traction Drive

$28.99

$

In Stock, only 4 left!

0

0080

LOCKWASHER, Spring, 5/16

$

$

Not available

0090

WSHR SAE FLAT 5/16 ZINC/CLEAR

$

$

Not available

0095

NUT, 5/16-24 Hex Jam Centerlock, GR A, ZC/CL

$

$

Not available

0100

HHCS 3/8-24 X 1.25 GR8 ZINC/CLEAR

$

$

Not available

0110

WASHER, 3/8, Split Lock, ZC/CL

$

$

Not available

0120

Snapper 704128

WASHER, Flat

$4.99

$

In Stock, Qty 11

0

0130

Snapper 772119

BELT, A/HA, 36.3 Eff. Length, HD

$38.99

$

In Stock, only 2 left!

0

0140

PULLEY, Auger Impeller Drive, HD-ZMO

$

$

Not available

0150

KEY, 3/16 X .375, Square Undersized

$

$

Not available

0160

PULLEY, Drive

$

$

Not available

0400

SCREW, 5/16-24X.75, BUTTON HD, BLACK OXI

$

$

Not available

1400

Snapper 770821

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 40-0098, 40-0183, 40-0184)

$66.99

$

Usually ships in 2-12 days

0

0040-98

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

0040-183

COVER, Back

$

$

Not available

0040-184

COVER, Bottom

$

$

Not available

1500

Snapper 772096

KIT, Idler Spring

Note: (Incl. Ref. Nos. 0270, 0330, 0340)

$6.99

$

Usually ships in 2-12 days

0

0270

NUT, Flange, Nylock, 1/4-20

$

$

Not available

0330

CAPSCREW, Hex Head, 1/4-20

$

$

Not available

0340

SPRING, Idler, Auger Impeller

$

$

Not available

1600

Snapper 772097

KIT, Belt Guide

Note: (Incl. Ref. Nos. 0250, 0260, 0360)

$8.49

$

Usually ships in 2-12 days

0

0250

Snapper 80004473

BOLT,5/16-18X1.000,ROUND HD CRRG,ZC/CL
(Superseded to 703483)

$3.99

$

In Stock, only 3 left!

0

0260

GUIDE, Belt, Lower, HD

$

$

Not available

0360

NUT, 5/16-18 Hex Flange Nyloc

$

$

Not available

1700

Snapper 771904

KIT, Hardware

Note: (Incl. Ref. No. 40-0098)

$6.99

$

Usually ships in 2-12 days

0

0040-98

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

1800

Snapper 772094

KIT, Idler Pulley

Note: (Incl. Ref. Nos. 0170, 0190, 0200, 0350)

$27.99

$

Usually ships in 2-12 days

0

0170

SCREW, 3/8-16X1.75, .141, Hex Head

$

$

Not available

0190

PULLEY, 2.75 OD, Idler

$

$

Not available

0200

NUT, 3/8-16 Hex Flange Center Lock, Zinc Plated

$

$

Not available

0350

Snapper 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0
