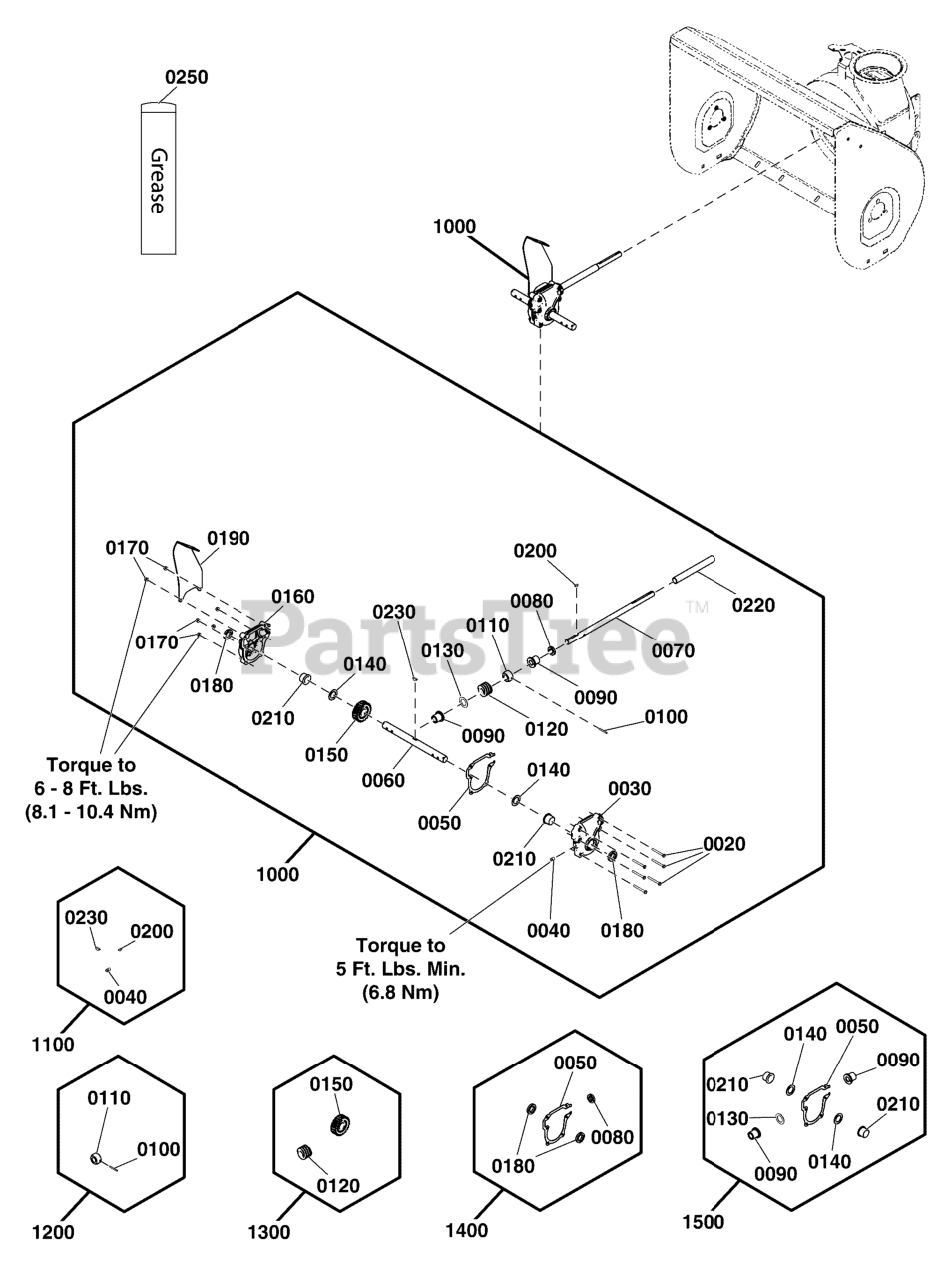

H 1732ES (1696926-00) - Snapper 32" Snow Thrower, 16.5hp Auger Gearbox SERVICE PARTS - 772092 Parts Diagram

32" Snow Thrower, 16.5hp

Auger Gearbox SERVICE PARTS - 772092 Parts Diagram

  • Title

1000

Snapper 772092

KIT, Gearbox

Note: (Incl. Ref. Nos. 0020 - 0230)

$378.99

$

Usually ships in 2-12 days

0

0020

Snapper 704291

CAPSCREW, Hex Head, 1/4-20 X 2 1/4

$5.49

$

Usually ships in 2-12 days

0

0030

GEAR CASE HALF, Left Hand

$

$

Not available

0040

Snapper 1668971SM

TAPERED PIPE PLUG

$4.49

$

Usually ships in 2-12 days

0

0050

Snapper 1612124SM

GASKET

$17.99

$

In Stock, Qty 11

0

0060

Snapper 1732440SM

SHAFT, Auger Cutoff

$53.99

$

Usually ships in 2-12 days

0

0070

SHAFT, Impeller, 17.29" L, HD-ZMO

$

$

Not available

0080

SEAL, OiI

$

$

Not available

0090

Snapper 1612149SM

FLANGE BUSHING

$51.99

$

In Stock, Qty 7

0

0100

Snapper 2836098SM

PIN, Drive Lock

$18.99

$

In Stock, Qty 6

0

0110

Snapper 1612127SM

THRUST COLLAR

$30.99

$

In Stock, only 2 left!

0

0120

WORM, LH Rolled Steel

$

$

Not available

0130

Snapper 2168111SM

WASHER, Thrust

$6.99

$

Usually ships in 2-12 days

0

0140

Snapper 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

0150

GEAR, Worm, Steel

$

$

Not available

0160

GEAR CASE HALF, Right Hand

$

$

Not available

0170

Snapper 703916

NUT, Hex Flange, 1/4-20

$4.99

$

In Stock, only 2 left!

0

0180

SEAL, Oil

$

$

Not available

0190

Snapper 772324

PLATE, Support

$43.99

$

Usually ships in 2-12 days

0

0200

Snapper 703891

KEY, Woodruff, Plain, 3/16 x 5/8

$4.99

$

In Stock, Qty 20+

0

0210

Snapper 1732991SM

BUSHING

$16.99

$

Usually ships in 2-12 days

0

0220

Snapper 1612111SM

TUBE

$21.99

$

In Stock, only 4 left!

0

0230

Snapper 704280

KEY, Woodruff, 1/4 x 3/4

$4.99

$

In Stock, Qty 9

0

0250

GREASE, Brown Lithium Mobilux EP1 (3oz)

$

$

Not available

1100

Snapper 772168

KIT, Plug & Key

Note: (Incl. Ref. Nos. 0040, 0200, 0230)

$3.99

$

Usually ships in 2-12 days

0

0040

Snapper 1668971SM

TAPERED PIPE PLUG

$4.49

$

Usually ships in 2-12 days

0

0200

Snapper 703891

KEY, Woodruff, Plain, 3/16 x 5/8

$4.99

$

In Stock, Qty 20+

0

0230

Snapper 704280

KEY, Woodruff, 1/4 x 3/4

$4.99

$

In Stock, Qty 9

0

1200

Snapper 772218

KIT, Collar & Pin

Note: (Incl. Ref. Nos. 0100, 0110)

$33.99

$

Usually ships in 2-12 days

0

0100

Snapper 2836098SM

PIN, Drive Lock

$18.99

$

In Stock, Qty 6

0

0110

Snapper 1612127SM

THRUST COLLAR

$30.99

$

In Stock, only 2 left!

0

1300

Snapper 706853

KIT, Gears

Note: (Incl. Ref. Nos. 0120, 0150)

$

$

Not available

0120

WORM, LH Rolled Steel

$

$

Not available

0150

GEAR, Worm, Steel

$

$

Not available

1400

Snapper 772164

KIT, Gasket & Seal

Note: (Incl. Ref. Nos. 0050, 0080, 0180)

$27.99

$

Usually ships in 2-12 days

0

0050

Snapper 1612124SM

GASKET

$17.99

$

In Stock, Qty 11

0

0080

SEAL, OiI

$

$

Not available

0180

SEAL, Oil

$

$

Not available

1500

Snapper 772170

KIT, Auger Bushing

Note: (Incl. Ref. Nos. 0050, 0090, 0130, 0140, 0210)

$182.99

$

Usually ships in 2-12 days

0

0050

Snapper 1612124SM

GASKET

$17.99

$

In Stock, Qty 11

0

0090

Snapper 1612149SM

FLANGE BUSHING

$51.99

$

In Stock, Qty 7

0

0130

Snapper 2168111SM

WASHER, Thrust

$6.99

$

Usually ships in 2-12 days

0

0140

Snapper 2118315SM

WASHER, Thrust

$9.99

$

In Stock, Qty 5

0

0210

Snapper 1732991SM

BUSHING

$16.99

$

Usually ships in 2-12 days

0

1000

Snapper 772164

KIT, Gasket & Seal

Note: (Includes Items 0050, 0060, 0180)

$27.99

$

Usually ships in 2-12 days

0

0050

GASKET, Gear Case

$

$

Not available

0060

SEAL, OiI

$

$

Not available

0180

SEAL, Oil

$

$

Not available

2000

Snapper 772170

KIT, Auger Bushing

Note: (Includes Items 0050, 0090, 0130, 0140 & 0210)

$182.99

$

Usually ships in 2-12 days

0

0050

GASKET, Gear Case

$

$

Not available

0090

BUSHING, 3/4 x 1

$

$

Not available

0130

WASHER, Thrust .76 x 1 3/8

$

$

Not available

0140

WASHER, Thrust 1 x 1 5/8

$

$

Not available

0210

BUSHING, 1 x 1 1/4

$

$

Not available

3000

Snapper 772218

KIT, Collar & Pin

Note: Includes Items 0100 & 0110)

$33.99

$

Usually ships in 2-12 days

0

0100

PIN, Drive Lock, 3/16 X 1-1/2

$

$

Not available

0110

COLLAR, Thrust 3/4 x 1 1/2

$

$

Not available

4000

Snapper 772168

KIT, Plug & Key

Note: (Includes Items 0040, 0060 & 0230)

$3.99

$

Usually ships in 2-12 days

0

0040

FITTING, Pipe Plug

$

$

Not available

0200

KEY, 3/16 X 0.625, Woodruff

$

$

Not available

0230

KEY, .25X.75, Woodruff (91)

$

$

Not available
