H 1730E HD (1696706-00) - Snapper 30" Snow Thrower, 16.5hp Handles & Controls Group Parts Diagram

30" Snow Thrower, 16.5hp

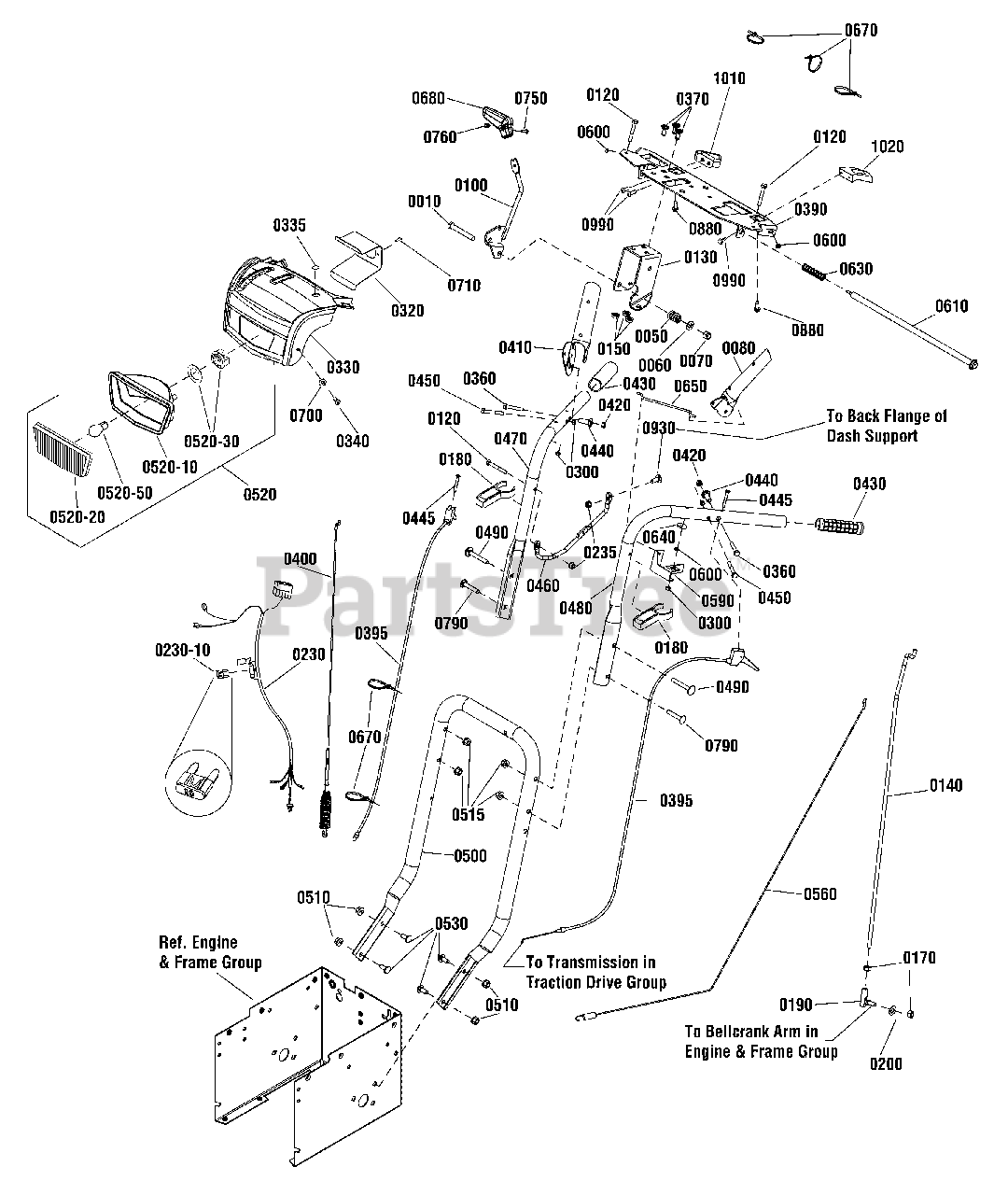

Handles & Controls Group Parts Diagram

  • Title

0010

Snapper 703589

CAPSCREW, Hex Head, 3/8-16 x 2, G5

$4.49

$

In Stock, only 1 left!

0

0050

Snapper 50786MA

SPRING, 3/4

$5.49

$

Usually ships in 2-12 days

0

0060

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 18

0

0070

Snapper 703117

NUT, Hex Lock, ESNA Light, 3/8-16

$3.49

$

In Stock, Qty 20+

0

0080

Snapper 1739782AYP

LEVER, Clutch, LH

$

$

Not available

0100

Snapper 703047

LEVER, Speed

$56.99

$

Usually ships in 2-12 days

0

0120

Snapper 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5

$3.99

$

In Stock, only 1 left!

0

0130

Snapper 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0140

Snapper 1737331YP

ROD, Speed Control

$19.99

$

In Stock, only 1 left!

0

0150

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0170

Snapper 703331

NUT, Hex, 5/16-24

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 1739510YP

BRACKET, Mounting

$14.99

$

Usually ships in 2-12 days

0

0190

Snapper 703224

BALLJOINT

$21.99

$

In Stock, only 2 left!

0

0200

Snapper 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0230

Snapper 1750773YP

HARNESS

$100.99

$

Usually ships in 2-12 days

0

0230-10

* FUSE, Mini, 10 Amp

Note: (Included with Ref. No. 0230)

$

$

Not available

0235

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0300

Snapper 703232

NUT, Hex Lock, ESNA Light, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0320

Snapper 1736305AYP

BRACKET, Light Mount

$31.99

$

Usually ships in 2-12 days

0

0330

Snapper 1753097YP

DASH

$159.99

$

Usually ships in 2-12 days

0

0335

Snapper 1752273YP

PLUG

$3.99

$

Usually ships in 2-12 days

0

0340

Snapper 703062

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8

$4.49

$

In Stock, only 3 left!

0

0360

Snapper 1753529YP

BOLT, Shoulder

$3.99

$

Usually ships in 2-12 days

0

0370

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 18

0

0390

Snapper 1739500AYP

SUPPORT, Dash

$51.99

$

Usually ships in 2-12 days

0

0395

Snapper 1737510YP

CABLE, Steering Control

$33.99

$

Usually ships in 2-12 days

0

0400

Snapper 703221

CABLE, Auger Drive

$24.99

$

In Stock, only 4 left!

0

0410

Snapper 1739783AYP

LEVER, Clutch, RH

$28.99

$

In Stock, only 1 left!

0

0420

Snapper 703412

NUT, Hex Lock, Nylon Insert, 10-24

$4.49

$

In Stock, only 2 left!

0

0430

Snapper 1726317SM

HAND GRIP

$8.49

$

In Stock, only 1 left!

0

0440

Snapper 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0445

Snapper 703134

BOLT, Oval Head, 10-24 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

0450

Snapper 703045

CAPSCREW, Shoulder, 1/4-20 x 1-3/4, GR5

$3.49

$

Usually ships in 2-12 days

0

0460

Snapper 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0470

Snapper 1737531AYP

HANDLE, Upper, RH

$59.99

$

Usually ships in 2-12 days

0

0480

Snapper 1737532AYP

HANDLE, Upper, LH

$53.99

$

Usually ships in 2-12 days

0

0490

Snapper 704421

BOLT, Carriage, Short Neck, 5/16-18 x 2-1/4, G5

$5.49

$

In Stock, only 1 left!

0

0500

Snapper 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0510

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0515

Snapper 703222

NUT, Hex KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0520

Snapper 1736208YP

HEADLIGHT ASSEMBLY

$42.99

$

Usually ships in 2-12 days

0

0520-10

DEFLECTOR

Note: (Included in Ref. No. 0520)

$

$

Not available

0520-20

LENS

Note: (Included in Ref. No. 0520)

$

$

Not available

0520-30

Snapper 1736180YP

SOCKET & GASKET ASSEMBLY, Headlight

Note: (Included in Ref. No. 0520)

$10.99

$

Usually ships in 2-12 days

0

0520-50

* BULB, Light, 12V 15W, 1156

Note: (Included in Ref. No. 0520)

$

$

Not available

0530

Snapper 1737687YP

BOLT, Carriage, 5/16-18 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0560

Snapper 1737511YP

CABLE, Forward Drive

$24.99

$

In Stock, only 1 left!

0

0590

Snapper 1733505ASM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0600

Snapper 703124

SPACER, 1/4 ID x 3/8 OD x 1/8"

$3.99

$

Usually ships in 2-12 days

0

0610

Snapper 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0630

Snapper 2108360SM

SPRING, Compression, 2-1/4"

$5.49

$

In Stock, only 1 left!

0

0640

Snapper 703229

WASHER, 1/4

$4.49

$

In Stock, Qty 7

0

0650

Snapper 1736360YP

ROD, Hold Down

$11.99

$

Usually ships in 2-12 days

0

0670

Snapper 703586

TIE, Self Lock

$4.99

$

Usually ships in 2-12 days

0

0680

Snapper 1733192SM

KNOB, Speed

$8.49

$

Usually ships in 2-12 days

0

0700

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0710

Snapper 316042MA

SCREW, Hex Washer Head, #10 Hi-Lo x 5/8

$4.49

$

Usually ships in 2-12 days

0

0750

Snapper 1960589SM

SCREW, Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0760

Snapper 703412

NUT, Hex Lock, Nylon Insert, 10-24

$4.49

$

In Stock, only 2 left!

0

0790

Snapper 703466

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, G5

$3.99

$

In Stock, Qty 10

0

0880

Snapper 7091081SM

SCREW, 1/4-15X3/4, Self-Tapping, BZ

$4.49

$

In Stock, Qty 12

0

0930

Snapper 703101

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5

$3.99

$

In Stock, only 1 left!

0

0990

Snapper 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

1010

Snapper 1739483AYP

POD, Chute Rotation, RH

$35.99

$

Usually ships in 2-12 days

0

1020

Snapper 1739484AYP

POD, Deflector Control, LH

$

$

Not available
