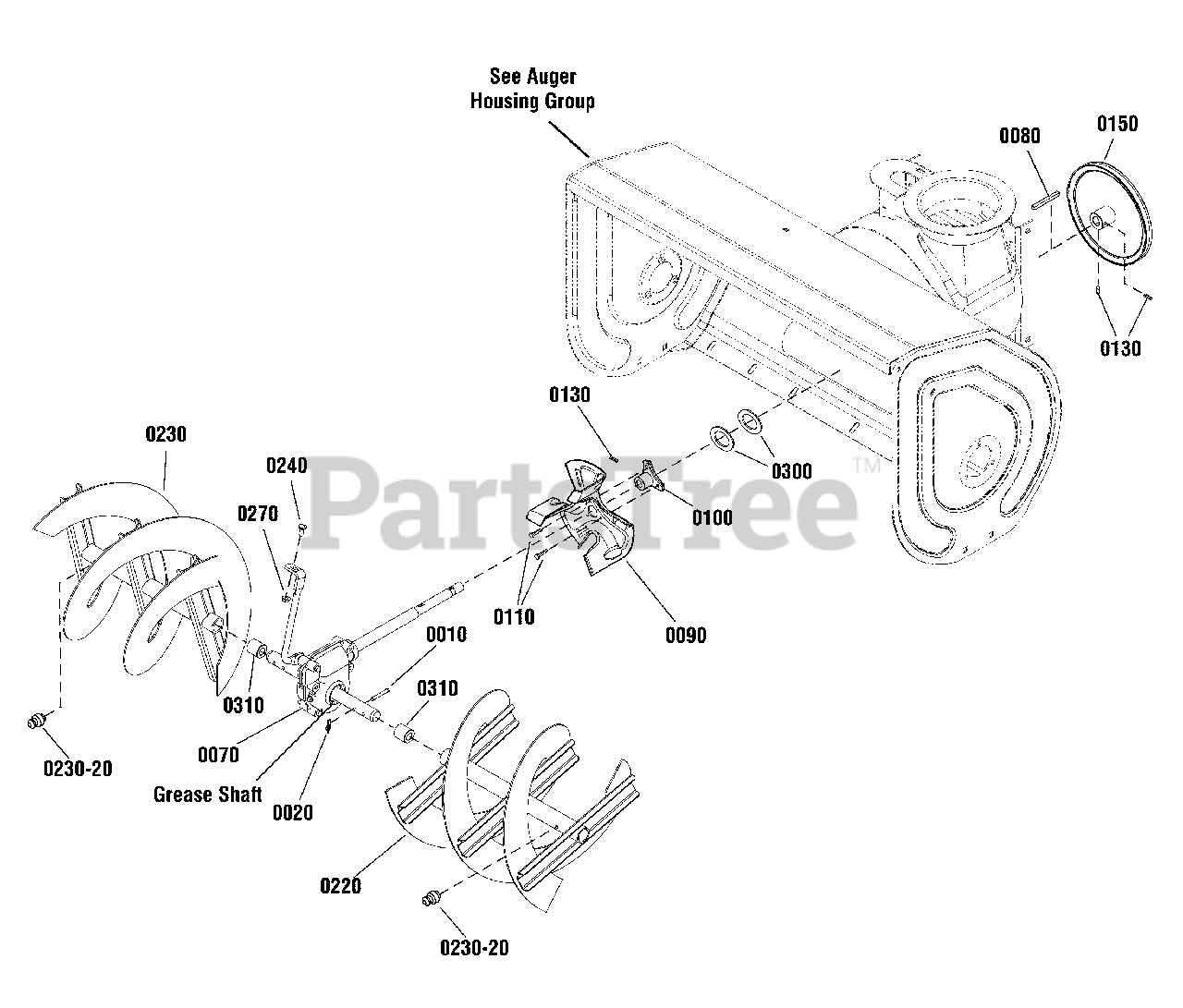

H 1730E HD (1696706-00) - Snapper 30" Snow Thrower, 16.5hp Auger Drive Group Parts Diagram

30" Snow Thrower, 16.5hp

Auger Drive Group Parts Diagram

  • Title

0010

Snapper 1739295YP

PIN, Shear, 1-3/4"
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 1739292YP

PIN, Cotter, Bow Tie, 3/16
(Superseded to 703060)

$4.49

$

In Stock, Qty 12

0

0070

Snapper 1754690YP

GEAR CASE ASSEMBLY
(Superseded to 1687729)

$542.99

$

Usually ships in 2-12 days

0

0080

Snapper 2001022MA

KEY, Square, 3/16 x 3/4

$4.49

$

In Stock, Qty 11

0

0090

Snapper 1739094AYP

IMPELLER
(Superseded to 1687600YP)

$86.99

$

In Stock, Qty 15

0

0100

Snapper 1739073YP

HUB, Impeller

$23.99

$

In Stock, only 4 left!

0

0110

Snapper 1924856SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0130

Snapper 7090848SM

SCREW, Set Square Head 5/16-18 x 1/2

$10.99

$

In Stock, only 1 left!

0

0150

Snapper 1752220YP

PULLEY

$87.99

$

In Stock, only 4 left!

0

0220

Snapper 1737079BJYP

AUGER ASSEMBLY, LH

Note: (Includes Ref. No. 0230-20)

$173.99

$

Usually ships in 2-12 days

0

0230

Snapper 1737078BJYP

AUGER ASSEMBLY, RH

Note: (Includes Ref. No. 0230-20)

$142.99

$

In Stock, only 1 left!

0

0230-20

Snapper 2821133SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0240

Snapper 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0270

Snapper 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Snapper 703151

WASHER, .766 ID X 1.06 OD X .07

$3.49

$

In Stock, Qty 20+

0

0310

Snapper 1733406SM

SPACER, 1" Lg

$5.49

$

In Stock, only 2 left!

0

--

Snapper 1739821YP

KIT, Shear Pin

Note: (Includes Ref. Nos. 0010 & 0020)

$13.99

$

Usually ships in 2-12 days

0
