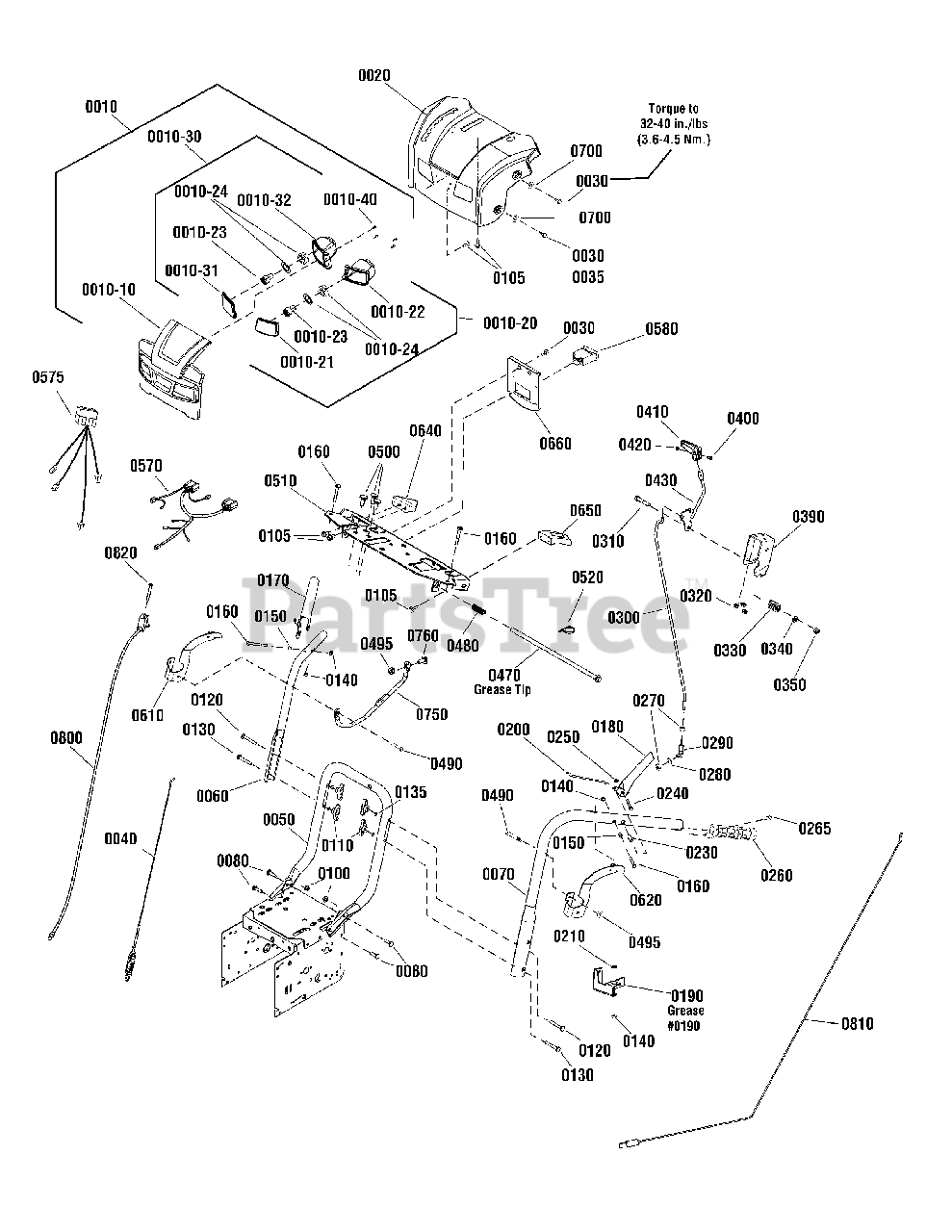

H 1730E (1696178-01) - Snapper 30" Snow Thrower, 16.5hp Handles & Controls Group Parts Diagram

30" Snow Thrower, 16.5hp

Handles & Controls Group Parts Diagram

  • Title

0010

Snapper 1755320

COVER ASSEMBLY, Dash
(Superseded to 1755320YP)

$208.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 1754186

COVER, Dash
(Superseded to 1754186YP)

Note: (Included with Ref. No. 0010)

$85.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 1755318

DEFLECTOR ASSEMBLY, LH
(Superseded to 1755318YP)

Note: (Included with Ref. No. 0010)

$66.99

$

Usually ships in 2-12 days

0

0010-21

LENS, LH

Note: (Included with Ref. No. 0010-10)

$

$

Not available

0010-22

DEFLECTOR, LH

Note: (Included with Ref. No. 0010-10)

$

$

Not available

0010-23

LAMP, LED, 12VAC (1156)

Note: (Included with Ref. No. 0010-10 & 0010-30)

$

$

Not available

0010-24

Snapper 1736180

SOCKET, With Gasket
(Superseded to 1736180YP)

Note: (Included with Ref. No. 0010-10 & 0010-30)

$10.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 1755319

DEFLECTOR ASSEMBLY, RH
(Superseded to 1755319YP)

Note: (Included with Ref. No. 0010)

$74.99

$

Usually ships in 2-12 days

0

0010-31

LENS, RH

Note: (Included with Ref. No. 0010-30)

$

$

Not available

0010-32

DEFLECTOR, RH

Note: (Included with Ref. No. 0010-30)

$

$

Not available

0010-40

Snapper 7091105

SCREW, Hex Washer HEad, #10-16 x 1/2
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

0020

Snapper 1754196D

COVER PANEL, Red
(Superseded to 1754196DYP)

$176.99

$

Usually ships in 2-12 days

0

0030

Snapper 1960556

SCREW, Pan Head Torx, 1/4-20 x 3/4
(Superseded to 1960556SM)

$4.49

$

Usually ships in 2-12 days

0

0040

Snapper 703221

CABLE & SPRING ASSEMBLY

$24.99

$

In Stock, only 4 left!

0

0050

Snapper 1737274A

HANDLE, Lower
(Superseded to 1737274AYP)

$107.99

$

Usually ships in 2-12 days

0

0060

Snapper 1737531A

HANDLE, Upper, RH
(Superseded to 1737531AYP)

$59.99

$

Usually ships in 2-12 days

0

0070

Snapper 1737532A

HANDLE, Upper, LH
(Superseded to 1737532AYP)

$53.99

$

Usually ships in 2-12 days

0

0080

Snapper 1737687

BOLT, Carriage, 5/16-18 x 3/4, GR 5
(Superseded to 1737687YP)

$6.49

$

Usually ships in 2-12 days

0

0100

Snapper 703222

NUT, Hex Keps, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0105

Snapper 7091105

SCREW, Hex Washer Head, #10-16 x 1/2
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

0110

Snapper 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0120

Snapper 703168

BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4

$3.99

$

In Stock, only 1 left!

0

0130

Snapper 703059

BOLT, Carriage, 5/16-18 x 2

$4.49

$

In Stock, Qty 11

0

0135

Snapper 703857

WASHER, Internal Lock, 5/16

$6.49

$

Usually ships in 2-12 days

0

0140

Snapper 703232

NUT, Nylock, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0150

Snapper 703137

SPACER, 1/4 ID x 3/8 OD x .33"

$6.99

$

Usually ships in 2-12 days

0

0160

Snapper 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, GR5

$3.99

$

In Stock, only 1 left!

0

0170

Snapper 1739783A

LEVER, Clutch, RH
(Superseded to 1739783AYP)

$28.99

$

In Stock, only 1 left!

0

0180

Snapper 1739782A

LEVER, Clutch, LH
(Superseded to 1739782AYP)

$

$

Not available

0190

Snapper 1733505BM

BRACKET, Pivot, Free Hand
(Superseded to 1733505BMYP)

$14.99

$

Usually ships in 2-12 days

0

0200

Snapper 1736360

ROD, Hold Down
(Superseded to 1736360YP)

$11.99

$

Usually ships in 2-12 days

0

0210

Snapper 703124

SPACER, 1/4 x .118

$3.99

$

Usually ships in 2-12 days

0

0230

Snapper 703223

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Snapper 1753529

BOLT, Shoulder, 1/4 x 1.45
(Superseded to 1753529YP)

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0260

Snapper 1738124

GRIP, Heated
(Superseded to 770002)

Note: (Used on Domestic Models)

$86.99

$

Usually ships in 2-12 days

0

0260

Snapper 1726317

GRIP
(Superseded to 1726317SM)

Note: (Used on Export models)

$8.49

$

In Stock, only 1 left!

0

0265

Snapper 703044

SCREW, #6-20 X .380, Self-Drill Pan HD, Zinc/Clear

Note: (Was 80003472)

$4.49

$

Usually ships in 2-12 days

0

0270

Snapper 703331

NUT, 5/16-24, GR5

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 703116

WASHER, Splitlock, 5/16

$3.49

$

In Stock, Qty 20+

0

0290

Snapper 703224

BALL JOINT, Quick Release

$21.99

$

In Stock, only 2 left!

0

0300

Snapper 704085

ROD, Speed Control

$22.99

$

Usually ships in 2-12 days

0

0310

Snapper 703589

CAPSCREW, Hex Head, 3/8-16 x 2, GR5

$4.49

$

In Stock, only 1 left!

0

0320

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0330

Snapper 724361

SPRING
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 703590

WASHER, .406

Note: (Was 1918266)

$3.99

$

In Stock, Qty 17

0

0350

Snapper 1919439

NUT, Hex Lock, ESNA, 3/8-16
(Superseded to 703117)

Note: (Was 1919439)

$3.49

$

In Stock, Qty 20+

0

0390

Snapper 1737684

BRACKET, Controls
(Superseded to 1737684YP)

$16.99

$

Usually ships in 2-12 days

0

0400

Snapper 1960589

SCREW, Phillips Head, #10-24 x 3/4
(Superseded to 1960589SM)

$3.99

$

Usually ships in 2-12 days

0

0410

Snapper 1733192

KNOB, Speed
(Superseded to 1733192SM)

$8.49

$

Usually ships in 2-12 days

0

0420

Snapper 703412

NUT, Nylock, #10-24

$4.49

$

In Stock, only 2 left!

0

0430

Snapper 1736836

ROD, Speed
(Superseded to 703047)

$56.99

$

Usually ships in 2-12 days

0

0470

Snapper 1733509

ROD & SPRING ASSEMBLY
(Superseded to 1733509SM)

$81.99

$

Usually ships in 2-12 days

0

0480

Snapper 2108360

SPRING, Compression
(Superseded to 2108360SM)

$5.49

$

In Stock, only 1 left!

0

0490

Snapper 703588

CAPSCREW, Hex Head, 1/4-20 x 1-3/4

$3.99

$

In Stock, only 1 left!

0

0495

Snapper 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0500

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0510

Snapper 1739500BM

SUPPORT, Dash
(Superseded to 1739500BMYP)

$54.99

$

Usually ships in 2-12 days

0

0520

Snapper 7012080

TIE, Cable
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

0570

Snapper 1750773

WIRING HARNESS
(Superseded to 1750773YP)

$100.99

$

Usually ships in 2-12 days

0

0575

Snapper 1752164

WIRING HARNESS, Heated Hand Grip
(Superseded to 1752164YP)

Note: (Used on Domestic Models)

$43.99

$

Usually ships in 2-12 days

0

0580

Snapper 1752242

SWITCH, Heated Hand Grip
(Superseded to 1752242YP)

Note: (Used on Domestic Models)

$36.99

$

In Stock, only 1 left!

0

0610

Snapper 1739663BM

BRACKET, Mounting, RH
(Superseded to 1739663BMYP)

$17.99

$

Usually ships in 2-12 days

0

0620

Snapper 1739664BM

BRACKET, Mounting, LH
(Superseded to 1739664BMYP)

$22.99

$

Usually ships in 2-12 days

0

0640

Snapper 1739483A

POD, Chute Rotation
(Superseded to 1739483AYP)

$35.99

$

Usually ships in 2-12 days

0

0650

Snapper 1739484A

POD, Deflector Control
(Superseded to 1739484AYP)

$

$

Not available

0660

Snapper 1739861

BRACKET, Switch, Heated Hand Grip
(Superseded to 1739861AYP)

Note: (Used on Domestic Models)

$19.99

$

Usually ships in 2-12 days

0

0700

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0750

Snapper 1737552

BRACE
(Superseded to 1737552YP)

$22.99

$

In Stock, only 1 left!

0

0760

Snapper 703575

BOLT,1/4-20X0.750,GR5,CRRG,SQ,ZINC/CLEAR

$3.99

$

In Stock, only 2 left!

0

0800

Snapper 1737510

CABLE, STEERING CONTROL
(Superseded to 1737510YP)

$33.99

$

Usually ships in 2-12 days

0

0810

Snapper 1737511

CABLE, TRACTION DRIVE
(Superseded to 1737511YP)

$24.99

$

In Stock, only 1 left!

0

0820

Snapper 703134

BOLT, 10-24 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0
