H 1730 E (1696238-00) - Simplicity 30" Snow Thrower, 16.5hp Traction Drive Group - General Transmission Parts Diagram

30" Snow Thrower, 16.5hp

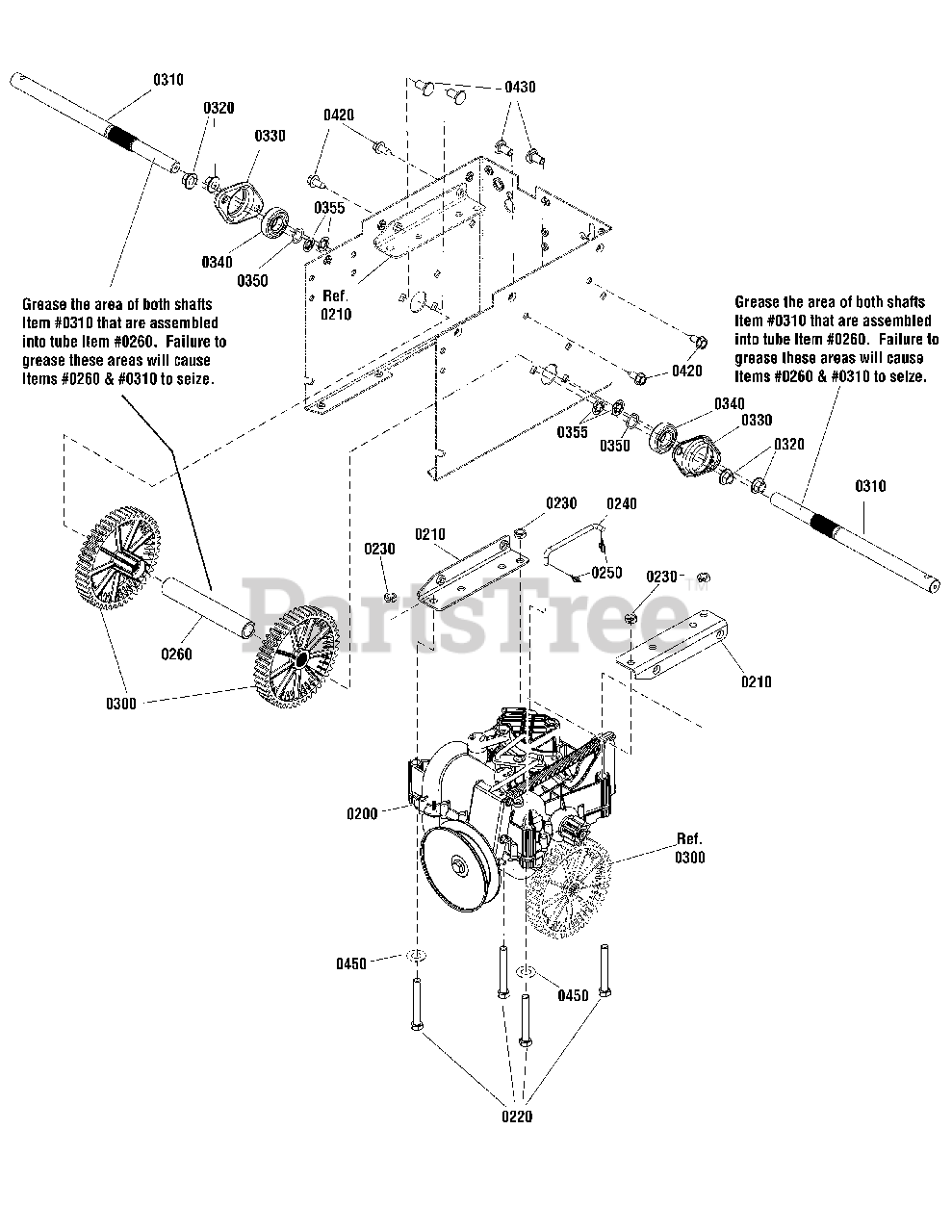

Traction Drive Group - General Transmission Parts Diagram

  • Title

0200

Simplicity 1733972YP

TRANSMISSION, General Transmission H2

$535.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1737267AYP

BRACKET

$20.99

$

Usually ships in 2-12 days

0

0220

Simplicity 7091557SM

CAPSCREW, Hex Head, 3/8C x 2-3/4 GR5
(Superseded to 703133)

$3.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1960251SM

NUT, Hex Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0240

Simplicity 1737330YP

ROD, Speed Select

$14.99

$

Usually ships in 2-12 days

0

0250

Simplicity 7023590SM

COTTER PIN, 1/4" Self Locking

$3.99

$

In Stock, Qty 20+

0

0260

Simplicity 1737310YP

TUBE, Support

$26.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1737311YP

GEAR, Drive

$23.99

$

In Stock, Qty 9

0

0310

Simplicity 1737309YP

AXLE

$56.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1928352SM

NUT, Hex Flange, Whiz Lock Large, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0330

Simplicity 1736396YP

RETAINER, Bearing

$10.99

$

In Stock, Qty 6

0

0340

Simplicity 53263MA

BEARING, Ball

$38.99

$

In Stock, only 2 left!

0

0350

Simplicity 1737742YP

RING, Retaining

$4.99

$

In Stock, only 2 left!

0

0355

Simplicity 7013847YP

RETAINER, Bolt 3/8"
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

0420

Simplicity 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 X 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0430

Simplicity 1737686YP

BOLT, Carriage, FH GR 5, 3/8-16 x 3/4

$6.49

$

In Stock, only 1 left!

0

0450

Simplicity 703184

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0
