H 1728 E (1696951-00) - Briggs & Stratton 28" Snow Thrower, 6.5 Gross TP (2020) Handles Group Parts Diagram

28" Snow Thrower, 6.5 Gross TP

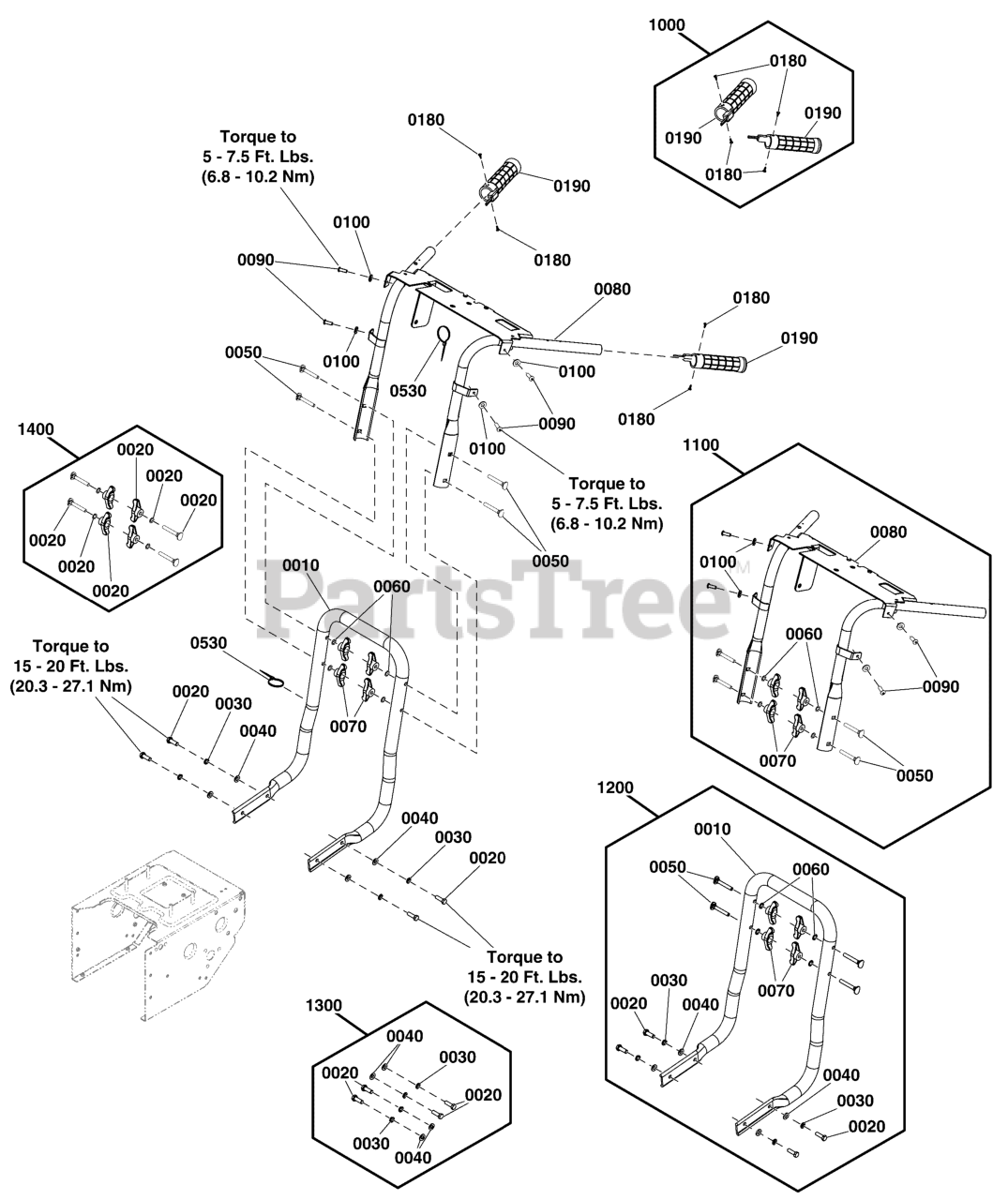

Handles Group Parts Diagram

  • Title

0530

Murray 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

1000

Murray 770769

KIT, Grip, Handle

Note: (Incl. Ref. Nos. 0180, 0190)

$43.99

$

In Stock, only 1 left!

0

0180

Murray 703044

SCREW

$4.49

$

Usually ships in 2-12 days

0

0190

HAND GRIP, Heated, 60W

$

$

Not available

1100

Murray 84004008

KIT, Upper Handle

Note: (Incl. Ref. Nos. 0050, 0060, 0070, 0080, 0090, 0100)

$146.99

$

Usually ships in 2-12 days

0

0050

Murray 703168

BOLT, 5/16-18 x 2-1/4, Carriage, Curved Head

$3.99

$

In Stock, only 4 left!

0

0060

Murray 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0070

Murray 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

0080

WELDMENT, Upper Handle, Black

$

$

Not available

0090

Murray 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 71067MA

WASHER, 1/4, Flat, GR5 Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

1200

Murray 772108

KIT, Lower Handle

Note: (Incl. Ref. Nos. 0010, 0020, 0030, 0040, 0050, 0060, 0070)

$48.99

$

Usually ships in 2-12 days

0

0010

HANDLE, Lower, Black

$

$

Not available

0020

Murray 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4, GR5

$3.99

$

In Stock, Qty 9

0

0030

Murray 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0040

Murray 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0050

Murray 703168

BOLT, 5/16-18 x 2-1/4, Carriage, Curved Head

$3.99

$

In Stock, only 4 left!

0

0060

Murray 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0070

Murray 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0

1300

Murray 772110

KIT, Lower Handle Attachment Hardware

Note: (Incl. Ref. Nos. 0020, 0030, 0040)

$4.49

$

Usually ships in 2-12 days

0

0020

Murray 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4, GR5

$3.99

$

In Stock, Qty 9

0

0030

Murray 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0040

Murray 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

1400

Murray 772109

KIT, Handle Wing Nut Hdwe, Upper/Lower

Note: (Incl. Ref. Nos. 0050, 0060, 0070)

$11.99

$

Usually ships in 2-12 days

0

0050

Murray 703168

BOLT, 5/16-18 x 2-1/4, Carriage, Curved Head

$3.99

$

In Stock, only 4 left!

0

0060

Murray 703587

WASHER, 5/16, Internal Lock, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0070

Murray 703065

KNOB, Wing, 5/16-18

$6.99

$

In Stock, Qty 20+

0
