H 1728 E (1696951-00) - Briggs & Stratton 28" Snow Thrower, 6.5 Gross TP (2020) Controls Group Parts Diagram

28" Snow Thrower, 6.5 Gross TP

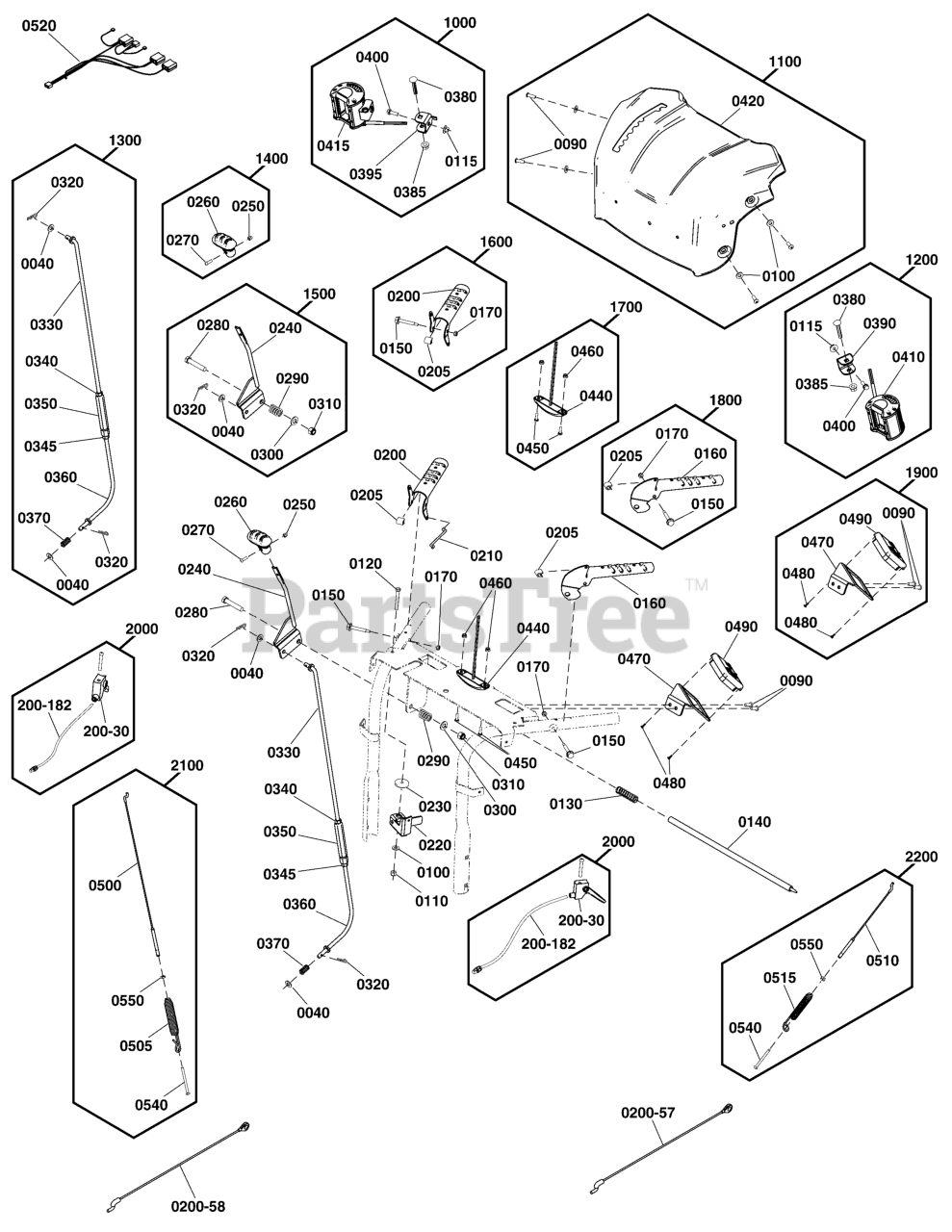

Controls Group Parts Diagram

  • Title

0120

HHCS 1/4-20X2.000 GR5 ZINC/CLEAR

$

$

Not available

0130

Murray 2108360SM

SPRING, Compression, 2-1/4"

$5.49

$

In Stock, only 1 left!

0

0140

Murray 1733509SM

ROD & SPRING ASSEMBLY

$81.99

$

Usually ships in 2-12 days

0

0200-57

Murray 84005055

CABLE, Auger Drive

$30.99

$

Usually ships in 2-12 days

0

0200-58

Murray 84005056

CABLE, Traction Drive

$11.99

$

Usually ships in 2-12 days

0

0210

ROD, Hold Down

$

$

Not available

0520

Murray 772130

HARNESS, Wiring

$101.99

$

Usually ships in 2-12 days

0

1000

Murray 772103

KIT, RH LED Light

Note: (Incl. Ref. Nos. 0115, 0380, 0385, 0395, 0400, 0415)

$74.99

$

Usually ships in 2-12 days

0

0115

NUT, Hex Flange Whiz, 1/4-20

$

$

Not available

0380

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck

$

$

Not available

0385

NUT, 5/16-18 Hex Flange Nyloc

$

$

Not available

0395

BRACKET, Light, RH, HD, Black

$

$

Not available

0400

SCREW, 1/4-20 X .750, Hex Washer Head TT, GR5, ZC/CL

$

$

Not available

0415

ASSEMBLY, Headlight, LED, RH

$

$

Not available

1100

Murray 772104

KIT, Panel Cover, Orange

Note: (Incl. Ref. Nos. 0090, 0100, 0420)

$179.99

$

Usually ships in 2-12 days

0

1100

Murray 772191

KIT, DASH PANEL

$170.99

$

Usually ships in 2-12 days

0

0090

Murray 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0100

WASHER .281X.630X.065 FLAT ZINC/CLEAR

$

$

Not available

0420

Murray 80026612DG

COVER, Panel, Charcoal

$

$

Currently unavailable

1200

Murray 772102

KIT, LH LED Light

Note: (Incl. Ref. Nos. 0115, 0380, 0385, 0390, 0400, 0410)

$69.99

$

Usually ships in 2-12 days

0

0115

NUT, Hex Flange Whiz, 1/4-20

$

$

Not available

0380

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck

$

$

Not available

0385

NUT, 5/16-18 Hex Flange Nyloc

$

$

Not available

0390

BRACKET, Light, LH, HD, Black

$

$

Not available

0400

SCREW, 1/4-20 X .750, Hex Washer Head TT, GR5, ZC/CL

$

$

Not available

0410

ASSEMBLY, Headlight, LED, LH

$

$

Not available

1300

Murray 772111

KIT, Speed Rod

Note: (Incl. Ref. Nos. 0040, 0320, 0330, 0340, 0345, 0350, 0360, 0370)

$56.99

$

Usually ships in 2-12 days

0

0040

Murray 80004405YP

WASHER, 5/16, SAE Flat, Zinc/Clear

$

$

Currently unavailable

0320

HAIRPIN.080 WIRE 1.19LG.25DIA,ZINC/CLEAR

$

$

Not available

0330

ROD, Speed, Upper, HD

$

$

Not available

0340

Murray 80002725YP

NUT, 5/16-18, GR5, Zinc/Clear

$

$

Not available

0345

NUT, 5/16-18 LH, Hex, GR 2, ZC/BLK

$

$

Not available

0350

ADJUSTER, Shift, Hex, HD

$

$

Not available

0360

ROD, Speed, Lower, HD

$

$

Not available

0370

SPRING, Shift Linkage, Lower, HD

$

$

Not available

1400

Murray 770833

KIT, Knob, Lever

Note: (Incl. Ref. Nos. 0250, 0260, 0270)

$17.99

$

Usually ships in 2-12 days

0

0250

NUT, Acorn, M5

$

$

Not available

0260

KNOB, Slot Speed

$

$

Not available

0260

KNOB, Slot Speed

$

$

Not available

0270

SCREW, Phillips Head, M5

$

$

Not available

1500

Murray 772112

KIT, Speed Lever

Note: (Incl. Ref. Nos. 0040, 0240, 0280, 0290, 0300, 0310, 0320)

$28.99

$

Usually ships in 2-12 days

0

0040

Murray 80004405YP

WASHER, 5/16, SAE Flat, Zinc/Clear

$

$

Currently unavailable

0240

WELDMENT, Speed Lever, CL/ZC

$

$

Not available

0280

Murray 80003522YP

CAPSCREW, 3/8-16 x 2, Hex Head, GR5, Zinc/Clear
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0290

SPRING, Compression

$

$

Not available

0300

Murray 80003536YP

WASHER, .406, Flat, Zinc/Clear

$

$

Currently unavailable

0310

NUT 3/8-16 GR5 HEXNYL ZINC/CLR

$

$

Not available

0320

HAIRPIN.080 WIRE 1.19LG.25DIA,ZINC/CLEAR

$

$

Not available

1600

Murray 772107

KIT, RH Clutch Lever

Note: (Incl. Ref. Nos. 0150, 0170, 0200, 0205)

$13.99

$

Usually ships in 2-12 days

0

0150

Murray 1753529YP

SCREW, Hex Washer Head, Shoulder 1/4-20

$3.99

$

Usually ships in 2-12 days

0

0170

NUT, Hex Lock 10-24 w/Nylon Insert

$

$

Not available

0200

LEVER, Clutch, RH, Black

$

$

Not available

0205

TRIM, Edge, 0.05 FT

$

$

Not available

1700

Murray 772084

KIT, Amber Courtesy Light

Note: (Incl. Ref. Nos. 0440, 0450, 0460)

$19.99

$

Usually ships in 2-12 days

0

0440

ASSEMBLY, Amber Courtesy Light, LED

$

$

Not available

0450

SCREW, #10-24 X 0.625, PAN HEAD, TORX 25

$

$

Not available

0460

NUT, Hex Lock 10-24 w/Nylon Insert

$

$

Not available

1800

Murray 772106

KIT, LH Clutch Lever

Note: (Incl. Ref. Nos. 0150, 0160, 0170, 0205)

$14.99

$

Usually ships in 2-12 days

0

0150

Murray 1753529YP

SCREW, Hex Washer Head, Shoulder 1/4-20

$3.99

$

Usually ships in 2-12 days

0

0160

LEVER, Clutch, LH, Black

$

$

Not available

0170

NUT, Hex Lock 10-24 w/Nylon Insert

$

$

Not available

0205

TRIM, Edge, 0.05 FT

$

$

Not available

1900

Murray 772114

KIT, Echute Switch LH

Note: (Incl. Ref. Nos. 0090, 0470, 0480, 0490)

$140.99

$

Usually ships in 2-12 days

0

0090

Murray 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0470

BRACKET, Switch, HD, Black

$

$

Not available

0480

SCREW, #6-19 X .375 Plastite 48-2 Thread

$

$

Not available

0490

ECHUTE SWITCH, LH

$

$

Not available

2000

Murray 771703

CABLE, Steering

Note: (Incl. Ref. Nos. 200-30, 200-182)

$19.99

$

Usually ships in 2-12 days

0

200-30

LEVER, Steering Control Assembly

$

$

Not available

200-182

CABLE, Clutch

$

$

Not available

2100

Murray 772128

KIT, Traction Cable, RH

Note: (Incl. Ref. Nos. 0500, 0505, 0540, 0550)

$22.99

$

Usually ships in 2-12 days

0

0500

ASSEMBLY, Cable, Traction, RH, HD

$

$

Not available

0505

SPRING, Traction Drive, RH, HD

$

$

Not available

0540

SCREW, 10-24 X 2.5, Oval Head, ZC/CL

$

$

Not available

0550

NUT, 10-24, Hex, CL/ZC

$

$

Not available

2200

Murray 772129

KIT, Auger-Impeller Cable, LH

Note: (Incl. Ref. Nos. 0510, 0515, 0540, 0550)

$24.99

$

Usually ships in 2-12 days

0

0510

ASSEMBLY, Cable, Auger-Impeller, LH, HD

$

$

Not available

0515

SPRING, , Auger-Impeller Drive, LH, HD

$

$

Not available

0540

SCREW, 10-24 X 2.5, Oval Head, ZC/CL

$

$

Not available

0550

NUT, 10-24, Hex, CL/ZC

$

$

Not available
