H 1728 E (1696951-00) - Briggs & Stratton 28" Snow Thrower, 6.5 Gross TP (2020) Auger Drive Group Parts Diagram

28" Snow Thrower, 6.5 Gross TP

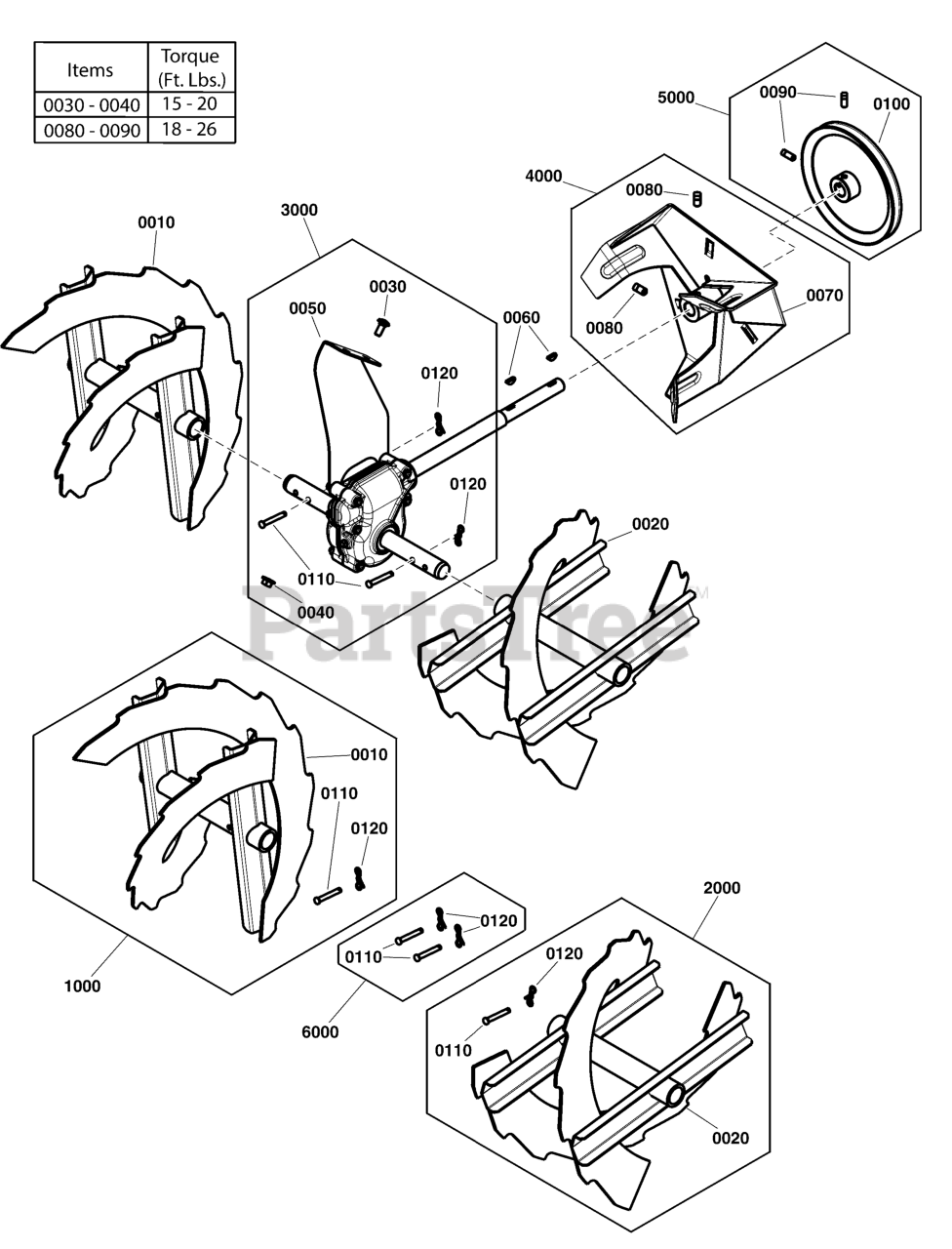

Auger Drive Group Parts Diagram

  • Title
1000

Murray 772087

KIT, 32" Auger RH

Note: (Incl. Ref. Nos. 0010, 0110, 0120)

$304.99

$

Usually ships in 2-12 days

0

0010

WELDMENT, Auger, 32", RH, Black

$

$

Not available

0110

Murray 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Murray 703060

PIN, Cotter, Bow Tie, 3/16

$4.49

$

In Stock, Qty 12

0

2000

Murray 772088

KIT, 32" Auger LH

Note: (Incl. Ref. Nos. 0020, 0110, 0120)

$304.99

$

Usually ships in 2-12 days

0

0020

WELDMENT, Auger, 32", LH, Black

$

$

Not available

0110

Murray 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Murray 703060

PIN, Cotter, Bow Tie, 3/16

$4.49

$

In Stock, Qty 12

0

3000

Murray 772092

KIT, Gearbox

Note: (Incl. Ref. Nos. 0030, 0040, 0050, 0060)

$378.99

$

Usually ships in 2-12 days

0

0030

Murray 703159

BOLT, Carriage, 5/16-18 x 5/8, G5

$3.99

$

In Stock, Qty 19

0

0040

Murray 703222

NUT, Hex, KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0050

GEARBOX ASSY, HD-ZMO

$

$

Not available

0060

Murray 703891

KEY, Woodruff, Plain, 3/16 x 5/8

$4.99

$

In Stock, Qty 20+

0

4000

Murray 772090

KIT, Impeller

Note: (Incl. Ref. Nos. 0070, 0080, 0090)

$73.99

$

Usually ships in 2-12 days

0

0070

WELDMENT, Impeller, Black

$

$

Not available

0080

Murray 1960474SM

SETSCREW, Square Head, 3/8-16 x 1/2, G8

$5.99

$

In Stock, Qty 7

0

0090

Murray 1930540SM

SCREW, Set Square Head Cup Point, 5/16-18X 5/8, G8

$4.49

$

In Stock, Qty 11

0

5000

Murray 772105

KIT, Auger Pulley 7.25"

Note: (Incl. Ref. Nos. 0090, 0100)

$46.99

$

Usually ships in 2-12 days

0

0090

Murray 1930540SM

SCREW, Set Square Head Cup Point, 5/16-18X 5/8, G8

$4.49

$

In Stock, Qty 11

0

0100

PULLEY, Impeller, 7.250 OD, HD

$

$

Not available

6000

Murray 1750790YP

SHEAR PIN KIT, 1038

Note: (Incl. Ref. Nos. 0110, 0120)

$5.99

$

In Stock, Qty 20+

0

0110

Murray 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Murray 703060

PIN, Cotter, Bow Tie, 3/16

$4.49

$

In Stock, Qty 12

0
