H 1728 E (1696921-00) - Simplicity 28" Snow Thrower, 16.5hp Engine & Frame Group Parts Diagram

28" Snow Thrower, 16.5hp

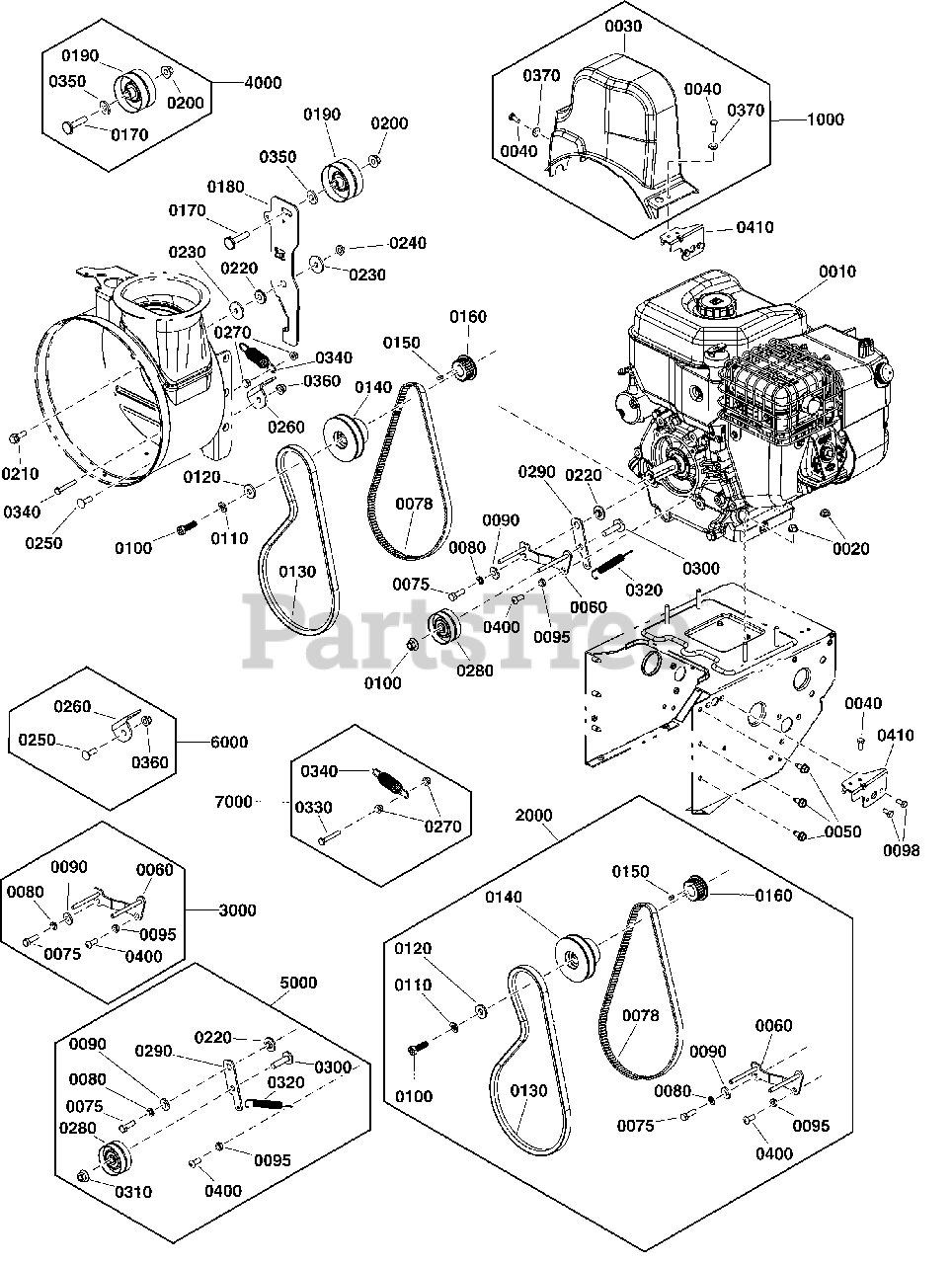

Engine & Frame Group Parts Diagram

  • Title

0010

Simplicity 25D137-0002-F1

* ENGINE, 16.5TP Briggs & Stratton, Domestic

$

$

Not available

0020

Simplicity 703330

NUT, Hex Flange Whiz-Lock, 5/16-18

$4.99

$

In Stock, Qty 14

0

0050

Simplicity 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

1000

Simplicity 772095

KIT, Belt Cover
(Superseded to 84005786)

Note: (Incl. Ref. Nos. 0030, 0040, 0370)

$37.99

$

Usually ships in 2-12 days

0

0030

COVER, Belt

$

$

Not available

0040

Simplicity 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0370

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

2000

Simplicity 772137

KIT, Belt, Guide & Pulley

Note: (Incl. Ref. Nos. 0060, 0075, 0078, 0080, 0090, 0095, 0100, 0110, 0120, 0130, 0140, 0150, 0160, 0400)

$101.99

$

Usually ships in 2-12 days

0

3000

Simplicity 772138

KIT, Belt Guide

Note: (Incl. Ref. Nos. 0060, 0075, 0080, 0090, 0095)

$39.99

$

Usually ships in 2-12 days

0

0060

WELDMENT, Belt Guide, Upper, HD, Black

$

$

Not available

0075

Simplicity 703301

BOLT, Hex, 5/16-24 x 1.

$3.99

$

In Stock, only 2 left!

0

0078

Simplicity 770799

BELT, Traction Drive

$28.99

$

In Stock, only 4 left!

0

0080

Simplicity 703116

WASHER, Split Lock, .32 x .58 x .08

Note: in 772089

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

Note: in 772089

$4.49

$

In Stock, only 1 left!

0

0095

NUT, 5/16-24 Hex Jam Centerlock, GR A, ZC/CL

$

$

Not available

0100

Simplicity 703165

HHCS

$3.99

$

Usually ships in 2-12 days

0

0110

Simplicity 703454

LOCKWASHER, Spring, 3/8

$3.49

$

In Stock, Qty 15

0

0120

Simplicity 704128

WASHER, Flat

$4.99

$

In Stock, Qty 9

0

0130

Simplicity 772119

BELT, A/HA, 36.3 Eff. Length, HD

$38.99

$

In Stock, only 2 left!

0

0140

PULLEY, Auger Impeller Drive, HD-ZMO

Note: in 772137

$

$

Not available

0150

KEY, 3/16 X .375, Square Undersized

Note: in 772137

$

$

Not available

0160

PULLEY, Drive

Note: in 772137 & 770818

$

$

Not available

0400

SCREW, 5/16-24X.75, BUTTON HD, BLACK OXI

$

$

Not available

0170

Simplicity 706503

SCREW, Hex Head, 3/8-16 x 1-3/4

$4.49

$

Usually ships in 2-12 days

0

0180

Simplicity 772120

BRACKET, Tensioner, Auger-Impeller, HD

$45.99

$

Usually ships in 2-12 days

0

4000

Simplicity 772094

KIT, Idler Pulley

Note: (Incl. Ref. Nos. 0170, 0190, 0200, 0350)

$27.99

$

Usually ships in 2-12 days

0

0170

Simplicity 706503

SCREW, Hex Head, 3/8-16 x 1-3/4

$4.49

$

Usually ships in 2-12 days

0

0190

PULLEY, 2.75 OD, Idler

$

$

Not available

0200

Simplicity 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

Note: in 772089

$6.99

$

In Stock, Qty 20+

0

0350

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

5000

Simplicity 772089

KIT, Drive Idler Pulley

Note: (Incl. Ref. Nos. 0075, 0080, 0090, 0095, 0220, 0280, 0290, 0300, 0310, 0320, 0400)

$29.99

$

Usually ships in 2-12 days

0

0075

Simplicity 703301

BOLT, Hex, 5/16-24 x 1.

$3.99

$

In Stock, only 2 left!

0

0080

Simplicity 703116

WASHER, Split Lock, .32 x .58 x .08

Note: in 772089

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

Note: in 772089

$4.49

$

In Stock, only 1 left!

0

0095

NUT, 5/16-24 Hex Jam Centerlock, GR A, ZC/CL

$

$

Not available

0220

Simplicity 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0280

PULLEY, Idler, 2.25 OD

Note: in 772089

$

$

Not available

0290

BRACKET, Idler

Note: in 772089

$

$

Not available

0300

SCREW-HEX HD 3/8-16X1.500 .141TH HD ZC/C

Note: in 772089

$

$

Not available

0310

NUT, 3/8-16 Hex Flange Center Lock, Zinc Plated

$

$

Not available

0320

SPRING, Traction Drive Idler, 3.654" LG

Note: in 772089

$

$

Not available

0400

SCREW, 5/16-24X.75, BUTTON HD, BLACK OXI

$

$

Not available

0210

Simplicity 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0230

Simplicity 1933468SM

WASHER, 5/16 x 1-1/4 OD

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 704067

NUT, 5/16-18, Hex Flange, Center Lock

$3.99

$

In Stock, Qty 20+

0

6000

Simplicity 772097

KIT, Belt Guide

Note: (Incl. Ref. Nos. 0250, 0260, 0360)

$8.49

$

Usually ships in 2-12 days

0

0250

Simplicity 703483

BOLT, Carriage, 5/16-18 X 1, GR5

$3.99

$

In Stock, only 1 left!

0

0260

Simplicity 772097

KIT, Belt Guide

$8.49

$

Usually ships in 2-12 days

0

0360

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

7000

Simplicity 772096

KIT, Idler Spring

Note: (Incl. Ref. Nos. 0270, 0330, 0340)

$6.99

$

Usually ships in 2-12 days

0

0270

Simplicity 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

0330

Simplicity 703057

CAPSCREW, Hex Head, 1/4-20 x 1-3/4

$5.99

$

In Stock, only 3 left!

0

0340

Simplicity 772096

KIT, Idler Spring

$6.99

$

Usually ships in 2-12 days

0

0350

Simplicity 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0360

Simplicity 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0410

BRACKET, Cable Guide

$

$

Not available
