H 1548 (55AE332S150) - Cub Cadet Walk-Behind Mower (2003) Kawasaki Engine Assembly Parts Diagram

Walk-Behind Mower

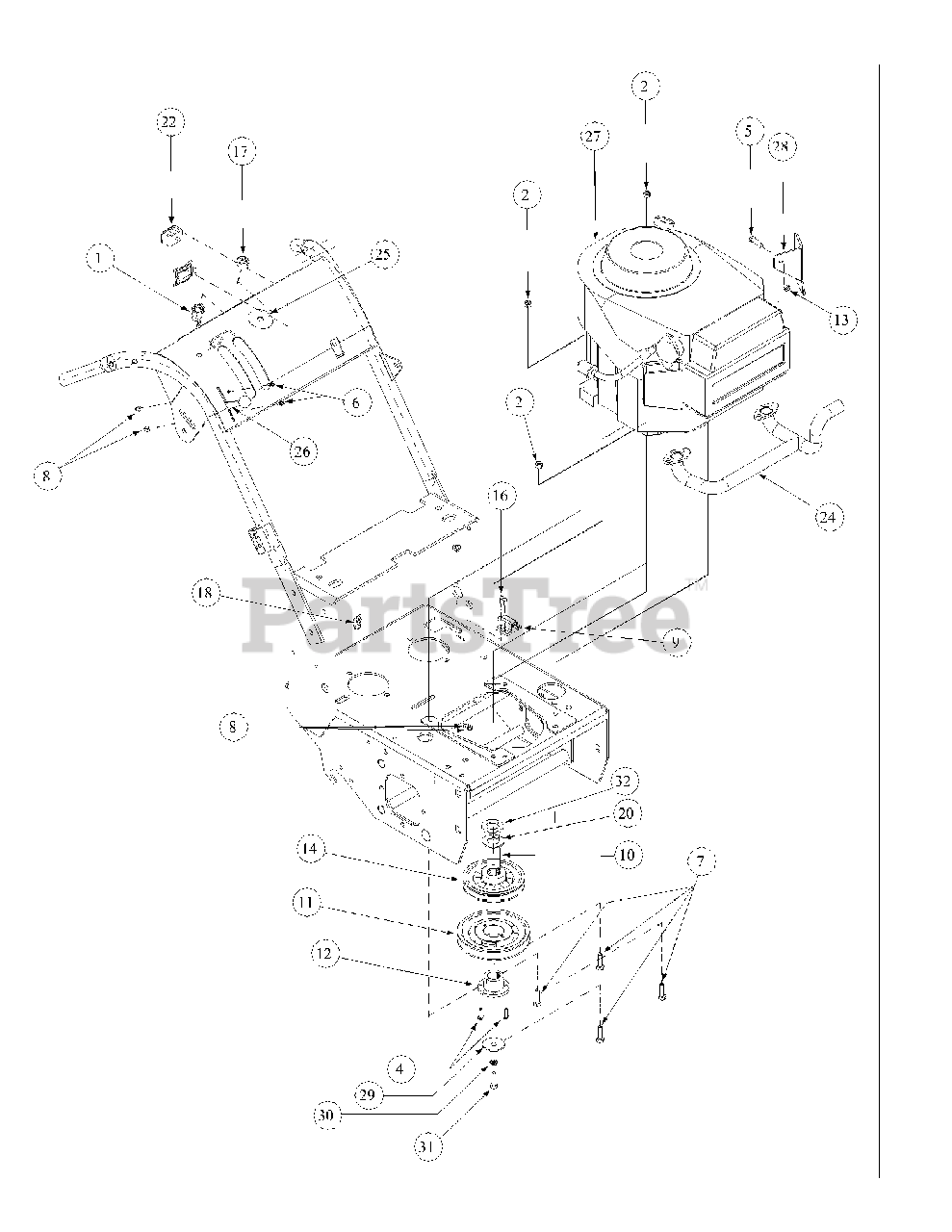

Kawasaki Engine Assembly Parts Diagram

  • Title
1

Cub Cadet 00010943P

On/Off Ignition Switch

$

$

Not available

2

Cub Cadet 00012165

Nylock Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

5

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00013669

Slotted Hex Washer Screw, 10-32 x 1/2

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00014608

Lock Nut, Nylon Insert, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

9

Cub Cadet 00018324

Delta Switch, N.C.

$

$

Not available

10

Cub Cadet 01007533

Key Stock, 1/4 x 1/4 x 2.75

$11.99

$

In Stock, only 1 left!

0

11

Cub Cadet 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

12

$

$

Not available

13

Cub Cadet 00022547

Hex Nut, Center Lock, 5/16-18

$

$

Not available

14

Cub Cadet 01007339

Cast Pulley with 1" Bore

$95.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 00030906

Phil. He. Mach. Screw #10-32 x 5/8

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 00032097

Nut w/Cap, 5/8-32 Ignition
(Superseded to 00032097P)

$

$

Not available

18

Cub Cadet 00060807

Support Clamp, 3/8 OD

$

$

Not available

19

Cub Cadet 00062980

Harness Wire

$

$

Not available

20

Cub Cadet 00072586

Flat Washer
(Superseded to 736-0250)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 925-04893

Hour Meter
(Superseded to 925-04893A)

$165.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01006815

Harness Hourmeter

$

$

Not available

24

Cub Cadet 01001993

Kawasaki Manifold

$

$

Not available

25

Cub Cadet 01002006

Decal, Pull Start Overlay

$

$

Not available

26

Cub Cadet 01004051P

Throttle Control w/Detent, 57.25

$

$

Not available

27

Cub Cadet 01003612

Kawasaki Engine, 15HP

$

$

Not available

28

Cub Cadet 01000192

Muffler Kawasaki Bracket

$

$

Not available

29

Cub Cadet 00013675

Clutch Washer

$9.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 00012195

Lock Washer, 7/16

$

$

Not available

31

Cub Cadet 01002884

Capscrew, 7/16-20 x 1-1/4

$

$

Not available

32

Cub Cadet 00073094

Spacer Pulley Engine

$14.99

$

Usually ships in 3-6 days

0
