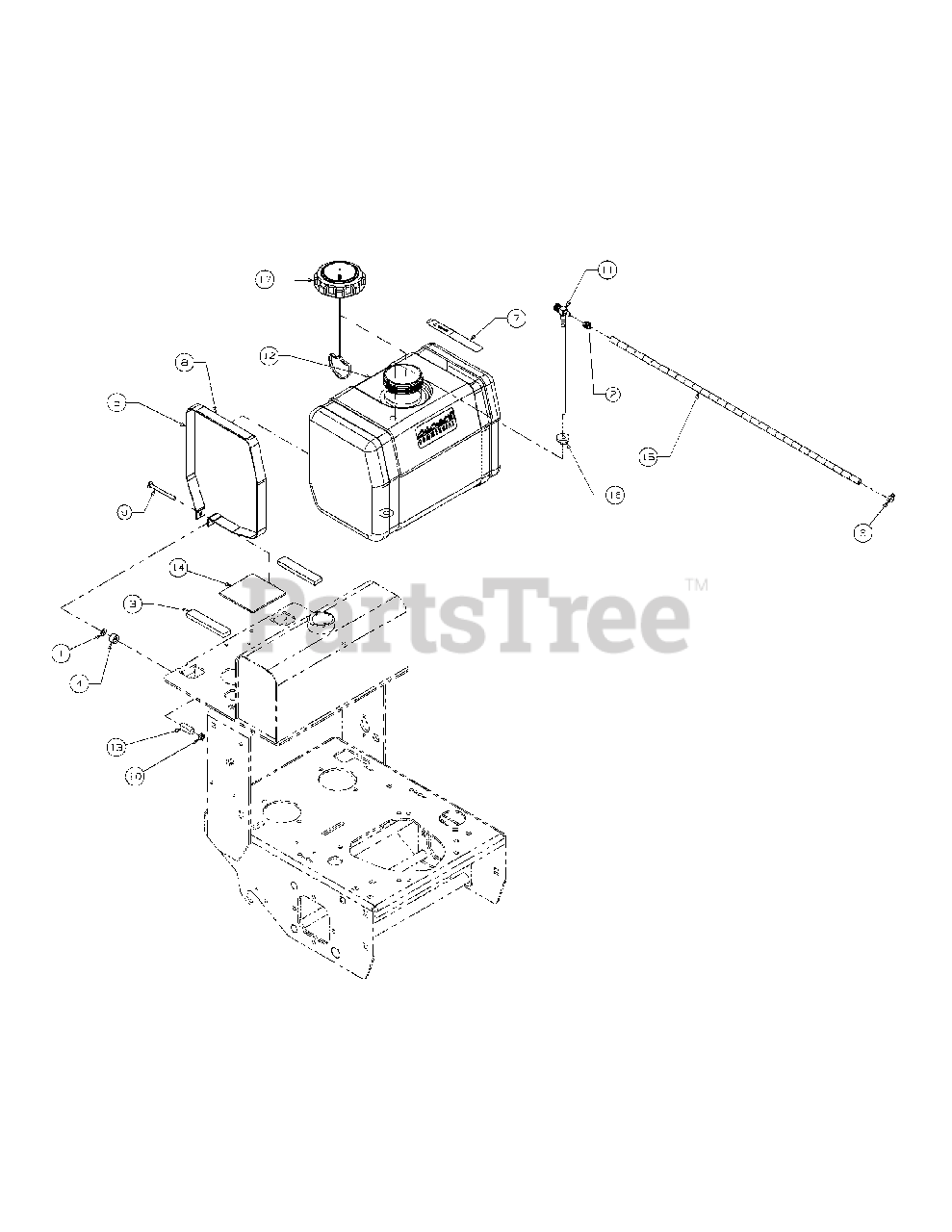

H 1536 (55AI4HPR050) - Cub Cadet Walk-Behind Mower Tank Assembly Parts Diagram

Walk-Behind Mower

Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 00012169

Flat Washer, SAE 5/16

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 00012235

Uni-Clamp
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet 00021407

Stop Pad, Rubber

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 00021941

Spacer

$

$

Not available

5

Cub Cadet 01001023

Fuel Tank Strap

$56.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01000215

Hose Clamp, 1/4-5/8, SS

$

$

Not available

7

Cub Cadet 01001036

Mower Warning Label, Turn off Engine

$

$

Not available

8

Cub Cadet 01001038

Mower Instruction Label, Fuel Valve

$

$

Not available

9

Cub Cadet 01002509

Carriage Bolt, 1/4-20 x 3.00

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 912-3027

Lock Nut, 1/4-20, Hex Flange Lock

$4.49

$

In Stock, Qty 17

0

11

Cub Cadet 01007425

Shutoff Valve
(Superseded to 751-12478)

$52.99

$

In Stock, only 2 left!

0

12

Cub Cadet 01008857

Fuel Tank

$

$

Not available

13

Cub Cadet 01009333

Compression Spring, .625 OD x .390 ID
(Superseded to 732-3065)

$3.99

$

In Stock, only 1 left!

0

14

Cub Cadet 02000672

Rubber Strip

$

$

Not available

15

Cub Cadet N/A

Fuel Hose, 18"

$

$

Currently unavailable

16

Cub Cadet 02002253

Grommet Fuel Tank

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet 951-3124E

Fuel Cap, 3.5, Tethered

$36.99

$

In Stock, only 1 left!

0
