H 1536 (55AI4HPR050) - Cub Cadet Walk-Behind Mower Kawasaki FH430V-CS26 Air Filter & Muffler Parts Diagram

Walk-Behind Mower

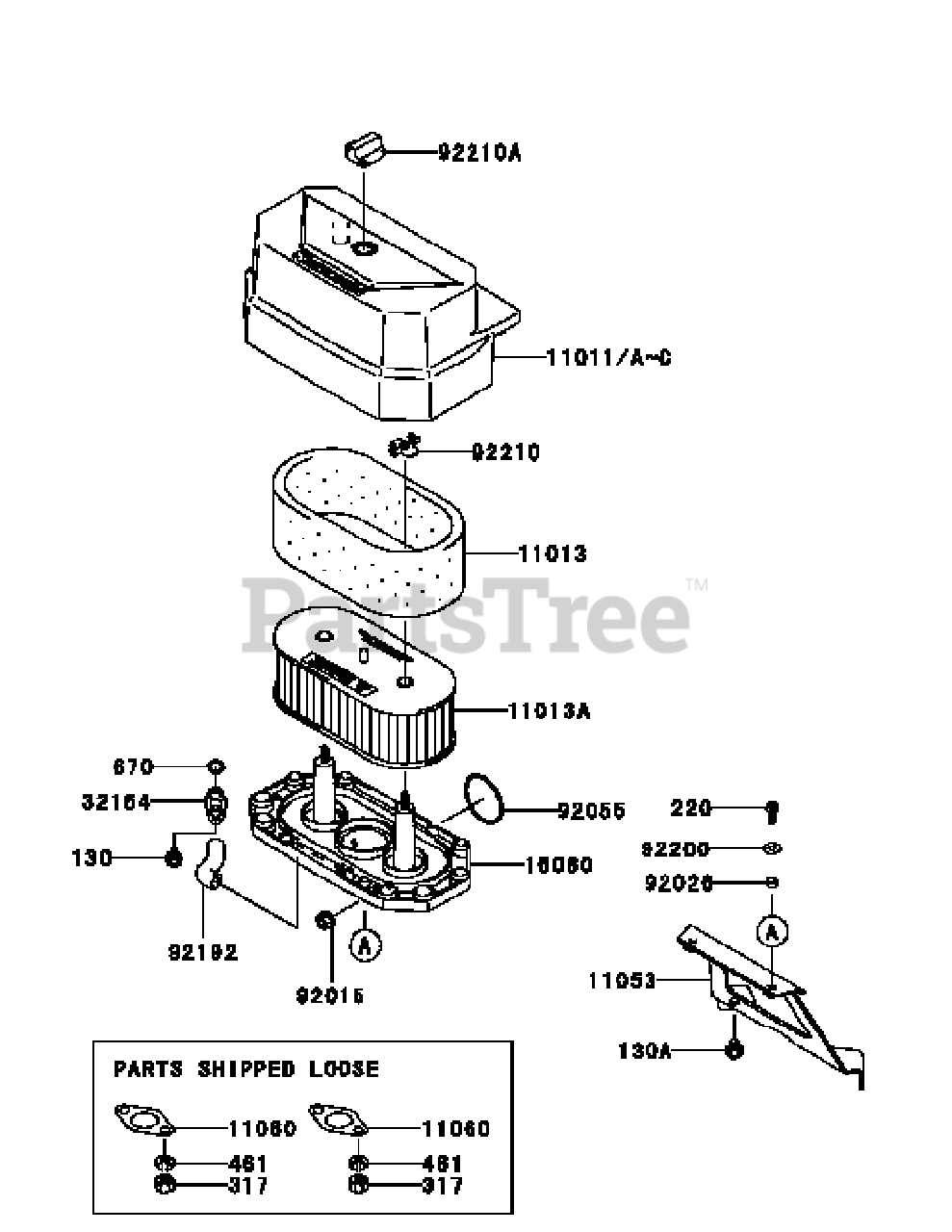

Kawasaki FH430V-CS26 Air Filter & Muffler Parts Diagram

  • Title

11011B

Cub Cadet KM-11011-7045

CASE-AIR FILTER

$22.99

$

In Stock, Qty 15

0

11013

Cub Cadet KM-11013-7025

ELEMENT-AIR FILTER

$6.99

$

In Stock, Qty 20+

0

11013A

Cub Cadet KM-11013-7031

ELEMENT-AIR FILTER

$26.99

$

In Stock, Qty 20+

0

11053

Cub Cadet KM-11053-7022

BRACKET

$36.99

$

Usually ships in 2-5 days

0

11060

Cub Cadet KM-11060-7021

GASKET,MUFFLER

$2.49

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130B0610

BOLT-FLANGED,6X10
(Superseded to KM-130BA0610)

$1.49

$

In Stock, only 4 left!

0

130A

Cub Cadet KM-130B0612

BOLT-FLANGED,6X12
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

16060

Cub Cadet KM-16060-7016

PIPE-INTAKE

$22.99

$

Usually ships in 2-5 days

0

220

Cub Cadet KM-220B0614

SCREW-PAN-CROS,6X14

$

$

Not available

317

Cub Cadet KM-317R0800

NUT-HEX-SMALL,8MM

$2.99

$

In Stock, Qty 16

0

32154

Cub Cadet KM-32154-7006

PIPE

$8.99

$

Usually ships in 2-5 days

0

461

Cub Cadet KM-461F0800

WASHER-SPRING,8MM
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0

670

Cub Cadet KM-670B2010

O RING,10MM

$1.99

$

In Stock, Qty 10

0

92015

Cub Cadet KM-92015-1193

NUT
(Superseded to KM-92015-1367)

$4.49

$

In Stock, Qty 20+

0

92026

Cub Cadet KM-92026-7001

SPACER,6.2X7.9X5

$2.49

$

In Stock, only 3 left!

0

92055

Cub Cadet KM-92055-7015

RING-O

$1.49

$

In Stock, Qty 7

0

92192

Cub Cadet KM-92192-7010

TUBE

$8.49

$

In Stock, Qty 6

0

92200

Cub Cadet KM-92200-2070

WASHER

$1.49

$

In Stock, only 4 left!

0

92210

Cub Cadet KM-92210-7004

NUT

$3.49

$

In Stock, Qty 20+

0

92210A

Cub Cadet KM-92210-7019

NUT

$6.99

$

In Stock, Qty 20+

0
