H 1536 (55AI4HPR050) - Cub Cadet Walk-Behind Mower Caster Wheel Fabricated Deck Parts Diagram

Walk-Behind Mower

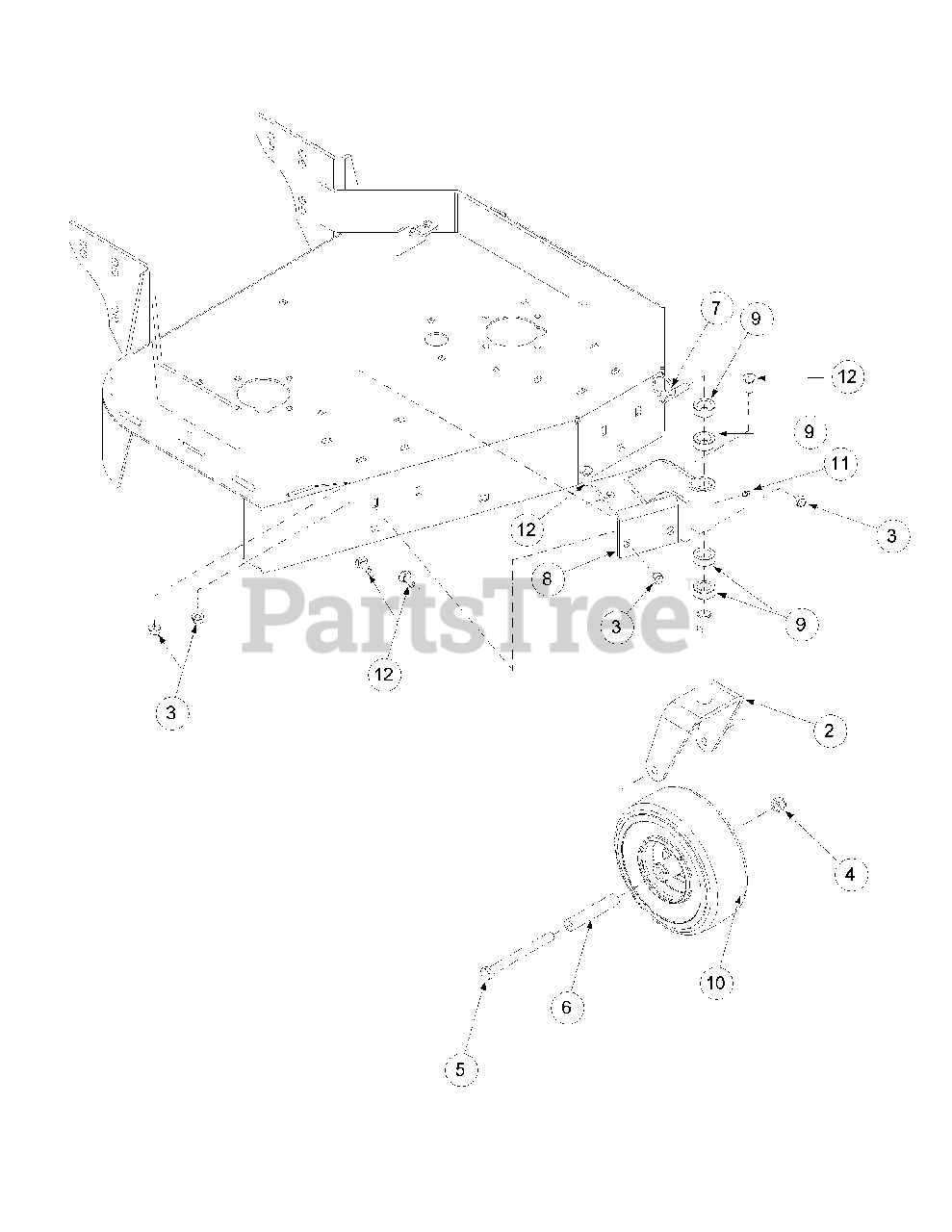

Caster Wheel Fabricated Deck Parts Diagram

  • Title

1

Cub Cadet n/a

Lubricant Grease by Ounce

$

$

Currently unavailable

2

Cub Cadet 01001051-0637

Caster Yoke Assembly, Weldment

$178.99

$

In Stock, only 1 left!

0

3

Cub Cadet 712-04065

Nut, Hex Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

5

Cub Cadet 00012675

Hex Cap Screw, 1/2-13, 5.50

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet 00014528

Spacer Wheel

$12.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 711-1105

Klik Pin, 1.75

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 01006718

Caster Bracket Weldment

$

$

Not available

8

Cub Cadet 00064164

Caster Bushing

$23.99

$

In Stock, Qty 9

0

9

Cub Cadet 00021925

Spacer, Caster

$16.99

$

In Stock, only 3 left!

0

10

Cub Cadet 02000192

Wheel Assembly, 9.0 x 3.50-4

$136.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0
