H 1536 (55AE332R150) - Cub Cadet Walk-Behind Mower FH451V-AS07 Cylinder & Crankcase Parts Diagram

Walk-Behind Mower

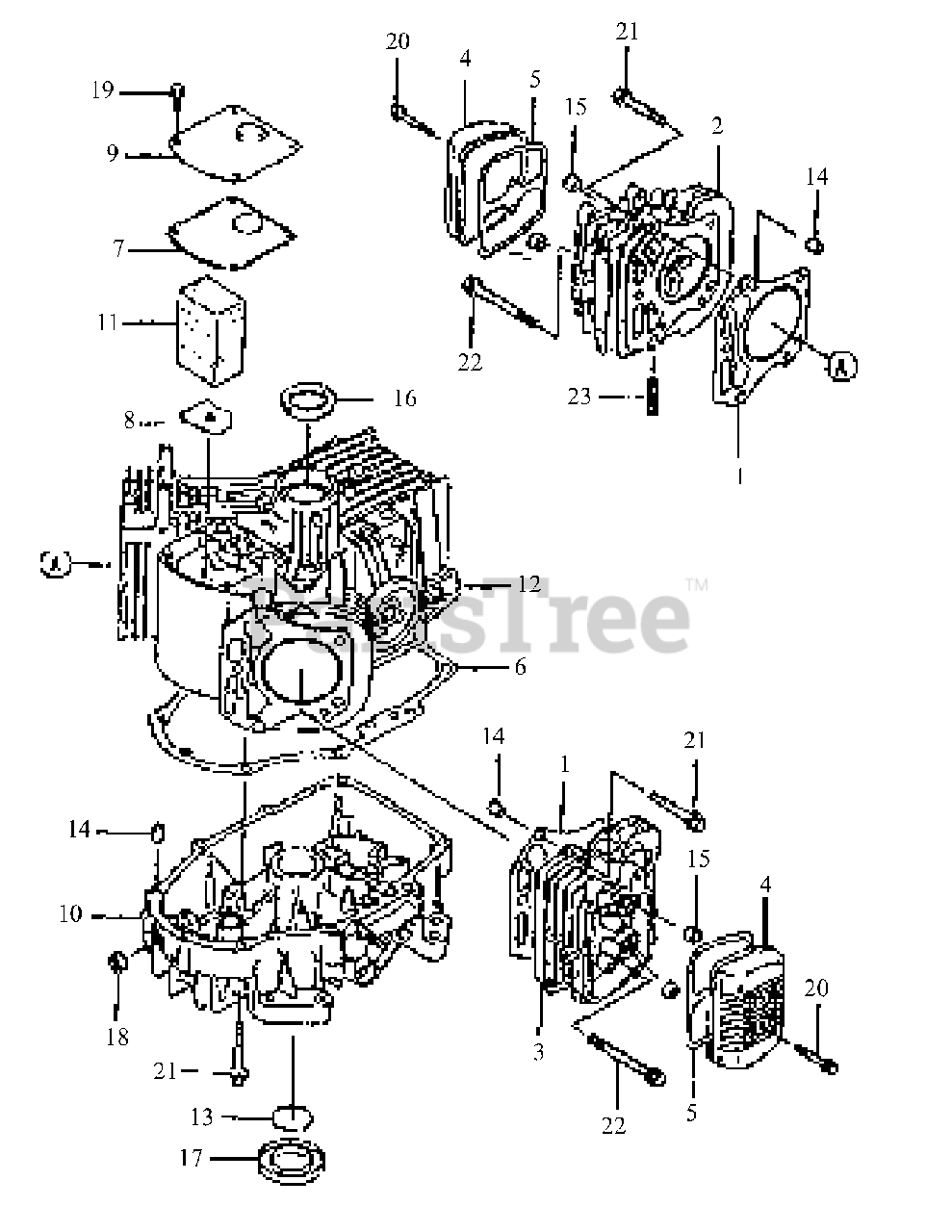

FH451V-AS07 Cylinder & Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7015

Gasket, Head

$10.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-11008-6043

Head, Cylinder#1

$273.99

$

In Stock, Qty 9

0

3

Cub Cadet KM-11008-7020

Head, Cylinder#2

$273.99

$

In Stock, only 2 left!

0

4

Cub Cadet KM-11022-7003

Case, Rocker

$14.99

$

In Stock, only 3 left!

0

5

Cub Cadet KM-11060-7001

Gasket, Rocker Case

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11060-7008

Gasket, Crankcase

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11061-7097

Gasket, Breather

$8.49

$

In Stock, Qty 9

0

8

Cub Cadet KM-13271-7016

Plate

$2.49

$

In Stock, only 3 left!

0

9

Cub Cadet KM-14091-7006

Cover, Breather
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-49015-6223

Cover, Crankcase

$

$

Not available

11

Cub Cadet KM-49109-7002

Element, Breather
(Superseded to KM-99996-6104)

$18.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-49120-6132

Crankcase, Comp.

$

$

Not available

13

Cub Cadet KM-92033-7003

Ring, Snap

$0.99

$

In Stock, Qty 17

0

14

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 7

0

15

Cub Cadet KM-92049-7001

Seal, Oil

$8.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KM-92049-7010

Seal, Oil

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92049-7011

Seal, Oil

$5.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-92049-7019

Seal, Oil

$2.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-130BA0640

Bolt, Flange

$1.49

$

In Stock, only 3 left!

0

21

Cub Cadet KM-130CA0850

Bolt, Flange

$1.99

$

In Stock, Qty 6

0

22

Cub Cadet KM-130CA0875

Bolt, Flange

$2.49

$

In Stock, Qty 9

0

23

Cub Cadet KM-172BA0818

Bolt, Stud

$1.99

$

In Stock, only 3 left!

0

Cub Cadet 01004624P

Replacement Engine
(Superseded to KM-FH451V-AS02)

Note: (not shown)

$

$

Not available
