H 1536 (55AE332R150) - Cub Cadet Walk-Behind Mower (2003) Standard Engine Deck Assembly Hydro Parts Diagram

Walk-Behind Mower

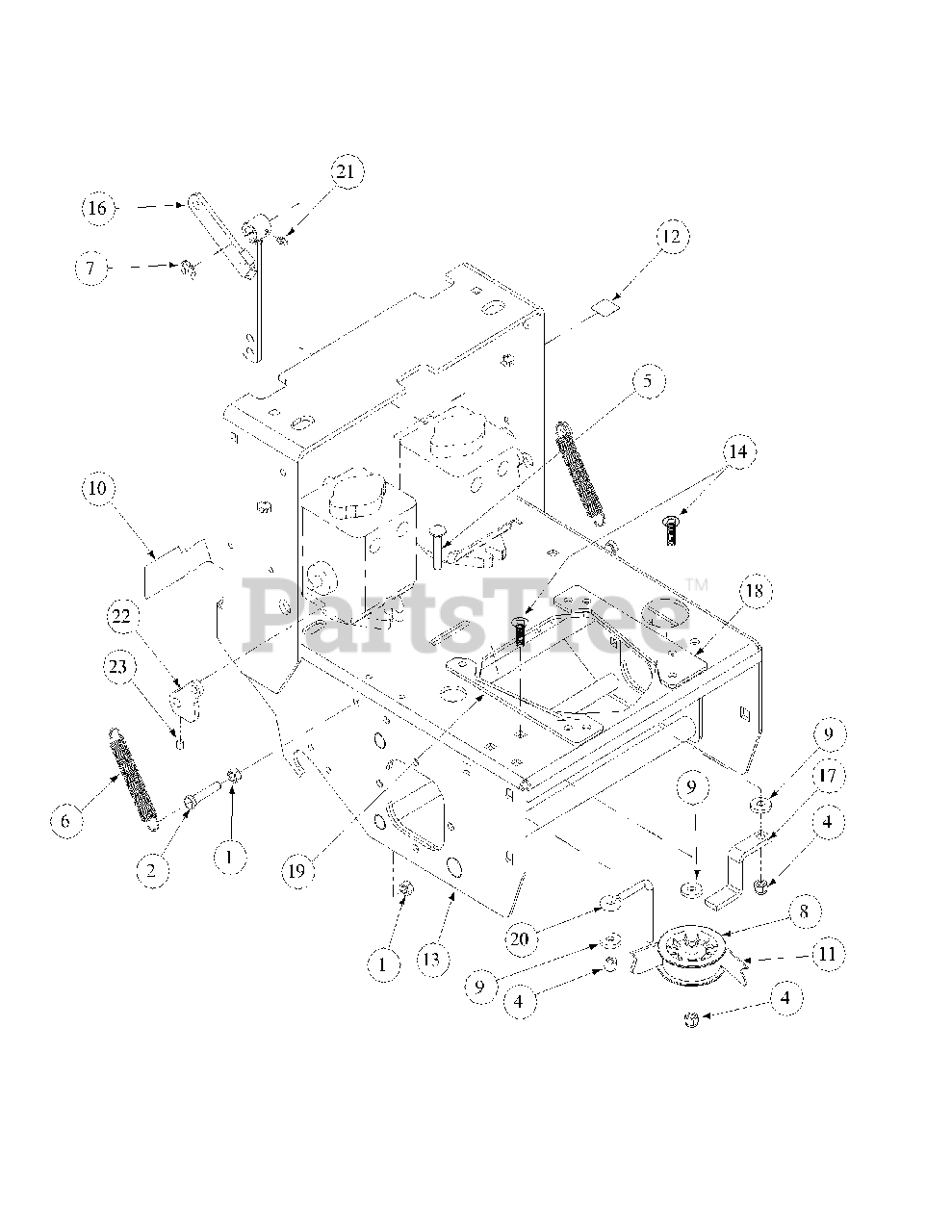

Standard Engine Deck Assembly Hydro Parts Diagram

  • Title
1

Cub Cadet 912-3017

Nut, Hex, 3/8-16 Grade C
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00008495

Cap Screw, 3/8-16 x 1-3/4" Grade 5

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 712-04065

Nut, L, Nylon Insert, 3/8-16 Grade A

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00014270

Carriage Bolt, 3/8-16 x 2 Grade 5
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

6

Cub Cadet 00020816

Spring, Music Wire, LE-093G-9, Plated 2

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00021962

E-Ring, 5/8" #5113-62

$

$

Not available

8

Cub Cadet 02004558

Pulley, Flat Idler W/Adaptor

$22.99

$

In Stock, only 1 left!

0

9

Cub Cadet 00083192

Washer, Idler
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 00090006

Decal, "Made In America"

$

$

Not available

11

Cub Cadet 01007333

Belt, Hydro Pump
(Superseded to 01007333P)

$54.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01001035

Label, Mower, Warn, Open Belt Drive

$

$

Not available

13

Cub Cadet 01001086-0637

Engine Base Assembly, Hydro

$

$

Not available

14

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25 Grade 5

$3.99

$

In Stock, Qty 5

0

16

Cub Cadet 00021902

Bellcrank Clutch
(Superseded to 01009455)

$85.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01003146-0637

Belt Guide, Engine, 36/42/48

$

$

Not available

18

Cub Cadet 01004392-0637

Spacer, Engine, Right Hand

$

$

Not available

19

Cub Cadet 01004395-0637

Spacer, Engine, Left Hand

$

$

Not available

20

Cub Cadet 01005114

Belt Guide, 3.375

$13.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01007179

Grease Fitting, 1/4-28 x 3/16 STR
(Superseded to 737-04345)

$4.99

$

In Stock, Qty 6

0

22

Cub Cadet 01007568

Pump Lever

$

$

Not available

23

Cub Cadet 01008004

Set Screw, 5/16-24 x 1.25

$

$

Not available
