H 1536 (55AE332R150) - Cub Cadet Walk-Behind Mower (2003) FH451V-AS03 Piston & Crankshaft Parts Diagram

Walk-Behind Mower

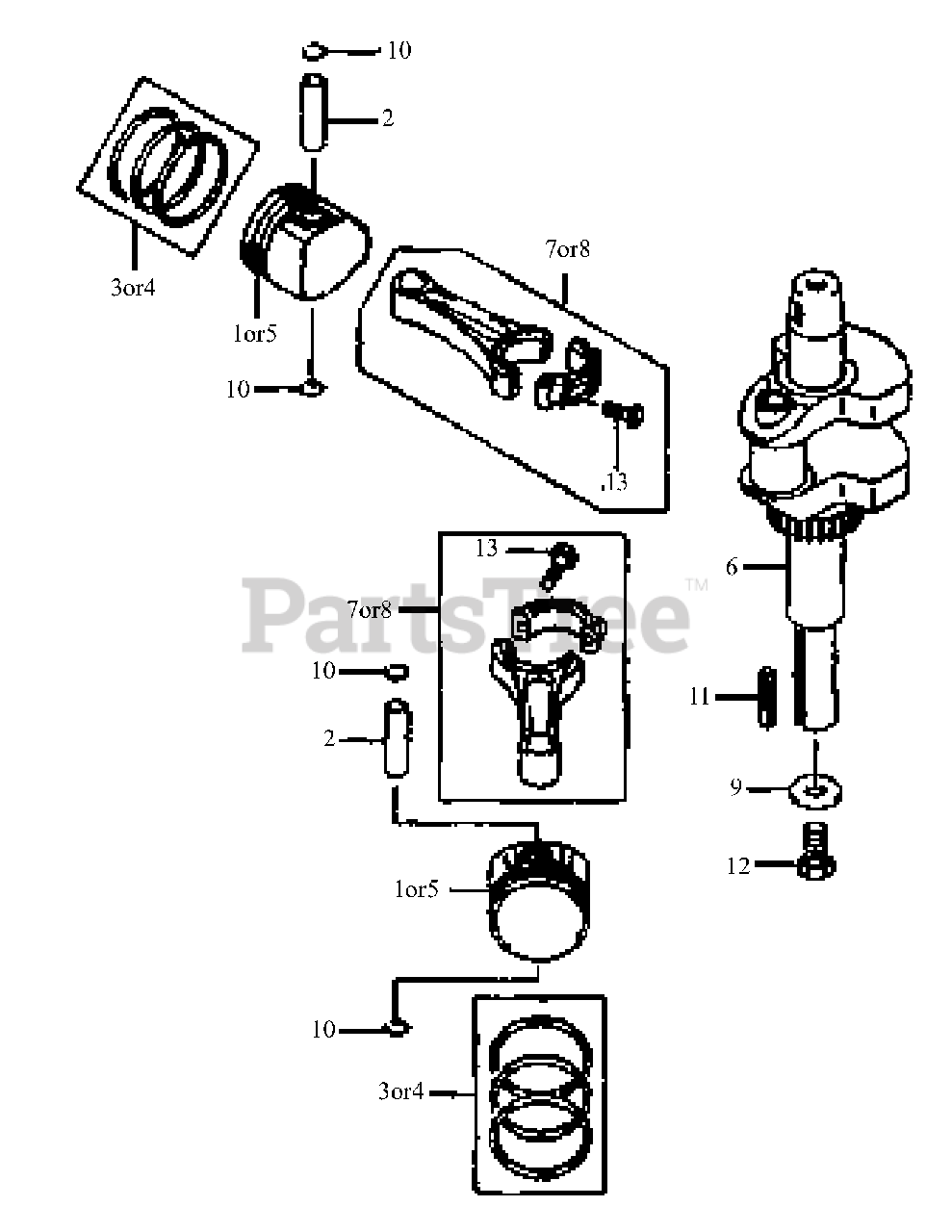

FH451V-AS03 Piston & Crankshaft Parts Diagram

  • Title
1

Cub Cadet KM-13001-7008

Piston, Engine

$74.99

$

In Stock, only 2 left!

0

2

$4.99

$

In Stock, Qty 10

0

3

Cub Cadet KM-13008-6055

Ring, Set Piston

$60.99

$

In Stock, Qty 14

0

4

Cub Cadet KM-13025-7001

Ring, Set Piston 0.050

Note: (AR)

$39.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-13029-7001

Piston, Engine 0.050

Note: (AR)

$86.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-13031-7001

Crankshaft, Comp.

$

$

Not available

7

Cub Cadet KM-13251-7003

Rod, Connecting u/s 0.050

$58.99

$

In Stock, only 3 left!

0

8

Cub Cadet KM-13251-7004

Rod, Connecting Std

$58.99

$

In Stock, only 2 left!

0

9

Cub Cadet KM-92022-1982

Washer 12.5x32x3.2

$5.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-92033-7002

Ring, Snap
(Superseded to KM-92033-0780)

$0.99

$

In Stock, Qty 11

0

$4.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-92151-7010

Bolt 7/16-20 unf

$1.49

$

In Stock, only 1 left!

0

13

Cub Cadet KM-130G0630

Bolt Flange

$1.99

$

In Stock, Qty 15

0
