H 1528ES (1696925-00) - Snapper 28" Snow Thrower, 14.5hp (2019) Auger Drive Group Parts Diagram

28" Snow Thrower, 14.5hp

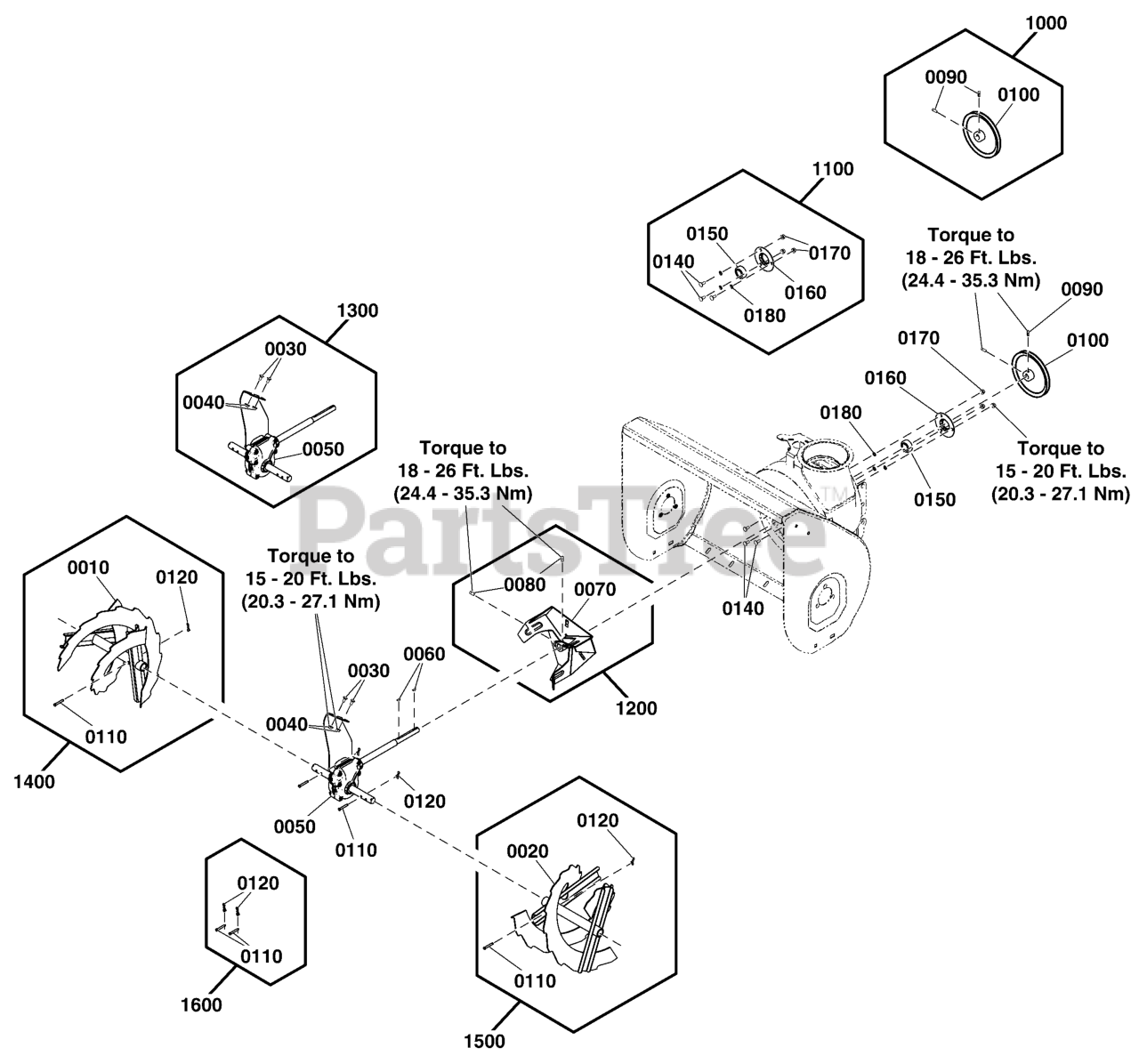

Auger Drive Group Parts Diagram

  • Title

0060

Snapper 703891

KEY, Woodruff, Plain, 3/16 x 5/8

$4.99

$

In Stock, Qty 20+

0

1000

Snapper 772105

KIT, Auger Pulley 7.25"

Note: (Incl. Ref. Nos. 0090, 0100)

$46.99

$

Usually ships in 2-12 days

0

0090

Snapper 1930540SM

SCREW, Set Square Head Cup Point, 5/16-18X 5/8, G8

$4.49

$

In Stock, Qty 11

0

0100

PULLEY, Impeller, 7.250 OD, HD

$

$

Not available

1100

Snapper 772145

KIT, Bearing Mounting Plate

Note: (Incl. Ref. Nos. 0140, 0150, 0160, 0170, 0180)

$18.99

$

Usually ships in 2-12 days

0

0140

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0150

Snapper 2108202SM

BEARING, Ball, 3/4 ID x 1-3/4 OD x 5/8"

$11.99

$

In Stock, Qty 20+

0

0160

Snapper 1665982SM

RETAINER, Bearing

$6.99

$

In Stock, Qty 20+

0

0170

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

1200

Snapper 772090

KIT, Impeller

Note: (Incl. Ref. Nos. 0070, 0080)

$73.99

$

Usually ships in 2-12 days

0

0070

WELDMENT, Impeller, Black

$

$

Not available

0080

Snapper 1960474SM

SETSCREW, Square Head, 3/8-16 x 1/2, G8

$5.99

$

In Stock, Qty 7

0

1300

Snapper 772092

KIT, Gearbox

Note: (Incl. Ref. Nos. 0030, 0040, 0050)

$378.99

$

Usually ships in 2-12 days

0

0030

Snapper 703159

BOLT, Carriage, 5/16-18 x 5/8, G5

$3.99

$

In Stock, Qty 19

0

0040

Snapper 703222

NUT, Hex, KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0050

GEARBOX ASSY, HD-ZMO

$

$

Not available

1400

Snapper 772204

KIT, 28" Auger RH
(Superseded to 84003184)

Note: (Incl. Ref. Nos. 0010, 0110, 0120)

$162.99

$

Usually ships in 2-12 days

0

0010

Snapper 1737078CJ

WELDMENT, Auger, 28", RH, Black

$

$

Currently unavailable

0110

Snapper 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 703060

PIN, Cotter, Bow Tie, 3/16

$4.49

$

In Stock, Qty 12

0

1500

Snapper 772205

KIT, 28" Auger LH
(Superseded to 84003185)

Note: (Incl. Ref. Nos. 0020, 0110, 0120)

$185.99

$

Usually ships in 2-12 days

0

0020

Snapper 1737079CJ

WELDMENT, Auger, 28", LH, Black

$

$

Currently unavailable

0110

Snapper 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 703060

PIN, Cotter, Bow Tie, 3/16

$4.49

$

In Stock, Qty 12

0

1600

Snapper 1750790YP

SHEAR PIN KIT, 1038

Note: (Incl. Ref. Nos. 0110, 0120)

$5.99

$

In Stock, Qty 20+

0

0110

Snapper 703063

PIN, Sheer, 1/4 X 1 3/4

$4.49

$

In Stock, Qty 20+

0

0120

Snapper 703060

PIN, Cotter, Bow Tie, 3/16

$4.49

$

In Stock, Qty 12

0
