H 1528 E (1696518-01) - Simplicity 28" Snow Thrower, 14.5hp Handles & Controls Group Parts Diagram

28" Snow Thrower, 14.5hp

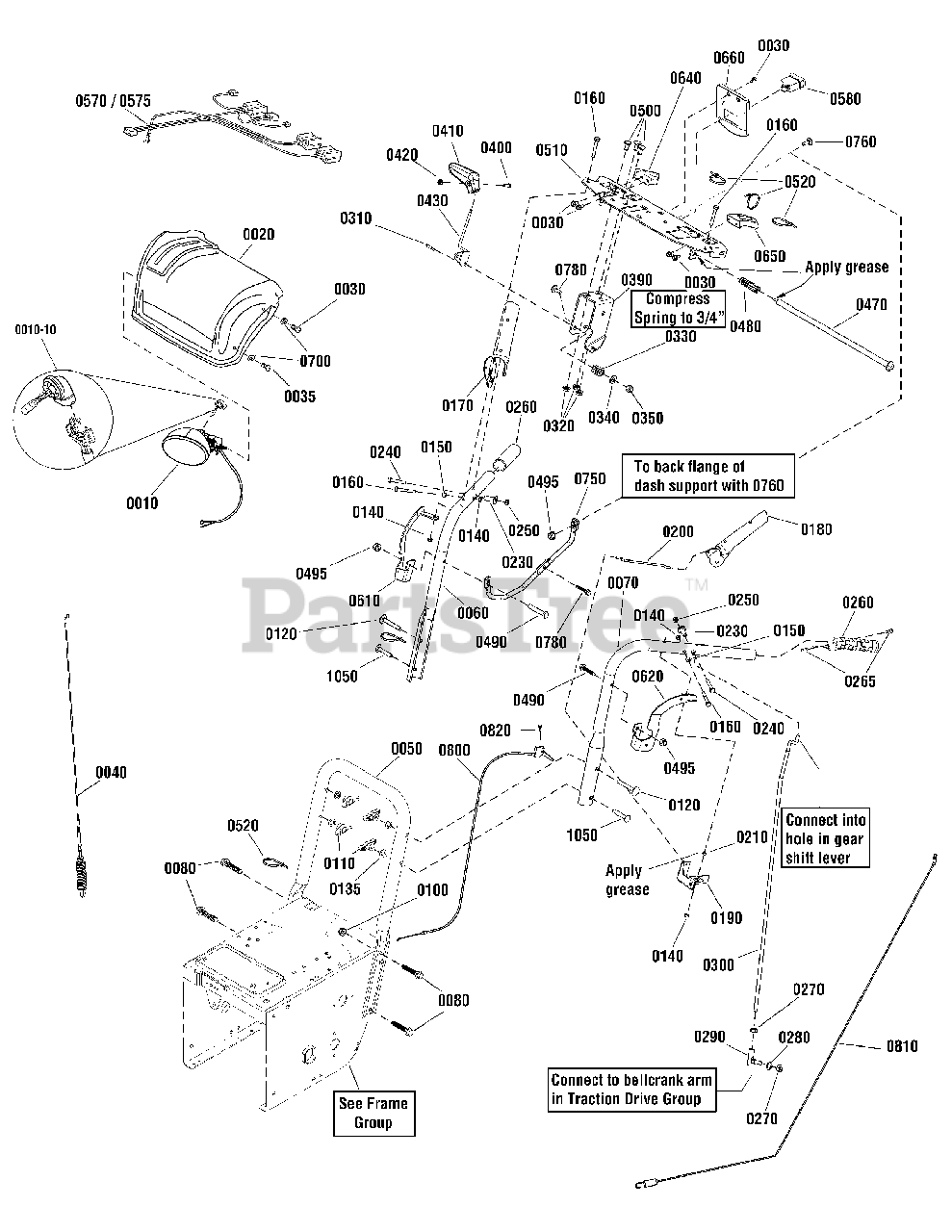

Handles & Controls Group Parts Diagram

  • Title

0010

Simplicity 1737965YP

HEADLIGHT ASSEMBLY
(Superseded to 1688087)

$

$

Not available

0010-10

* BULB, Headlight, Halogen, 881-12V 27W

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Simplicity 1750682CYP

COVER, Panel

$125.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1960556SM

SCREW, Truss Head Torx, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0035

Simplicity 1960715SM

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0040

Simplicity 703221

CABLE AND SPRING ASSEMBLY, Auger Drive, Right

$24.99

$

In Stock, Qty 6

0

0050

Simplicity 1737274AYP

HANDLE, Lower

$107.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1737531AYP

HANDLE, Upper, Right

$59.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1737532AYP

HANDLE, Upper, Left

$53.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1737687YP

CAPSCREW, Hex Head, 5/16-18 x 3/4 G5

$6.49

$

Usually ships in 2-12 days

0

0100

Simplicity 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0120

Simplicity 1750299YP

BOLT, Carriage, 5/16-18 x 2-1/4 G5
(Superseded to 703168)

$3.99

$

In Stock, only 4 left!

0

0135

Simplicity 7090391SM

WASHER, Internal Tooth, 5/16
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0140

Simplicity 1920397SM

NUT, Hex Lock, ESNA Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0150

Simplicity 1678392SM

SPACER, 1/4ID x 3/8OD
(Superseded to 703137)

$6.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1921962SM

CAPSCREW, Hex Head, 1/4-20 x 1-3/4 G5
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1739783AYP

LEVER, Clutch, Right

$28.99

$

In Stock, only 1 left!

0

0180

Simplicity 1739782AYP

LEVER, Clutch, Left

$

$

Not available

0190

Simplicity 1733505BMYP

BRACKET, Pivot, Free Hand

$14.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1736360YP

ROD, 5-5/8 Inch

$11.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1733095SM

SPACER, 1/4ID x 3/8OD

$4.49

$

Usually ships in 2-12 days

0

0230

Simplicity 1736542YP

SPACER, Stepped

$4.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1750554YP

BOLT, Shoulder, 1/4 x 1-1/4

$4.99

$

In Stock, only 1 left!

0

0250

Simplicity 1933896SM

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0260

Simplicity 1738124YP

GRIP, Heated
(Superseded to 770002)

Note: (Used on 28" & 30" Domestic Models Only)

$86.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1726317SM

HAND GRIP

$8.49

$

In Stock, only 1 left!

0

0265

Simplicity 703044

SCREW

Note: (Used on 28" & 30" Domestic Models Only)

$4.49

$

Usually ships in 2-12 days

0

0270

Simplicity 2820263SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

0280

Simplicity 703116

LOCKWASHER, Split, 5/16

$3.49

$

In Stock, Qty 20+

0

0290

Simplicity 1739290YP

BALL JOINT
(Superseded to 703224)

$21.99

$

In Stock, only 2 left!

0

0300

Simplicity 1737331YP

ROD, Speed Select

$19.99

$

In Stock, only 1 left!

0

0310

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2 G5
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0320

Simplicity 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Simplicity 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

0340

Simplicity 1918266SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

0350

Simplicity 1919439SM

NUT, Hex Lock, Esna Light, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0390

Simplicity 1737684YP

BRACKET, Controls

$16.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1960589SM

SCREW, Phillips, #10-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0410

Simplicity 1733192SM

GRIP, Lever

$8.49

$

Usually ships in 2-12 days

0

0420

Simplicity 1933896SM

NUT, Hex Lock Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0430

Simplicity 703047

SPEED LEVER

$56.99

$

Usually ships in 2-12 days

0

0470

Simplicity 1736363YP

ROD & SPRING ASSEMBLY

$33.99

$

Usually ships in 2-12 days

0

0480

Simplicity 2108360SM

SPRING, Compression

$5.49

$

In Stock, only 1 left!

0

0490

Simplicity 7091003YP

CAPSCREW, Hex Head, 1/4-20 x 1-3/4, G5

$3.49

$

Usually ships in 2-12 days

0

0495

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 20+

0

0500

Simplicity 340720MA

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0510

Simplicity 1739500BMYP

COVER, Dash

$54.99

$

Usually ships in 2-12 days

0

0520

Simplicity 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0570

Simplicity 1750773YP

WIRE HARNESS, Deflector

Note: (Used before Serial No. 2017250879)

$100.99

$

Usually ships in 2-12 days

0

0570

Simplicity 709957

WIRE HARNESS, Deflector

Note: (Used after Serial No. 2017250879)

$78.99

$

Usually ships in 2-12 days

0

0575

Simplicity 1752164YP

WIRE HARNESS, Heated Hand Grip

Note: (Used on 28" & 30" Domestic Models Only)

$43.99

$

Usually ships in 2-12 days

0

0580

Simplicity 1752242YP

SWITCH, Heated Hand Grip

Note: (Used on 28" & 30" Domestic Models Only)

$36.99

$

In Stock, only 1 left!

0

0610

Simplicity 1750522BMYP

BRACKET, Mounting, RH

$13.99

$

Usually ships in 2-12 days

0

0620

Simplicity 1750521BMYP

BRACKET, Mounting, RH

$19.99

$

Usually ships in 2-12 days

0

0640

Simplicity 1739483AYP

POD, Chute Rotation, RH

$35.99

$

Usually ships in 2-12 days

0

0650

Simplicity 1739484AYP

POD, Deflector, LH

$

$

Not available

0660

Simplicity 1739861BMYP

BRACKET, Heated Hand Grip
(Superseded to 1739861AYP)

Note: (Used on 28" & 30" Domestic Models Only)

$19.99

$

Usually ships in 2-12 days

0

0700

Simplicity 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0750

Simplicity 1737552YP

BRACE

$22.99

$

In Stock, only 1 left!

0

0760

Simplicity 703101

BOLT, Carriage, 1/4-20 x 3/4

$3.99

$

In Stock, only 4 left!

0

0780

Simplicity 1925592SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 12

0

0800

Simplicity 1737510YP

CABLE, Steering Control

$33.99

$

Usually ships in 2-12 days

0

0810

Simplicity 1737511YP

CABLE, Traction Drive

$24.99

$

In Stock, only 1 left!

0

0820

Simplicity 703134

BOLT, Oval Head, 10-24 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

1050

Simplicity 703059

BOLT, Carriage, 5/16-18 x 2

$4.49

$

In Stock, Qty 16

0
