H 1528 E (1696237-00) - Simplicity 28" Snow Thrower, 14.5hp Chute & Rotation Group - Full Electric Parts Diagram

28" Snow Thrower, 14.5hp

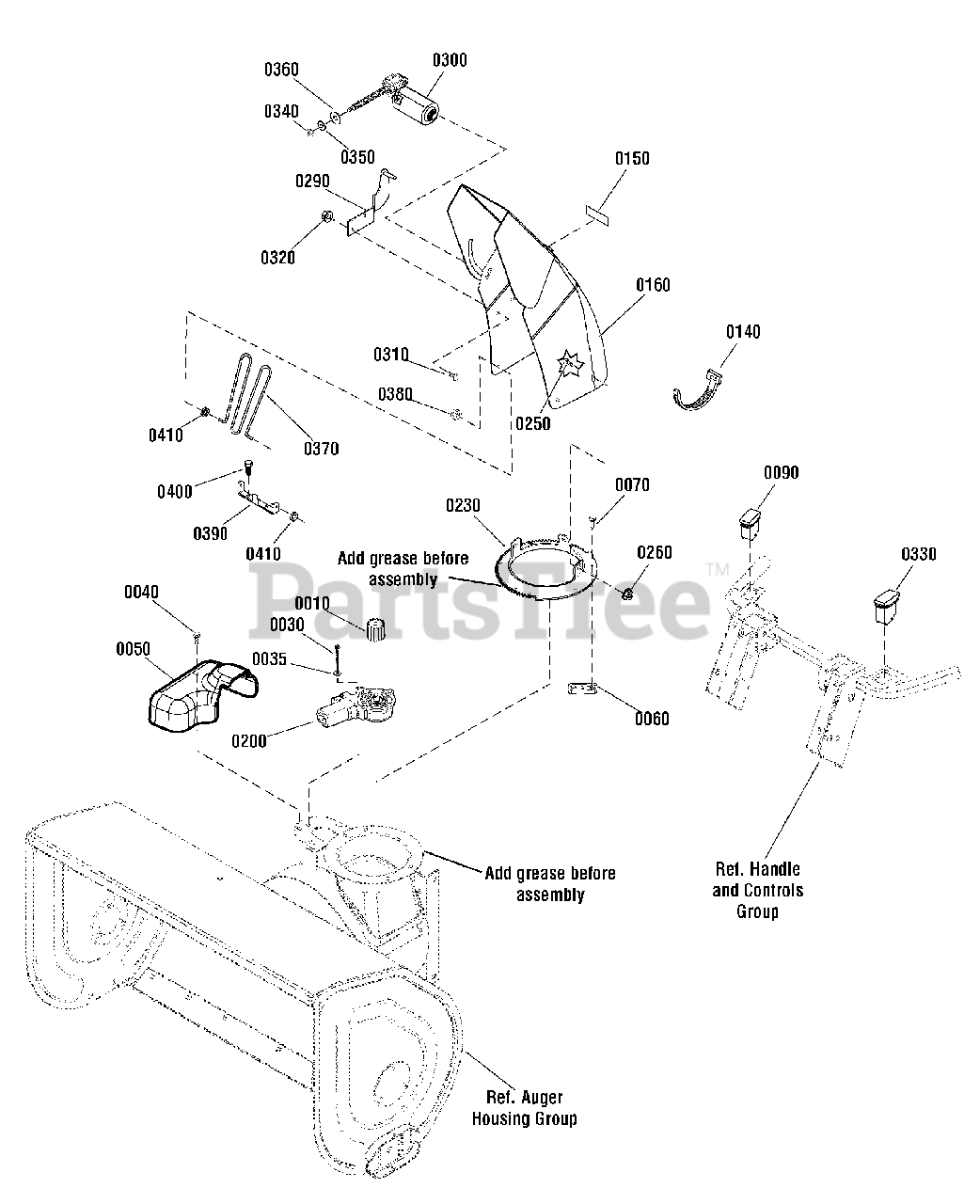

Chute & Rotation Group - Full Electric Parts Diagram

  • Title

0010

Simplicity 1728967SM

PINION, 1-1/4 Lg

$17.99

$

In Stock, only 4 left!

0

0030

Simplicity 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 13

0

0035

Simplicity 7091552SM

WASHER, Flat, 7/32 x 1/2

$3.99

$

In Stock, Qty 14

0

0040

Simplicity 1925592SM

CAPSCREW, Hex Washer, Taptite, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

0050

Simplicity 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Simplicity 7011938SM

RETAINER, Spout

$

$

Not available

0070

Simplicity 1960001SM

CAPSCREW, Hex Washer, 10-14 x 5/8
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

0090

Simplicity 1737378YP

SWITCH, Chute Rotation
(Superseded to 1687904)

$82.99

$

In Stock, Qty 13

0

0140

Simplicity 1701011SM

TIE, Self Locking, 7-5/16 Lg

$5.49

$

In Stock, only 2 left!

0

0150

Simplicity 1706085SM

DECAL, Hinge

$13.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1738231CYP

CHUTE ASSEMBLY, Tall, Steel
(Superseded to 1752841CYP)

$192.99

$

Usually ships in 2-12 days

0

0200

Simplicity 1739309YP

MOTOR, Spout Rotator, 38"
(Superseded to 708703)

$86.99

$

In Stock, Qty 7

0

0230

Simplicity 1737962BMYP

GEAR, Tall, Steel Chute

$40.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1931317SM

BOLT, Carriage, 1/4-20 x 3/4, G5
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

0260

Simplicity 2860694SM

NUT, Hex Flange, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0290

Simplicity 1738267BMYP

BRACKET ASSEMBLY

$30.99

$

Usually ships in 2-12 days

0

0300

Simplicity 1737941YP

MOTOR, Chute Deflector

$143.99

$

In Stock, Qty 6

0

0310

Simplicity 1960715SM

SCREW, Truss Head, Torx, 1/4-20 X 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0320

Simplicity 1960694SM

NUT, Hex Flange, 1/4-20
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0330

Simplicity 1737379YP

SWITCH, Deflector Control
(Superseded to 1687905)

$82.99

$

In Stock, Qty 14

0

0340

Simplicity 1738244YP

WASHER, Rubber

$4.49

$

In Stock, Qty 11

0

0350

Simplicity 1738245YP

NUT, 1/4-20, L.H.
(Superseded to 703143)

$3.49

$

In Stock, Qty 6

0

0360

Simplicity 703332

WASHER, Flat

$4.49

$

In Stock, Qty 20+

0

0370

Simplicity 1733475SM

GUARD, Chute (CE/Export)

$21.99

$

Usually ships in 2-12 days

0

0380

Simplicity 1960140SM

PUSHNUT, 3/16 Dia. (CE/Export)

$3.49

$

Usually ships in 2-12 days

0

0390

Simplicity 1737683AYP

BRACKET, Chute Guard (CE/Export)

$17.99

$

Usually ships in 2-12 days

0

0400

Simplicity 1925003SM

CAPSCREW, Hex Washer, Taptite, 1/4-20 x 1/2 (CE/Export)
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0410

Simplicity 1738174YP

GROMMET, Chute Guard Bracket (CE/Export)

$4.49

$

Usually ships in 2-12 days

0
