H 1524 E (1696920-00) - Simplicity 24" Snow Thrower, 14.5hp Handles Group Parts Diagram

24" Snow Thrower, 14.5hp

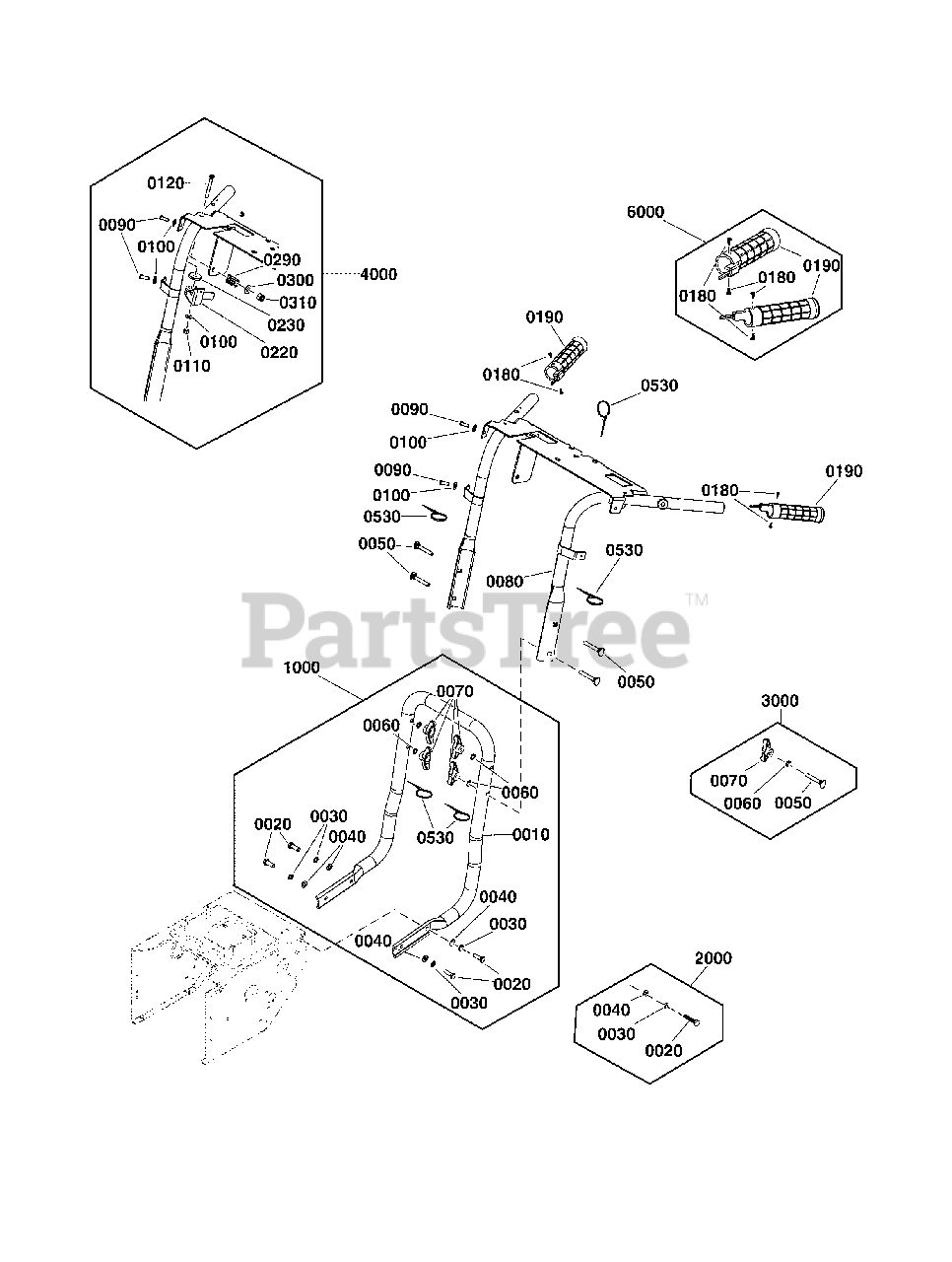

Handles Group Parts Diagram

  • Title
1000

Simplicity 772108

KIT, Lower Handle

Note: (Incl. Ref. Nos. 0010, 0020, 0030, 0040, 0050, 0060, 0070)

$48.99

$

Usually ships in 2-12 days

0

0010

HANDLE, Lower, Black

$

$

Not available

0020

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5

$

$

Not available

0030

LOCKWASHER, Spring, 5/16

$

$

Not available

0040

WSHR SAE FLAT 5/16 ZINC/CLEAR

$

$

Not available

0050

BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4

$

$

Not available

0060

WASHER, 5/16" Internal Tooth Lock

$

$

Not available

0070

KNOB, 5/16-18 Wing (5/16-18 thread) (Black)

$

$

Not available

2000

Simplicity 772110

KIT, Lower Handle Attachment Hardware

Note: (Incl. Ref. Nos. 0020, 0030, 0040)

$4.49

$

Usually ships in 2-12 days

0

0020

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5

$

$

Not available

0030

LOCKWASHER, Spring, 5/16

$

$

Not available

0040

WSHR SAE FLAT 5/16 ZINC/CLEAR

$

$

Not available

3000

Simplicity 772109

KIT, Handle Wing Nut Hdwe, Upper/Lower

Note: (Incl. Ref. Nos. 0050, 0060, 0070)

$11.99

$

Usually ships in 2-12 days

0

0050

BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4

$

$

Not available

0060

WASHER, 5/16" Internal Tooth Lock

$

$

Not available

0070

KNOB, 5/16-18 Wing (5/16-18 thread) (Black)

$

$

Not available

4000

Simplicity 772116

KIT, Upper Handle

Note: (Incl. Ref. Nos. 0050, 0060, 0080, 0090, 0100, 0110, 0120)

$98.99

$

Usually ships in 2-12 days

0

0080

WELDMENT, Upper Handle, Black

$

$

Not available

0050

BOLT, Carriage, Curved Head, 5/16-18 x 2-1/4

$

$

Not available

0060

WASHER, 5/16" Internal Tooth Lock

$

$

Not available

0070

KNOB, 5/16-18 Wing (5/16-18 thread) (Black)

$

$

Not available

0090

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$

$

Not available

0100

WASHER .281X.630X.065 FLAT ZINC/CLEAR

$

$

Not available

0110

NUT, 1/4-20, Nylock

$

$

Not available

0120

HHCS 1/4-20X2.000 GR5 ZINC/CLEAR

$

$

Not available

0130

SPRING, Compression, 2-1/4

$

$

Not available

0140

ROD & SPRING ASSEMBLY

$

$

Not available

6000

Simplicity 770769

KIT, Grip, Handle

Note: (Incl. Ref. Nos. 0180, 0190)

$43.99

$

In Stock, only 1 left!

0

0180

SCREW #6-20X0.380 SELFDRILL PAN HD ZC/CL

$

$

Not available

0190

HAND GRIP, Heated, 60W

$

$

Not available

0530

TIE, 7, Self Lock

$

$

Not available
