H 1226E (1696176-01) - Snapper 26" Snow Thrower, 11.5hp Engine Group - 11.5TP, 14.5TP & 16.5TP Parts Diagram

26" Snow Thrower, 11.5hp

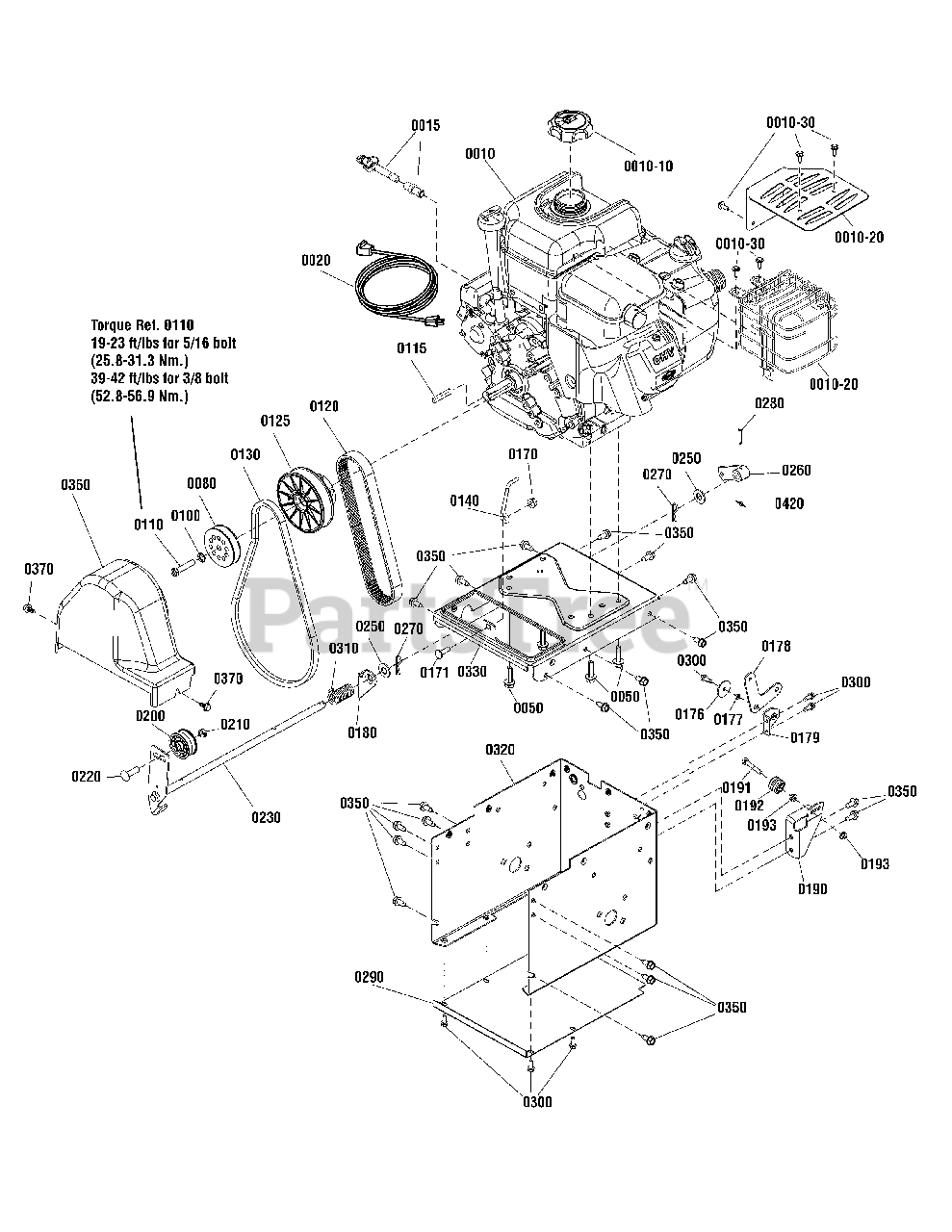

Engine Group - 11.5TP, 14.5TP & 16.5TP Parts Diagram

  • Title

0010

Snapper 15C114-0153-F8

* ENGINE, 11.5TP Briggs & Stratton, Domestic, Model 15C114-0153-F8

$

$

Not available

0010

Snapper 20M314-0135-F1

* ENGINE, 14.5TP Briggs & Stratton, Domestic, Model 20M314-0135-F1

$

$

Not available

0010

Snapper 20M314-0142-H1

* ENGINE, 14.5TP Briggs & Stratton, Export, Model 20M314-0142-H1

$

$

Not available

0010

Snapper 21M314-0127-F1

* ENGINE, 16.5TP Briggs & Stratton, Domestic, Model 21M314-0127-F1

$

$

Not available

0010

Snapper 21M314-0129-H1

* ENGINE, 16.5TP Briggs & Stratton, Export, Model 21M314-0129-H1

$

$

Not available

0010-10

Snapper 795027

* CAP, Fuel

$10.99

$

In Stock, Qty 20+

0

0010-20

Snapper 797003

* GUARD, Muffler, Plate

Note: (Used on 11.5TP Domestic Models)

$45.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 797095

* GUARD, Muffler, Plate

Note: (Used on 14.5TP & 16.5TP Domestic Models)

$45.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 796384

* GUARD, Muffler, Cage

Note: (Export Models)

$83.99

$

Usually ships in 2-12 days

0

0010-30

Snapper 699854

* SCREW, Muffler Guard

Note: (Used on 11.5TP Domestic Models)

$3.99

$

In Stock, Qty 7

0

0010-30

Snapper 699234

* SCREW, Muffler Guard

$3.99

$

In Stock, only 2 left!

0

0015

Snapper 798980

OIL DRAIN ASSEMBLY

$

$

Not available

0020

Snapper 724865

CORD, Electric
(Superseded to 6219MA)

Note: (Used on Domestic Models only)

$40.99

$

In Stock, only 2 left!

0

0050

Snapper 75246

SCREW, Hex Head, Trilobular, 3/8-16 x 1 1/4
(Superseded to 75246GS)

Note: (Domestic Models Only)

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 1737509

PULLEY
(Superseded to 1737509YP)

$

$

Not available

0100

Snapper 703116

LOCKWASHER, Spring, 5/16

$3.49

$

In Stock, Qty 20+

0

0110

Snapper 1750393

CAPSCREW, Hex Head, 5/16-24 x 1-3/4, GR8
(Superseded to 1750393YP)

$4.49

$

Usually ships in 2-12 days

0

0115

Snapper 2157427

KEY, Parallel, 3/16 x 3/16 x 1-1/4
(Superseded to 2157427SM)

$5.49

$

In Stock, only 1 left!

0

0120

Snapper 1737220

V-BELT, Multi-Speed
(Superseded to 1737220YP)

$49.99

$

In Stock, only 3 left!

0

0125

Snapper 1733968

PULLEY
(Superseded to 1733968YP)

$76.99

$

Usually ships in 2-12 days

0

0130

Snapper 724801

BELT, Auger, V4L 38.10 MF 05-10B
(Superseded to 585416MA)

Note: (Use on 11.5TP & 14.5TP Models)

$22.99

$

In Stock, Qty 20+

0

0130

Snapper 1736421

V-BELT, 4L, 38.35, Auger
(Superseded to 1736421YP)

Note: (Use on 16.5TP Models)

$30.99

$

In Stock, Qty 20+

0

0140

Snapper 1737377

STOP, Belt
(Superseded to 1737377YP)

$11.99

$

In Stock, only 1 left!

0

0170

Snapper 703222

NUT, Hex KEPS, 5/16-18

$5.99

$

In Stock, only 2 left!

0

0171

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0176

Snapper 703136

WASHER, Flat, 1/4

$3.99

$

In Stock, only 1 left!

0

0177

Snapper 703124

SPACER, 1/4 x 1/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0178

Snapper 1737329

BELLCRANK
(Superseded to 1737329YP)

$29.99

$

Usually ships in 2-12 days

0

0179

Snapper 1737328A

BRACKET, Lower
(Superseded to 1737328AYP)

$11.99

$

Usually ships in 2-12 days

0

0180

Snapper 1737297

BRACKET, Support, Auger Idler
(Superseded to 1737297YP)

$9.49

$

Usually ships in 2-12 days

0

0190

Snapper 1737347BM

BRACKET, Guide Wheel
(Superseded to 1737347BMYP)

$13.99

$

Usually ships in 2-12 days

0

0191

Snapper 703234

CAPSCREW, Hex Head, 1/4-20 x 1-1/2 GR5

$4.49

$

In Stock, only 4 left!

0

0192

Snapper 724621

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 7

0

0193

Snapper 703233

NUT, Flange, Serrated, 1/4-20, GR5

$4.49

$

In Stock, Qty 5

0

0200

Snapper 722378

IDLER, Plastic Ball Bearing
(Superseded to 1502120MA)

$21.99

$

In Stock, Qty 6

0

0210

Snapper 703230

NUT, Center Lock, 3/8-16

$4.99

$

In Stock, Qty 9

0

0220

Snapper 703227

BOLT, Carriage, 3/8-16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 1737296

AUGER IDLER
(Superseded to 1737296YP)

$57.99

$

Usually ships in 2-12 days

0

0250

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 1733451

ARM, Control
(Superseded to 1733451SM)

$20.99

$

In Stock, only 3 left!

0

0270

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 703313

PIN, Clevis

$4.99

$

In Stock, Qty 5

0

0290

Snapper 1737221BM

PANEL, Bottom
(Superseded to 1737221BMYP)

$43.99

$

Usually ships in 2-12 days

0

0300

Snapper 1927429

SCREW, Hex Washer Head, Thread Roll, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Snapper 1737350

SPRING, Torsion
(Superseded to 1737350YP)

$7.99

$

In Stock, only 1 left!

0

0320

Snapper 1737106D

FRAME, Red
(Superseded to 1737106DYP)

$125.99

$

Usually ships in 2-12 days

0

0320

Snapper 1737106BS

FRAME, Charcoal Gray
(Superseded to 1737106BSYP)

$113.99

$

Usually ships in 2-12 days

0

0330

Snapper 1754136D

PLATE, Engine, Red
(Superseded to 1754136DYP)

$68.99

$

Usually ships in 2-12 days

0

0330

Snapper 1754136BS

PLATE, Engine, Charcoal Gray
(Superseded to 1754136BSYP)

$58.99

$

Usually ships in 2-12 days

0

0350

Snapper 703235

SCREW, Thread Roll, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1750551

COVER, Belt
(Superseded to 1750551YP)

$26.99

$

Usually ships in 2-12 days

0

0370

Snapper 1751355

SCREW, Hex Washer Head, SEMS, Tapping, 1/4-20 x 3/4
(Superseded to 1751355YP)

$6.49

$

Usually ships in 2-12 days

0

0420

Snapper 7023590

COTTER PIN, Self Locking, 1/4
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0
