GZ 7100 - RedMax Chainsaw (2017-10) CYLINDER PISTON Parts Diagram

Chainsaw

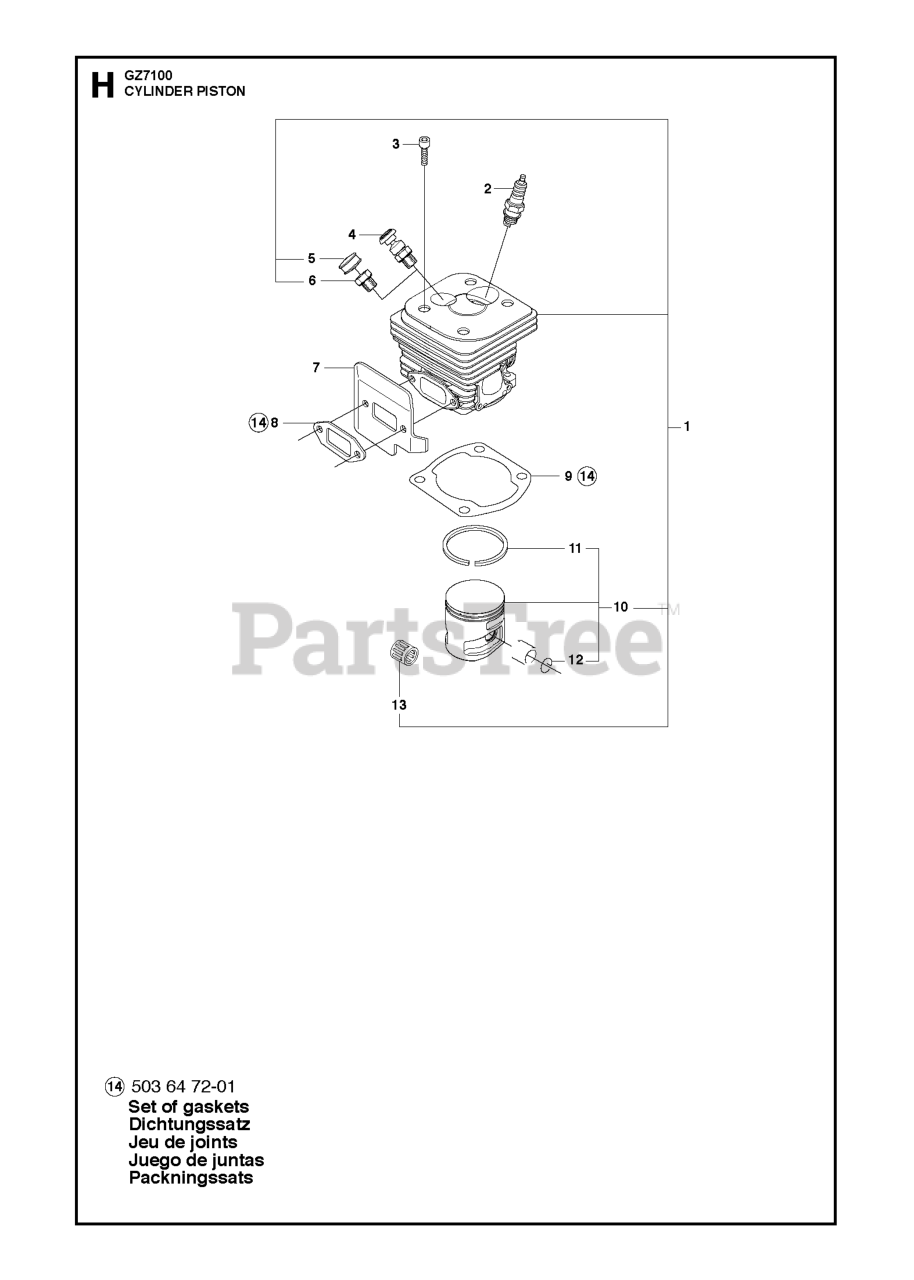

CYLINDER PISTON Parts Diagram

  • Title

1

RedMax 575255702

CYLINDER ASSY

$241.99

$

In Stock, only 1 left!

0

2

RedMax 503235111

BPMR7A NGK SPARK PLUG

Note: NGK BPMR7A

$3.49

$

In Stock, Qty 20+

0

3

RedMax 525824903

SCREW ITXSCM M5X25 T27 12.9 T

$6.49

$

Usually ships in 3-10 days

0

4

RedMax 584288701

VALVE

$66.99

$

In Stock, only 1 left!

0

5

RedMax 537207101

PLUG

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

6

RedMax 503552201

CYLINDER PLUG

Note: . 1

$13.99

$

In Stock, only 2 left!

0

7

RedMax 523049101

DEFLECTOR

$7.99

$

In Stock, only 1 left!

0

8

RedMax 503775901

GASKET

Note: . 14

$9.49

$

Usually ships in 3-10 days

0

9

RedMax 503961501

GASKET

Note: . 14

$9.49

$

In Stock, only 2 left!

0

10

RedMax 577207702

PISTON ASSY

Note: . 1

$91.99

$

Usually ships in 3-10 days

0

11

RedMax 576818401

PISTON RING

Note: . 1 10

$20.99

$

In Stock, only 1 left!

0

12

RedMax 737431200

WRIST PIN CLIP

Note: . 1 10

$7.49

$

In Stock, only 2 left!

0

13

RedMax 577572401

NEEDLE BEARING PISTON PIN 12X1

Note: . 1

$21.99

$

In Stock, only 1 left!

0

14

RedMax 503647201

GASKET SET

Note: Set of gaskets. 1

$17.99

$

Usually ships in 3-10 days

0
