GZ 7100 - RedMax Chainsaw (2017-10) CARBURETOR Parts Diagram

Chainsaw

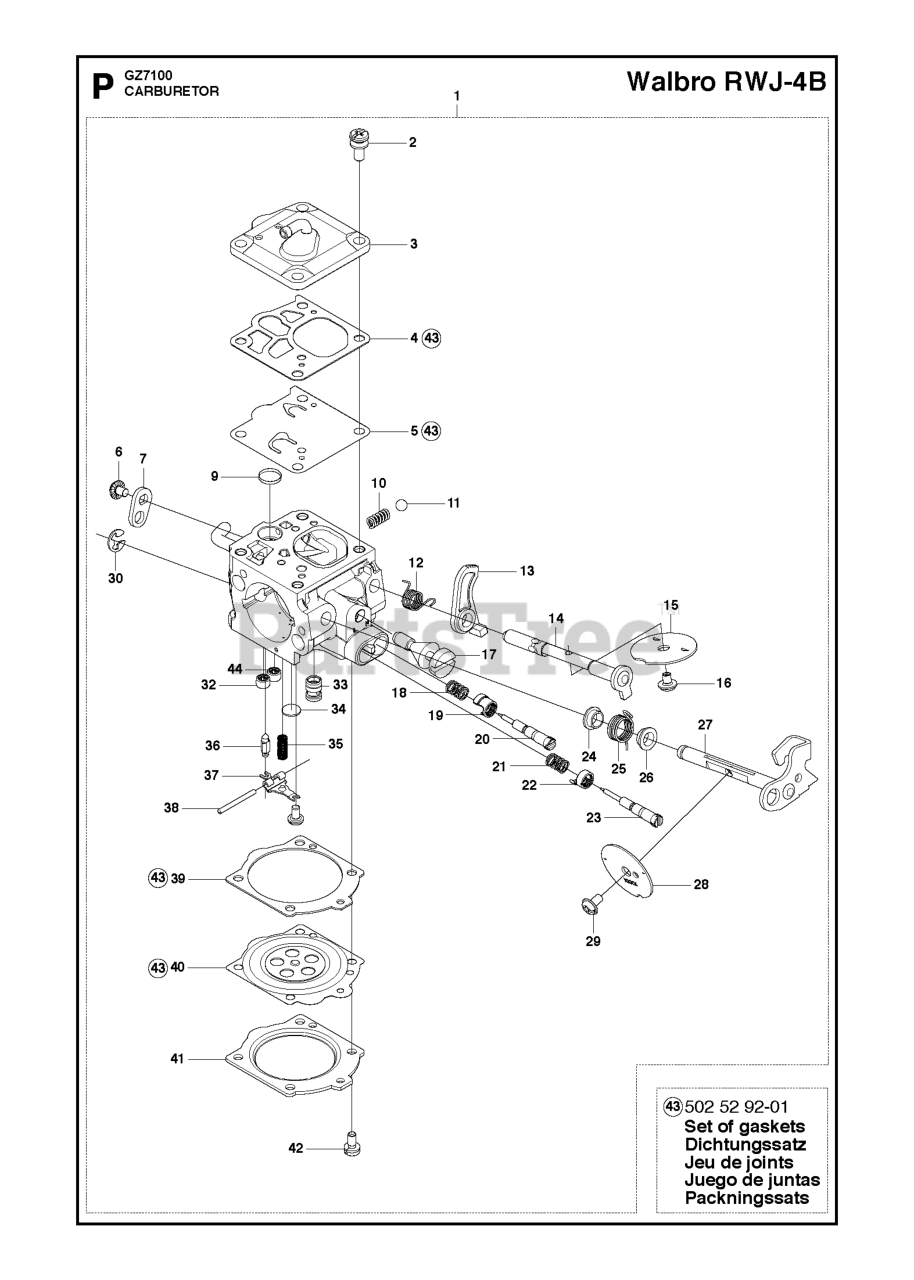

CARBURETOR Parts Diagram

  • Title

1

RedMax 581100701

CARBURETTOR RWJ-4B

Note: Walbro RWJ-4B

$125.99

$

Usually ships in 3-10 days

0

2

RedMax 503117501

SCREW W/ WASHER

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

3

RedMax 522923501

PUMP COVER

Note: . 1

$

$

Not available

4

RedMax 503117201

GASKET

Note: . 1 43

$11.99

$

In Stock, only 1 left!

0

5

RedMax 544897201

DIAPHRAM PUMP

Note: . 1 43

$26.99

$

In Stock, only 2 left!

0

6

RedMax 501468701

SCREW

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

7

RedMax 504790701

LEVER CHOKE

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 501666101

FUEL INLET SCREEN

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

10

RedMax 503117701

SPRING

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

11

RedMax 503117101

BALL 394

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

12

RedMax 504791501

SPRING CHOKE

Note: . 1

$20.99

$

In Stock, only 2 left!

0

13

RedMax 537409201

LEVER

Note: . 1

$7.49

$

In Stock, only 3 left!

0

14

RedMax 504790501

SHAFT ASSY

Note: . 1

$49.99

$

Usually ships in 3-10 days

0

15

RedMax 544896801

VALVE

Note: . 1

$

$

Not available

16

RedMax 537003401

SCREW
(Superseded to 501468701)

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

17

RedMax 585186701

IDLE SPEED SCREW

Note: . 1

$18.99

$

Usually ships in 3-10 days

0

18

RedMax 544971001

SPRING

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

19

RedMax 544970801

LIMITER CAP

Note: . 1

$8.99

$

In Stock, only 2 left!

0

20

RedMax 522923901

NEEDLE

Note: . 1

$11.53

$

Usually ships in 3-10 days

0

21

RedMax 544971001

SPRING

Note: . 1

$10.99

$

Usually ships in 3-10 days

0

22

RedMax 544970801

LIMITER CAP

Note: . 1

$8.99

$

In Stock, only 2 left!

0

23

RedMax 544971301

NEEDLE

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

24

RedMax 502103101

BUSHING

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

25

RedMax 576138201

SPRING

Note: . 1

$17.99

$

Usually ships in 3-10 days

0

26

RedMax 502103101

BUSHING

Note: . 1

$11.99

$

Usually ships in 3-10 days

0

27

RedMax 522923701

SHAFT ASSY

Note: . 1

$35.76

$

Usually ships in 3-10 days

0

28

RedMax 577657901

VALVE THROTTLE

Note: . 1

$

$

Not available

29

RedMax 537003401

SCREW
(Superseded to 501468701)

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

30

RedMax 505316736

E CLIP
(Superseded to 502119801)

Note: . 1

$9.49

$

Usually ships in 3-10 days

0

32

RedMax 580642301

CHECK VALVE IDLE JET

Note: . 1

$

$

Not available

33

RedMax 577699801

MAIN NOZZLE

Note: . 1

$15.99

$

Usually ships in 3-10 days

0

34

RedMax 504790801

PLUG WELCH

Note: . 1

$7.99

$

In Stock, Qty 8

0

35

RedMax 504791201

SPRING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 503563401

INLET NEEDLE

Note: . 1

$17.99

$

In Stock, Qty 9

0

37

RedMax 505316734

LEVER

Note: . 1

$13.99

$

In Stock, Qty 7

0

38

RedMax 505316731

PIN

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

39

RedMax 501467501

GASKET

Note: . 1 43

$10.99

$

In Stock, only 2 left!

0

40

RedMax 503635801

DIAPHRAGM ASSY
(Superseded to 505316715)

Note: . 1 43

$91.99

$

Usually ships in 3-10 days

0

41

RedMax 505316702

DIAPHRAM COVER

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

42

RedMax 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

Note: . 1

$4.99

$

In Stock, only 4 left!

0

43

RedMax 502529201

GASKET KIT

Note: Set of gaskets

$31.99

$

Usually ships in 3-10 days

0

44

RedMax 577699701

CHECK VALVE ASSY

Note: . 1

$

$

Not available
