GZ 550 - RedMax Chainsaw FUEL SYSTEM Parts Diagram

Chainsaw

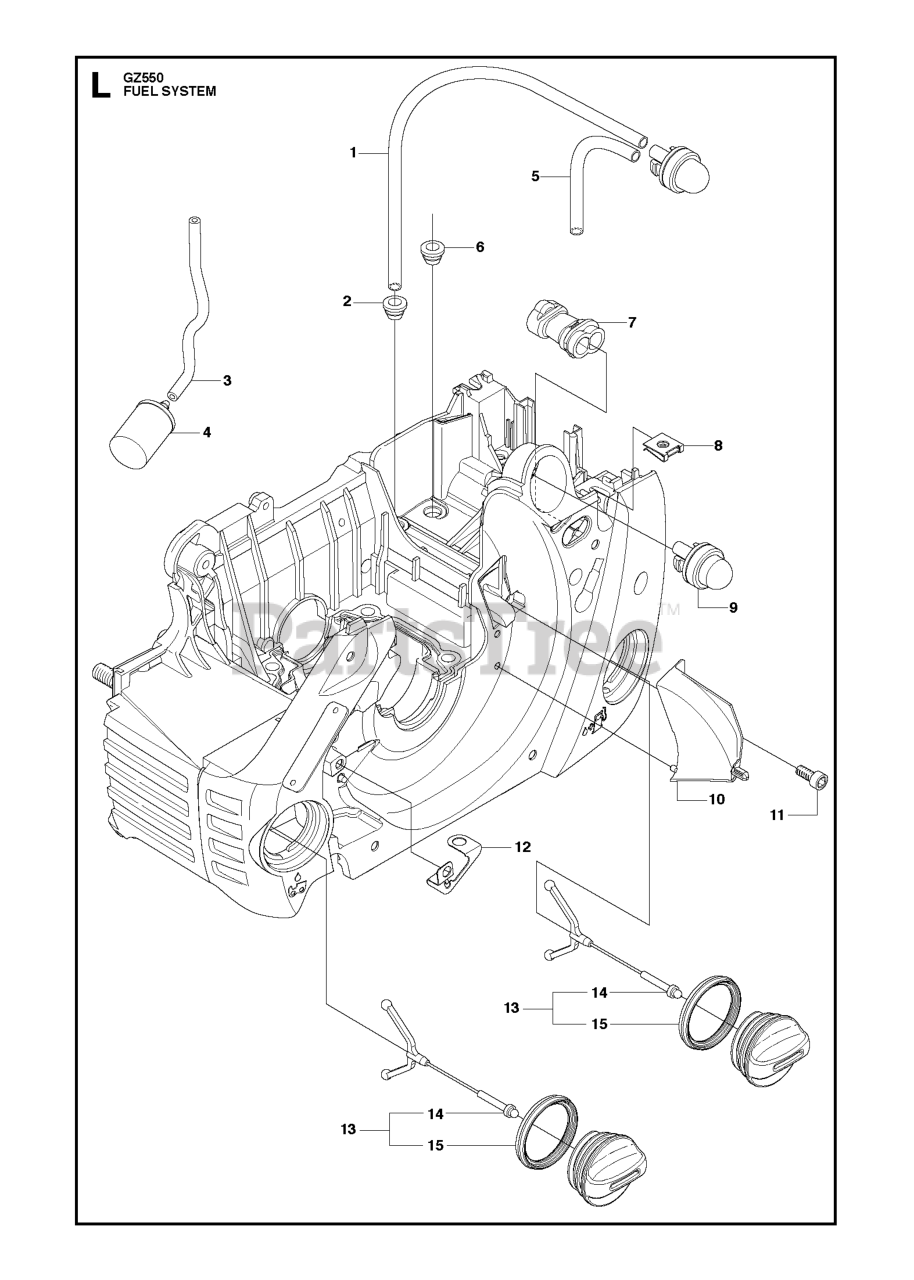

FUEL SYSTEM Parts Diagram

  • Title

1

RedMax 537042408

HOSE

$7.49

$

Usually ships in 3-10 days

0

2

RedMax 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$7.99

$

In Stock, Qty 20+

0

3

RedMax 581756202

FUEL HOSE SPIRAL 300
(Superseded to 591375201)

$5.99

$

In Stock, Qty 20+

0

4

RedMax 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

5

RedMax 537042402

FUEL HOSE/38MM

$8.99

$

In Stock, Qty 10

0

6

RedMax 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$7.99

$

In Stock, Qty 20+

0

7

RedMax 544071401

GUIDE SLEEVE CARB

$5.99

$

Usually ships in 3-10 days

0

8

RedMax 503226902

CLIP

$5.99

$

In Stock, only 3 left!

0

9

RedMax 503936601

AIR PURGE BUBBLE

$21.99

$

Usually ships in 3-10 days

0

10

RedMax 537317901

JET

$9.99

$

Usually ships in 3-10 days

0

11

RedMax 503217412

SCREW

$3.49

$

In Stock, Qty 8

0

12

RedMax 537278001

SWITCH PLATE

$8.99

$

Usually ships in 3-10 days

0

13

RedMax 544111204

TANK CAP ASSY
(Superseded to 544111203)

$6.99

$

In Stock, Qty 16

0

14

RedMax 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

15

RedMax 589241101

SEALING

$8.99

$

In Stock, only 2 left!

0
