GZ 550 - RedMax Chainsaw CARBURETOR DETAILS Parts Diagram

Chainsaw

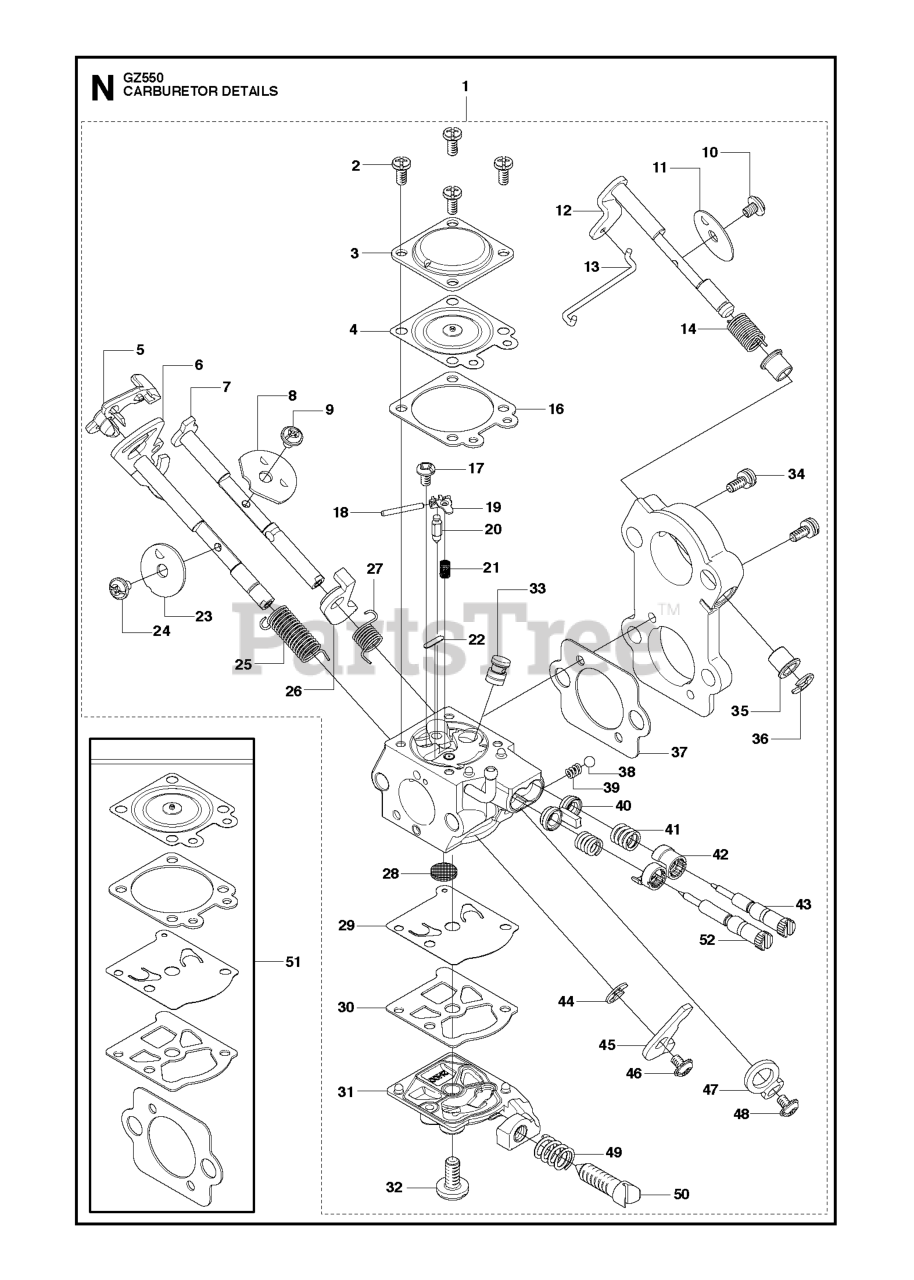

CARBURETOR DETAILS Parts Diagram

  • Title

1

RedMax 544883001

CARBURETOR

Note: WALBRO, WTEA-1

$133.99

$

Usually ships in 3-10 days

0

2

RedMax 503584601

SCREW

$4.99

$

In Stock, Qty 5

0

3

RedMax 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

4

RedMax 502847001

DIAPHRAGM

$62.99

$

Usually ships in 3-10 days

0

5

RedMax 537306201

BUCKLE

$34.99

$

In Stock, only 1 left!

0

6

RedMax 537407401

SHAFT

$34.99

$

Usually ships in 3-10 days

0

7

RedMax 537407501

SHAFT

$20.76

$

Usually ships in 3-10 days

0

8

RedMax 537407701

VALVE

$

$

Not available

9

RedMax 537003401

SCREW
(Superseded to 501468701)

$7.99

$

Usually ships in 3-10 days

0

10

RedMax 537003401

SCREW
(Superseded to 501468701)

$7.99

$

Usually ships in 3-10 days

0

11

RedMax 537406801

CHOKE FLAP

$6.91

$

Usually ships in 3-10 days

0

12

RedMax 537406901

SHAFT

$21.99

$

Usually ships in 3-10 days

0

13

RedMax 537407201

ROD

$13.99

$

In Stock, only 1 left!

0

14

RedMax 537407001

SPRING

$3.49

$

Usually ships in 3-10 days

0

16

RedMax 504350906

GASKET

$11.99

$

In Stock, Qty 7

0

17

RedMax 502847101

SCREW

$7.99

$

Usually ships in 3-10 days

0

18

RedMax 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

19

RedMax 502847401

LEVER

$7.49

$

Usually ships in 3-10 days

0

20

RedMax 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

21

RedMax 503914701

SPRING

$11.99

$

Usually ships in 3-10 days

0

22

RedMax 502846901

PLUG

$10.99

$

Usually ships in 3-10 days

0

23

RedMax 502846601

VALVE

$9.49

$

Usually ships in 3-10 days

0

24

RedMax 544111501

SCREW

$7.99

$

Usually ships in 3-10 days

0

25

RedMax 537408401

SPRING

$4.99

$

Usually ships in 3-10 days

0

26

RedMax 537409201

LEVER

$7.49

$

In Stock, only 3 left!

0

27

RedMax 537408601

SPRING

$6.49

$

Usually ships in 3-10 days

0

28

RedMax 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

29

RedMax 502213601

DIAPHRAGM, FUEL PUMP
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

30

RedMax 504130906

GASKET

$11.99

$

In Stock, only 3 left!

0

31

RedMax 537407301

COVER

$34.99

$

Usually ships in 3-10 days

0

32

RedMax 501466901

SCREW

$9.49

$

In Stock, Qty 5

0

33

RedMax 502846801

NOZZLE ASSY

$12.99

$

Usually ships in 3-10 days

0

34

RedMax 537408301

SCREW

$9.49

$

Usually ships in 3-10 days

0

35

RedMax 537406601

SLEEVE

$2.49

$

Usually ships in 3-10 days

0

36

RedMax 505316736

E CLIP
(Superseded to 502119801)

$9.49

$

Usually ships in 3-10 days

0

37

RedMax 537408101

GASKET

$11.99

$

Usually ships in 3-10 days

0

38

RedMax 501468501

BALL
(Superseded to 530035107)

$

$

Not available

39

RedMax 501468401

SPRING

$7.99

$

In Stock, only 1 left!

0

40

RedMax 544971401

RETAINER

$30.99

$

Usually ships in 3-10 days

0

41

RedMax 544971001

SPRING

$10.99

$

Usually ships in 3-10 days

0

42

RedMax 544970801

LIMITER CAP

$8.99

$

In Stock, only 2 left!

0

43

RedMax 502847201

NEEDLE

Note: High Speed

$8.99

$

Usually ships in 3-10 days

0

44

RedMax 505316736

E CLIP
(Superseded to 502119801)

$9.49

$

Usually ships in 3-10 days

0

45

RedMax 537407101

LEVER

$7.49

$

Usually ships in 3-10 days

0

46

RedMax 501468701

SCREW

$7.99

$

Usually ships in 3-10 days

0

47

RedMax 537407601

PLATE

$8.99

$

In Stock, only 4 left!

0

48

RedMax 501468701

SCREW

$7.99

$

Usually ships in 3-10 days

0

49

RedMax 503564201

SPRING

$11.99

$

In Stock, only 1 left!

0

50

RedMax 537408201

SCREW

$17.99

$

In Stock, only 1 left!

0

51

RedMax 505278401

GASKET SET

Note: Set of Gaskets

$31.99

$

In Stock, only 1 left!

0

52

RedMax 502847301

NEEDLE

Note: Low Speed

$10.99

$

Usually ships in 3-10 days

0
