GZ 5000 - RedMax Chainsaw CYLINDER PISTON Parts Diagram

Chainsaw

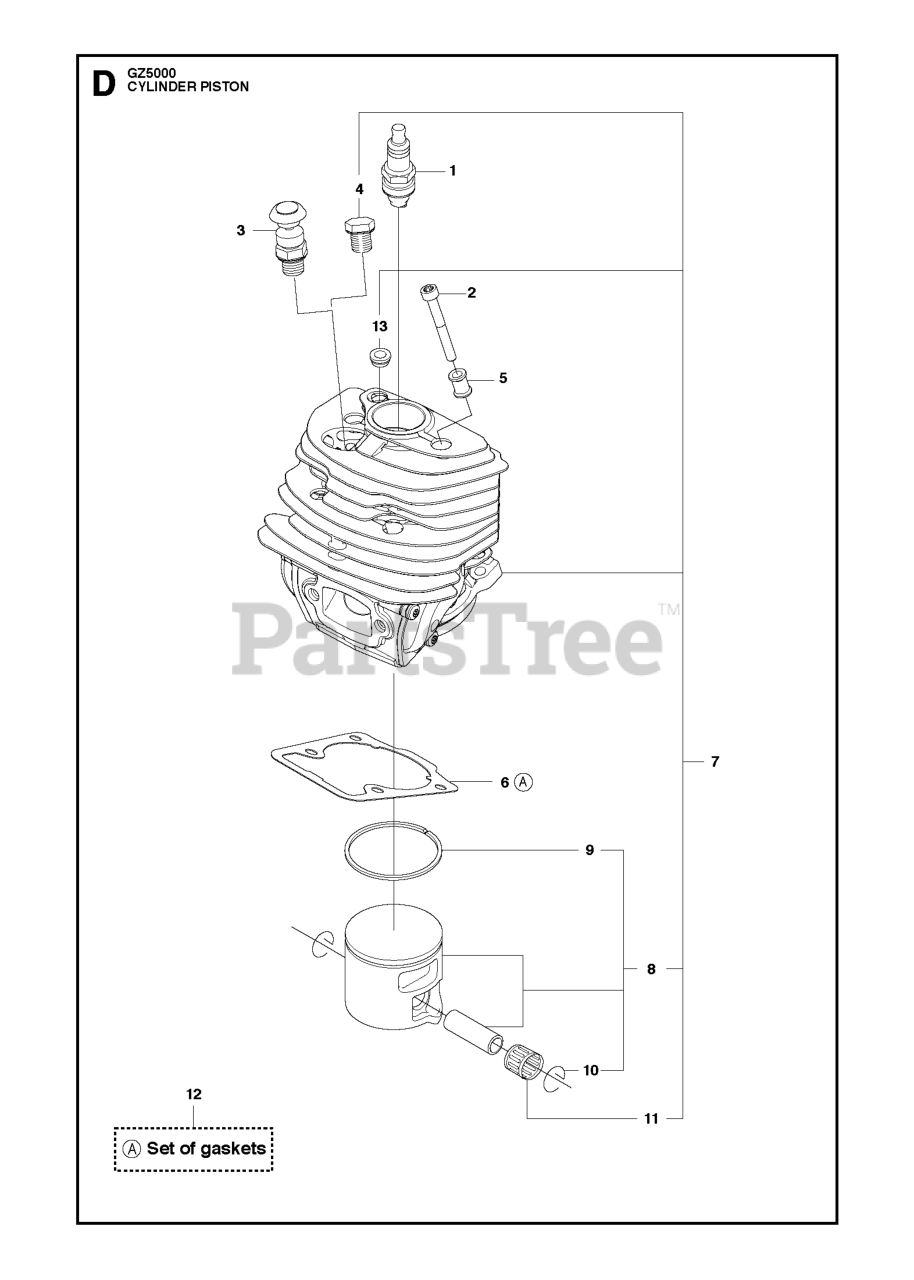

CYLINDER PISTON Parts Diagram

  • Title

1

RedMax 574519601

CMR6H SPARK PLUG NGK
(Superseded to 531008615)

$4.99

$

In Stock, Qty 20+

0

2

RedMax 582392701

SCREW HEXABOULAR SOCKET HEAD C

$6.49

$

Usually ships in 3-10 days

0

3

RedMax 575276901

DECOMPRESSION VALVE

$31.99

$

Usually ships in 3-10 days

0

4

RedMax 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0

5

RedMax 576717602

SLEEVE

$6.49

$

Usually ships in 3-10 days

0

6

RedMax 525315801

GASKET

$4.99

$

In Stock, only 2 left!

0

7

RedMax 577764706

CYLINDER-PISTON ASSY

$

$

Not available

8

RedMax 577047006

PISTON ASSY

$

$

Not available

9

RedMax 577958301

PISTON RING

$20.99

$

Usually ships in 3-10 days

0

10

RedMax 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

11

RedMax 503256302

SUPPORT BUSHING

$24.99

$

In Stock, only 1 left!

0

12

RedMax 577766603

GASKET KIT 50CC

Note: A=set of gaskets

$17.99

$

In Stock, only 1 left!

0

13

RedMax 520291101

BUSHING

$5.99

$

Usually ships in 3-10 days

0
