GZ 5000 - RedMax Chainsaw CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

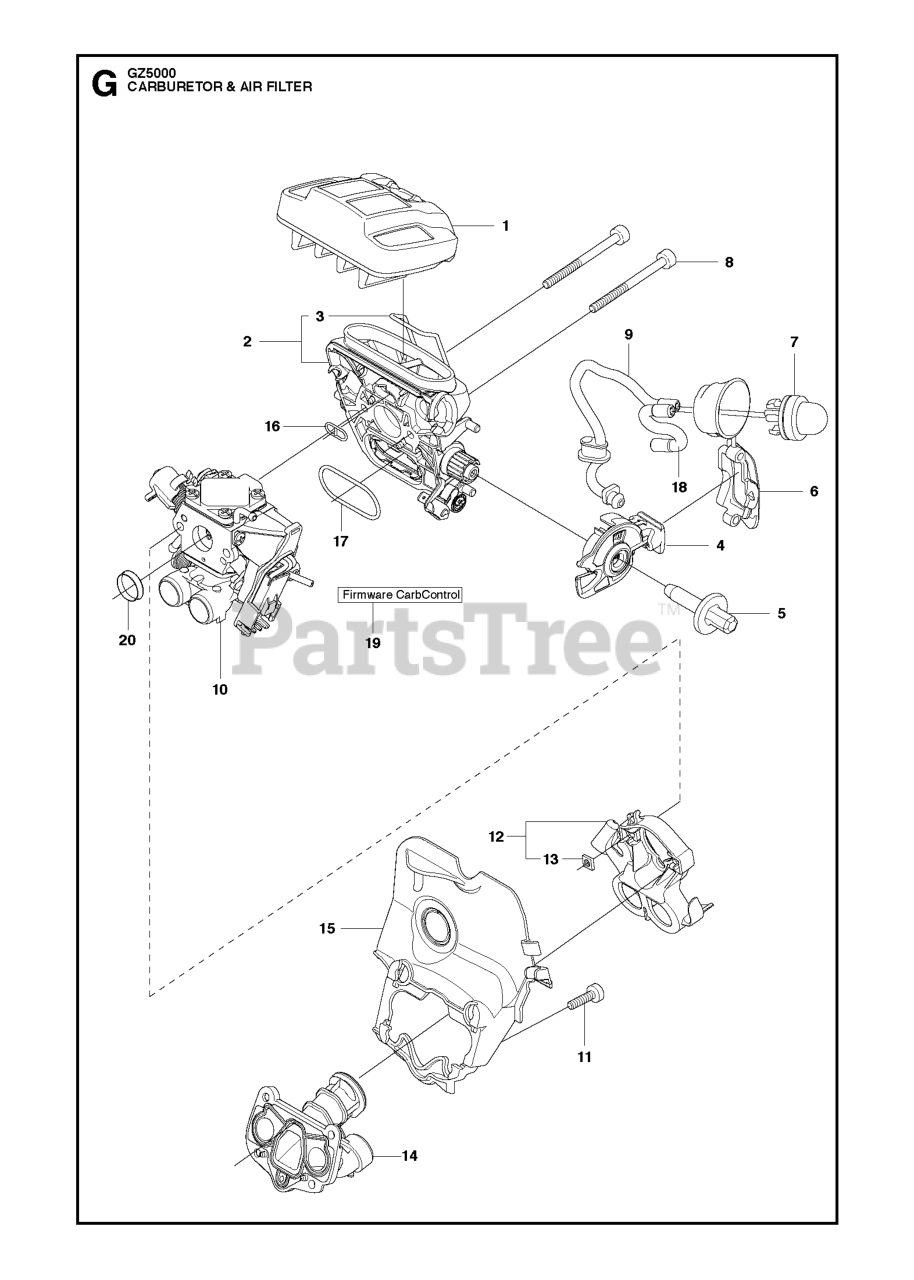

CARBURETOR & AIR FILTER Parts Diagram

  • Title

1

RedMax 522675404

AIR FILTER

Note: NYLON 80 µm black

$24.99

$

In Stock, only 3 left!

0

1

RedMax 522675405

AIR FILTER ASSY

Note: NYLON 44 µm yellow

$17.99

$

In Stock, only 1 left!

0

1

RedMax 522675406

AIR FILTER

Note: FELT white

$22.99

$

Usually ships in 3-10 days

0

1

RedMax 522675407

AIR FILTER ASSY

Note: NYLON 25 µm orange

$31.99

$

Usually ships in 3-10 days

0

2

RedMax 574198903

FILTER HOLDER ASSY

$36.99

$

Usually ships in 3-10 days

0

3

RedMax 522907301

SHACKLE

$5.99

$

Usually ships in 3-10 days

0

4

RedMax 510017202

CHOKE CONTROL ASSY CHOKE/STOP

$12.99

$

In Stock, only 1 left!

0

5

RedMax 505156201

SCREW

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 525588101

SEALING

$6.99

$

Usually ships in 3-10 days

0

7

RedMax 503936601

AIR PURGE BUBBLE

$21.99

$

Usually ships in 3-10 days

0

8

RedMax 574353503

SCREW ITXSCM

$6.49

$

Usually ships in 3-10 days

0

9

RedMax 589357101

VENTILATING HOSE,KIT

Note: Up to s/n 20153900096

$27.99

$

In Stock, only 1 left!

0

9

RedMax 587645404

FUEL HOSE

Note: From s/n 20153900097

$24.99

$

Usually ships in 3-10 days

0

10

RedMax 587084804

CARBURETTOR KIT
(Superseded to 587084807)

Note: AT-7B

$241.99

$

Usually ships in 3-10 days

0

11

RedMax 526818101

SCREW ITXSCM M4X15 T27 12.9 T

$6.49

$

In Stock, only 2 left!

0

12

RedMax 523064002

FLANGE

$9.99

$

Usually ships in 3-10 days

0

13

RedMax 503226503

NUT SQUARE

$4.99

$

In Stock, only 2 left!

0

14

RedMax 525500003

INLET PIPE ASSY

$44.99

$

Usually ships in 3-10 days

0

15

RedMax 522951001

INTERMEDIATE WALL

$5.99

$

Usually ships in 3-10 days

0

16

RedMax 525619201

SEALING

$3.49

$

In Stock, Qty 8

0

17

RedMax 525619001

SEALING

$6.99

$

In Stock, Qty 7

0

18

RedMax 523056801

FUEL HOSE

$5.99

$

In Stock, only 1 left!

0

19

NA

Note: Download from your local supportsite

$

$

Not available

20

RedMax 585195001

SUPPORT SLEEVE

$8.99

$

In Stock, only 1 left!

0
