GZ 500 - RedMax Chainsaw CRANKCASE Parts Diagram

Chainsaw

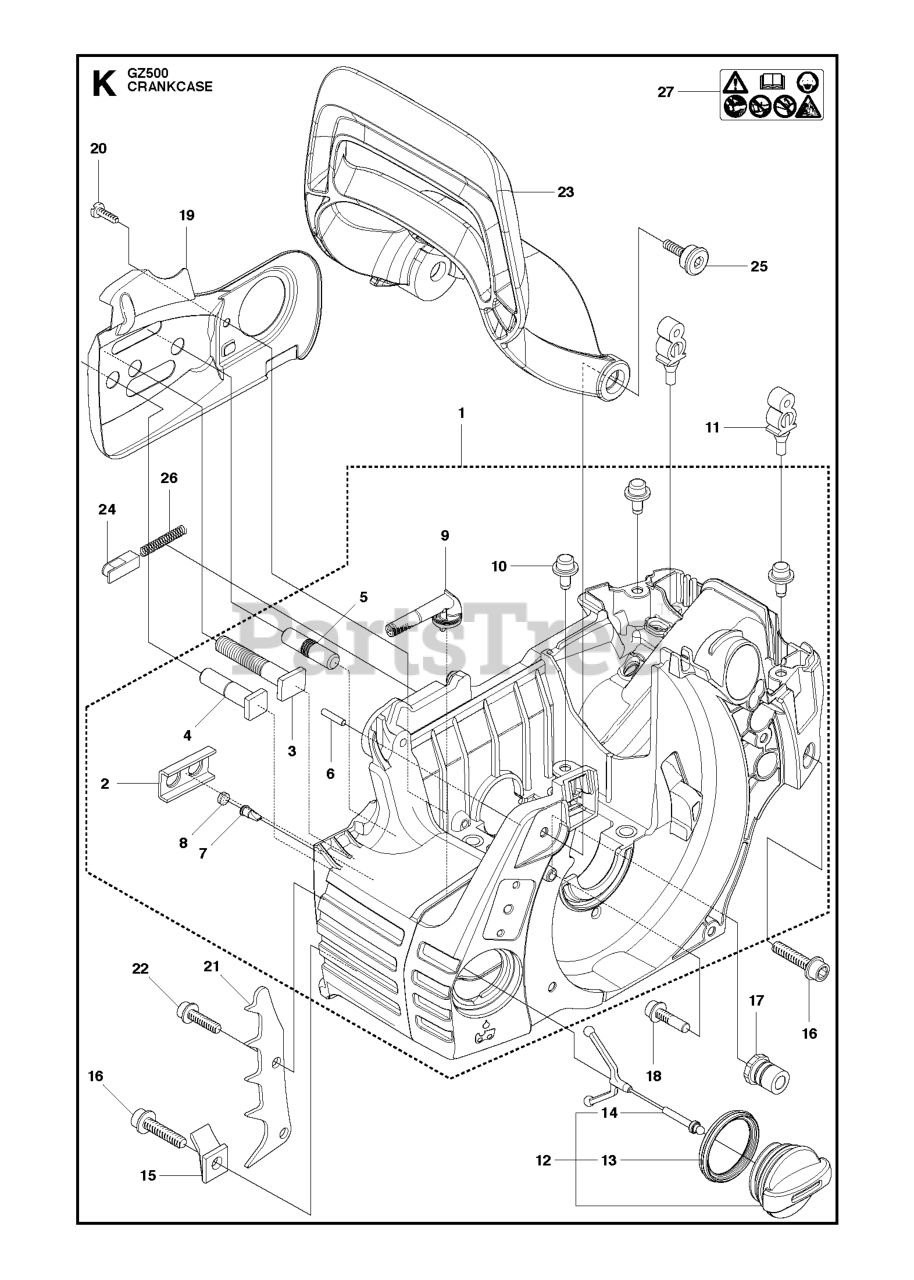

CRANKCASE Parts Diagram

  • Title

1

RedMax 537438203

CRANKCASE

$91.99

$

Usually ships in 3-10 days

0

2

RedMax 503875802

STIFFENING PLATE

$7.49

$

In Stock, Qty 16

0

3

RedMax 503875402

BAR BOLT

$8.99

$

In Stock, only 1 left!

0

4

RedMax 537334601

BAR BOLT (X2)

$8.99

$

In Stock, only 1 left!

0

5

RedMax 544036401

BAR BOLT

$7.49

$

In Stock, only 1 left!

0

6

RedMax 503240905

PIN

$6.49

$

In Stock, only 1 left!

0

7

RedMax 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 8

0

8

RedMax 537403501

FILTER
(Superseded to 537403502)

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 544083301

OIL SCREEN

$8.99

$

In Stock, Qty 7

0

10

RedMax 544331601

GUIDE PEN

$6.49

$

Usually ships in 3-10 days

0

11

RedMax 503869301

CARBURETOR MOUNTING

$8.49

$

Usually ships in 3-10 days

0

12

RedMax 544111204

TANK CAP ASSY
(Superseded to 544111203)

$6.99

$

In Stock, Qty 16

0

13

RedMax 589241101

SEALING

$8.99

$

In Stock, only 2 left!

0

14

RedMax 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

15

RedMax 503886301

CHAIN CATCHER PIN

$10.99

$

In Stock, only 1 left!

0

16

RedMax 544316201

SCREW IHSCFT
(Superseded to 503218876)

$6.49

$

In Stock, Qty 20+

0

17

RedMax 501007601

LATERAL SUPPORT

$7.49

$

In Stock, only 4 left!

0

18

RedMax 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

19

RedMax 544094001

CHAIN GUIDE PLATE

$12.99

$

In Stock, only 2 left!

0

20

RedMax 503217010

SCREW CCRPANT

$4.99

$

In Stock, Qty 17

0

21

RedMax 503905901

FELLING DOG

$10.99

$

Usually ships in 3-10 days

0

22

RedMax 503217520

SCREW

$6.49

$

In Stock, Qty 7

0

23

RedMax 502300901

HAND GUARD

$34.99

$

Usually ships in 3-10 days

0

24

RedMax 503892401

CATCH

$9.99

$

In Stock, Qty 8

0

25

RedMax 503893001

SCREW

$5.99

$

In Stock, only 2 left!

0

26

RedMax 503436501

POSITION SPRING

$7.49

$

In Stock, only 4 left!

0

27

RedMax 505557601

DECAL

$5.58

$

Usually ships in 3-10 days
