GZ 4500 - RedMax Chainsaw (SN: 703782 & Above) (2012-08) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

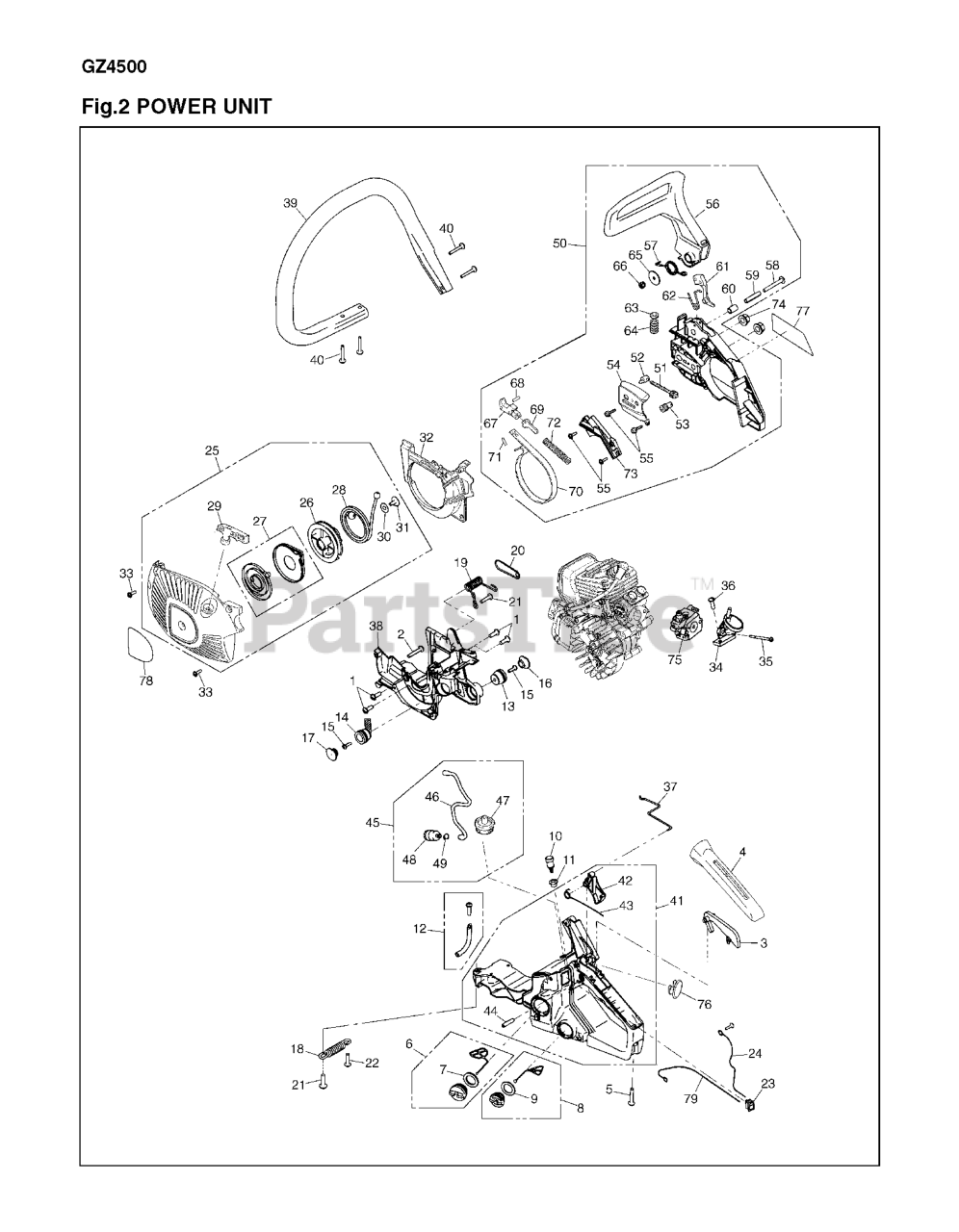

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title
1

RedMax 513615701

RP_SCREW
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 7

0

3

RedMax 521556501

ARM (RPLS 335633350-335633352)

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 513621201

CAP
(Superseded to 579517901)

$9.49

$

Usually ships in 3-10 days

0

7

RedMax 513621301

GASKET
(Superseded to 579518001)

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 521554501

CAP ASSY

$5.99

$

Usually ships in 3-10 days

0

9

RedMax 505046101

GASKET
(Superseded to 579519001)

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 513751501

BREATHER
(Superseded to 574007901)

$13.99

$

Usually ships in 3-10 days

0

11

RedMax 514201401

GROMMET
(Superseded to 574012901)

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 511101501

PIPE COMP (REPL T210031500)

$6.49

$

Usually ships in 3-10 days

0

13

$10.99

$

In Stock, only 2 left!

0

14

$24.99

$

Usually ships in 3-10 days

0

15

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

18

RedMax 512458001

SPRING(F)

$6.49

$

Usually ships in 3-10 days

0

19

$6.49

$

Usually ships in 3-10 days

0

20

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 521518001

SCREW (RPLS 267132210)

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 513615701

RP_SCREW
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

23

RedMax 516970401

SWITCH
(Superseded to 586246901)

$11.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

25

RedMax 521570101

STARTER ASSY

$

$

Not available

$8.99

$

Usually ships in 3-10 days

0

27

$21.99

$

In Stock, only 1 left!

0

$

$

Not available

$6.99

$

In Stock, only 3 left!

0

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 521518001

SCREW (RPLS 267132210)

$4.99

$

Usually ships in 3-10 days

0

32

$4.99

$

Usually ships in 3-10 days

0

33

$4.99

$

In Stock, Qty 7

0

34

RedMax 513791901

MANIFOLD

$14.99

$

Usually ships in 3-10 days

0

$8.99

$

Usually ships in 3-10 days

0

36

$4.99

$

In Stock, Qty 7

0

37

RedMax 512463001

ROD.THROTTLE

$6.49

$

Usually ships in 3-10 days

0

38

RedMax 521793201

CASE, ENGINE

$

$

Not available

39

$60.99

$

Usually ships in 3-10 days

0

40

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 570881701

HANDLE, RIGHT ASSY

$78.99

$

Usually ships in 3-10 days

0

42

$4.99

$

Usually ships in 3-10 days

0

43

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 505048101

SPRING PIN

$3.49

$

Usually ships in 3-10 days

0

45

RedMax 570881901

PIPE ASSY
(Superseded to 579518301)

$31.99

$

Usually ships in 3-10 days

0

46

RedMax 513750601

PIPE
(Superseded to 579518401)

$4.99

$

Usually ships in 3-10 days

0

47

$6.49

$

Usually ships in 3-10 days

0

48

$11.99

$

In Stock, only 2 left!

0

49

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 8

0

50

RedMax 521569801

BRAKE ASSY. (RPLS T212854000)
(Superseded to 527745801)

$194.99

$

Usually ships in 3-10 days

0

51

$21.99

$

Usually ships in 3-10 days

0

$9.99

$

Usually ships in 3-10 days

0

$10.99

$

In Stock, only 1 left!

0

54

RedMax 513758101

PLATE(B)

$9.99

$

Usually ships in 3-10 days

0

55

RedMax 516827201

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

56

$

$

Not available

57

RedMax 513758801

RETURN SPRING
(Superseded to 574008101)

$4.99

$

Usually ships in 3-10 days

0

58

RedMax 513759001

SCREW
(Superseded to 574008201)

$3.99

$

Usually ships in 3-10 days

0

59

RedMax 513759701

SPACER, INNER
(Superseded to 574008301)

$3.99

$

Usually ships in 3-10 days

0

60

RedMax 513760301

SPACER
(Superseded to 574008401)

$2.49

$

Usually ships in 3-10 days

0

61

$6.49

$

Usually ships in 3-10 days

0

62

RedMax 516988401

SPRING
(Superseded to 574080301)

$4.99

$

Usually ships in 3-10 days

0

63

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

65

RedMax 521025401

WASHER
(Superseded to 574013001)

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

67

RedMax 513806601

BRAKE LEVER
(Superseded to 574008701)

$14.99

$

Usually ships in 3-10 days

0

68

RedMax 513807301

ROLLER
(Superseded to 516976701)

$4.99

$

Usually ships in 3-10 days

0

69

RedMax 516825601

ARM
(Superseded to 574005401)

$4.99

$

Usually ships in 3-10 days

0

70

RedMax 513807601

BAND
(Superseded to 527748801)

$

$

Not available

71

RedMax 521075401

ROLLER
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

72

RedMax 516826601

SPRING
(Superseded to 574079301)

$4.99

$

Usually ships in 3-10 days

0

73

$

$

Not available

74

RedMax 575960801

NUT FLANGE

$3.49

$

Usually ships in 3-10 days

0

75

RedMax 511140101

CARBURETOR

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0
