GZ 4350 - RedMax Chainsaw (2017-10) CRANKCASE Parts Diagram

Chainsaw

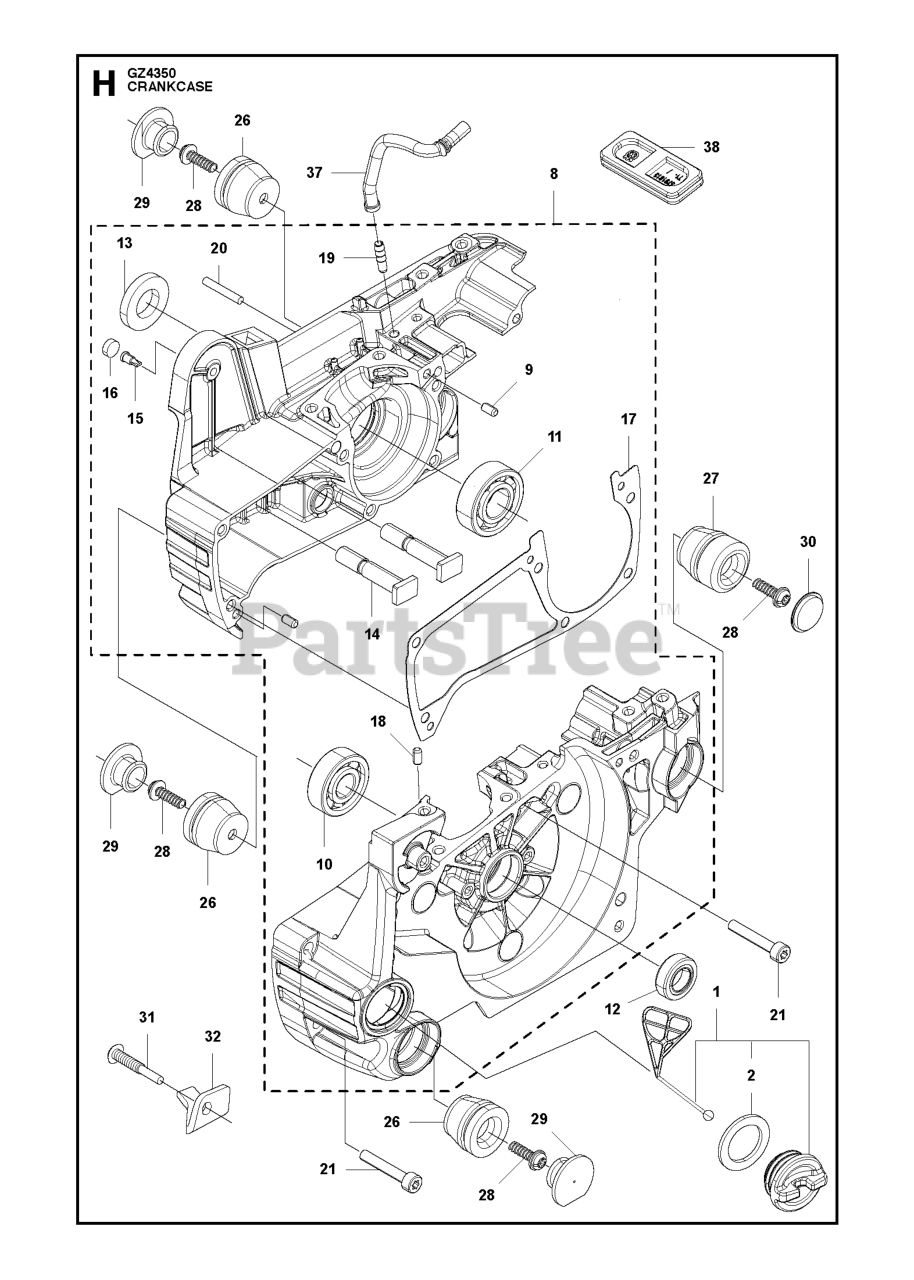

CRANKCASE Parts Diagram

  • Title

1

RedMax 521554501

CAP ASSY

$5.99

$

Usually ships in 3-10 days

0

8

RedMax 582649601

CRANKCASE ASSY

$194.99

$

Usually ships in 3-10 days

0

2

RedMax 505046101

GASKET
(Superseded to 579519001)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 577167401

PIN

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 513746301

BEARING Z285021240
(Superseded to 596449001)

$10.99

$

Usually ships in 3-10 days

0

11

RedMax 502849101

BEARING

$24.99

$

In Stock, only 4 left!

0

12

RedMax 504121501

SEAL

$9.99

$

Usually ships in 3-10 days

0

13

RedMax 581284901

SEAL

$11.99

$

In Stock, only 2 left!

0

14

RedMax 513746201

BOLT

$6.49

$

Usually ships in 3-10 days

0

15

RedMax 516961901

AIR CONTROL BREATHER
(Superseded to 574007801)

$7.49

$

Usually ships in 3-10 days

0

16

RedMax 513746401

SEAL Z285021250

$7.49

$

Usually ships in 3-10 days

0

17

RedMax 576976201

GASKET, CRANKCASE

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 578281201

PIN XC23

$

$

Not available

19

RedMax 578196701

FITTING PULSE XC23

$

$

Not available

20

RedMax 521522401

PIN 8488B42400

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 515388101

BOLT

Note: M5x30-T27

$4.99

$

In Stock, only 3 left!

0

26

RedMax 513560401

DAMPER

$10.99

$

In Stock, only 2 left!

0

27

RedMax 512458301

DAMPER T210035210

$7.99

$

In Stock, only 1 left!

0

28

RedMax 521517901

SCREW

Note: T5x16-T27

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 513826101

CAP

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 513945101

CAP

$3.49

$

Usually ships in 3-10 days

0

31

RedMax 577823701

SCREW T27 XC23

$3.49

$

In Stock, only 4 left!

0

32

RedMax 579210201

CHAIN CATCHER

$5.99

$

Usually ships in 3-10 days

0

37

RedMax 577029501

PIPE

$9.49

$

Usually ships in 3-10 days

0

38

RedMax 579181301

GROMMET

$

$

Not available
