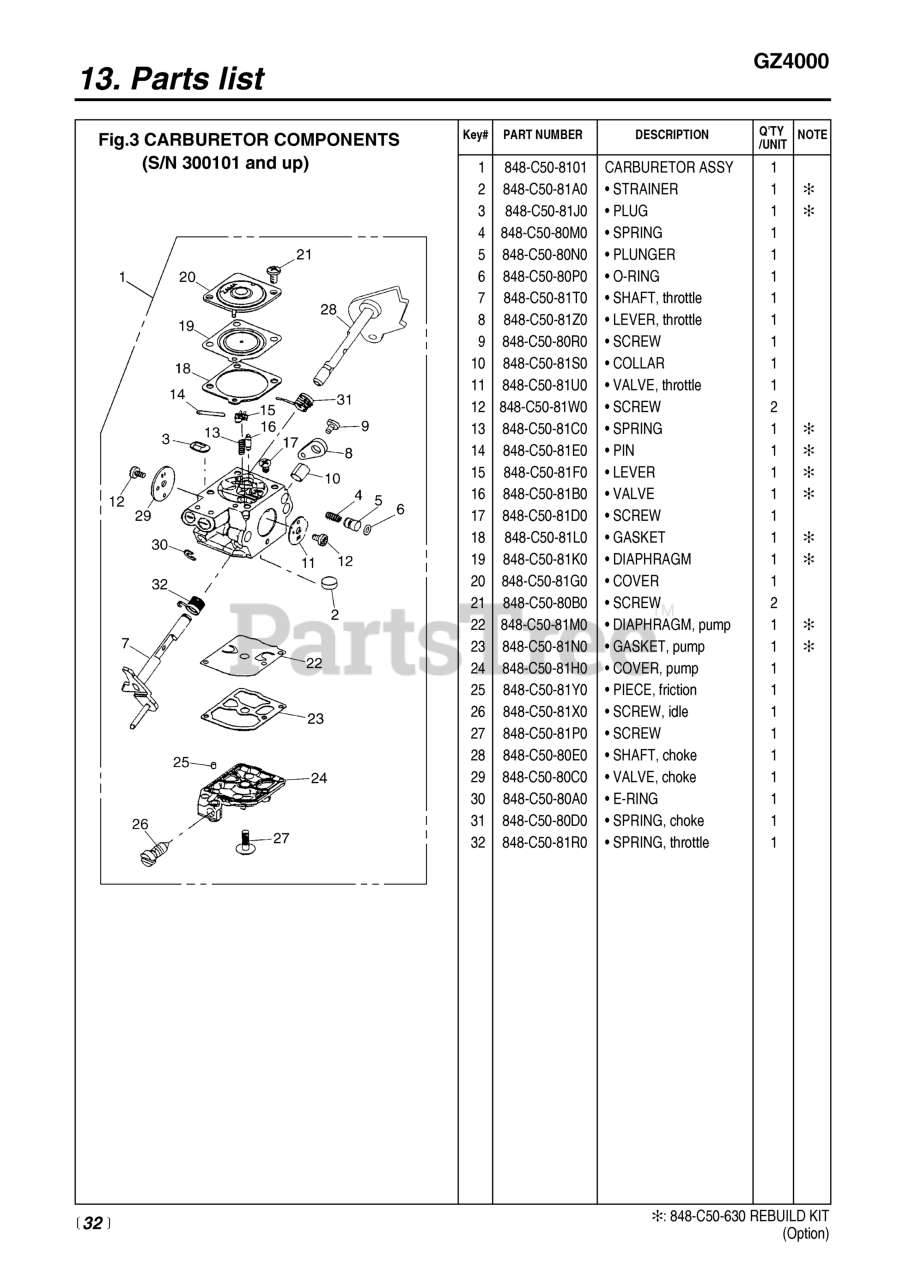

GZ 4000 - RedMax Chainsaw (SN: 300101 & Above) (2005-06) 005 - CARBURETOR Parts Diagram

Chainsaw

005 - CARBURETOR Parts Diagram

  • Title
1

RedMax 848C508101

CARBURETOR-ASSY
(Superseded to 521571201)

$

$

Not available

2

RedMax 848C5081A0

.0004011STRAINER
(Superseded to 521571301)

$

$

Not available

3

RedMax 848C5081J0

PLUG
(Superseded to 521572101)

$

$

Not available

4

RedMax 848C5080M0

SPRING
(Superseded to 521570701)

$

$

Not available

5

RedMax 848C5080N0

PLUNGER
(Superseded to 521570801)

$

$

Not available

6

RedMax 848C5080P0

O-RING
(Superseded to 521570901)

$

$

Not available

7

RedMax 848C5081T0

SHAFT
(Superseded to 521572901)

$24.99

$

Usually ships in 3-10 days

0

8

RedMax 848C5081Z0

LEVER
(Superseded to 521573401)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 848C5080R0

SCREW
(Superseded to 521571001)

$

$

Not available

10

RedMax 848C5081S0

COLLAR
(Superseded to 521572801)

$

$

Not available

11

RedMax 848C5081U0

VALVE
(Superseded to 521573001)

$

$

Not available

12

RedMax 848C5081W0

SCREW
(Superseded to 521573101)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 848C5081C0

SPRING
(Superseded to 521571501)

$

$

Not available

14

RedMax 848C5081E0

PIN
(Superseded to 521571701)

$

$

Not available

15

RedMax 848C5081F0

LEVER
(Superseded to 521571801)

$

$

Not available

16

RedMax 848C5081B0

VALVE
(Superseded to 521571401)

$

$

Not available

17

RedMax 848C5081D0

SCREW
(Superseded to 521571601)

$

$

Not available

18

RedMax 848C5081L0

GASKET
(Superseded to 521572301)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 848C5081K0

DIAPHRAGM
(Superseded to 521572201)

$

$

Not available

20

RedMax 848C5081G0

COVER
(Superseded to 521571901)

$

$

Not available

21

RedMax 848C5080B0

SCREW
(Superseded to 521570301)

$

$

Not available

22

RedMax 848C5081M0

DIAPHRAGM
(Superseded to 521572401)

$

$

Not available

23

RedMax 848C5081N0

GASKET
(Superseded to 521572501)

$

$

Not available

24

RedMax 848C5081H0

COVER
(Superseded to 521572001)

$

$

Not available

25

RedMax 848C5081Y0

PIECE
(Superseded to 521573301)

$

$

Not available

26

RedMax 848C5081X0

SCREW
(Superseded to 521573201)

$

$

Not available

27

RedMax 848C5081P0

SCREW
(Superseded to 521572601)

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 848C5080E0

SHAFT
(Superseded to 521570601)

$

$

Not available

29

RedMax 848C5080C0

VALVE
(Superseded to 521570401)

$

$

Not available

30

RedMax 848C5080A0

E-RING
(Superseded to 521570201)

$

$

Not available

31

RedMax 848C5080D0

SPRING
(Superseded to 521570501)

$

$

Not available

32

RedMax 848C5081R0

SPRING
(Superseded to 521572701)

$

$

Not available

NI

RedMax 848C50630

REBUILD KIT

$

$

Not available
