GZ 4000 - RedMax Chainsaw (SN: 300101 & Above) (2003-12) 030 - POWER UNIT 2 Parts Diagram

Chainsaw

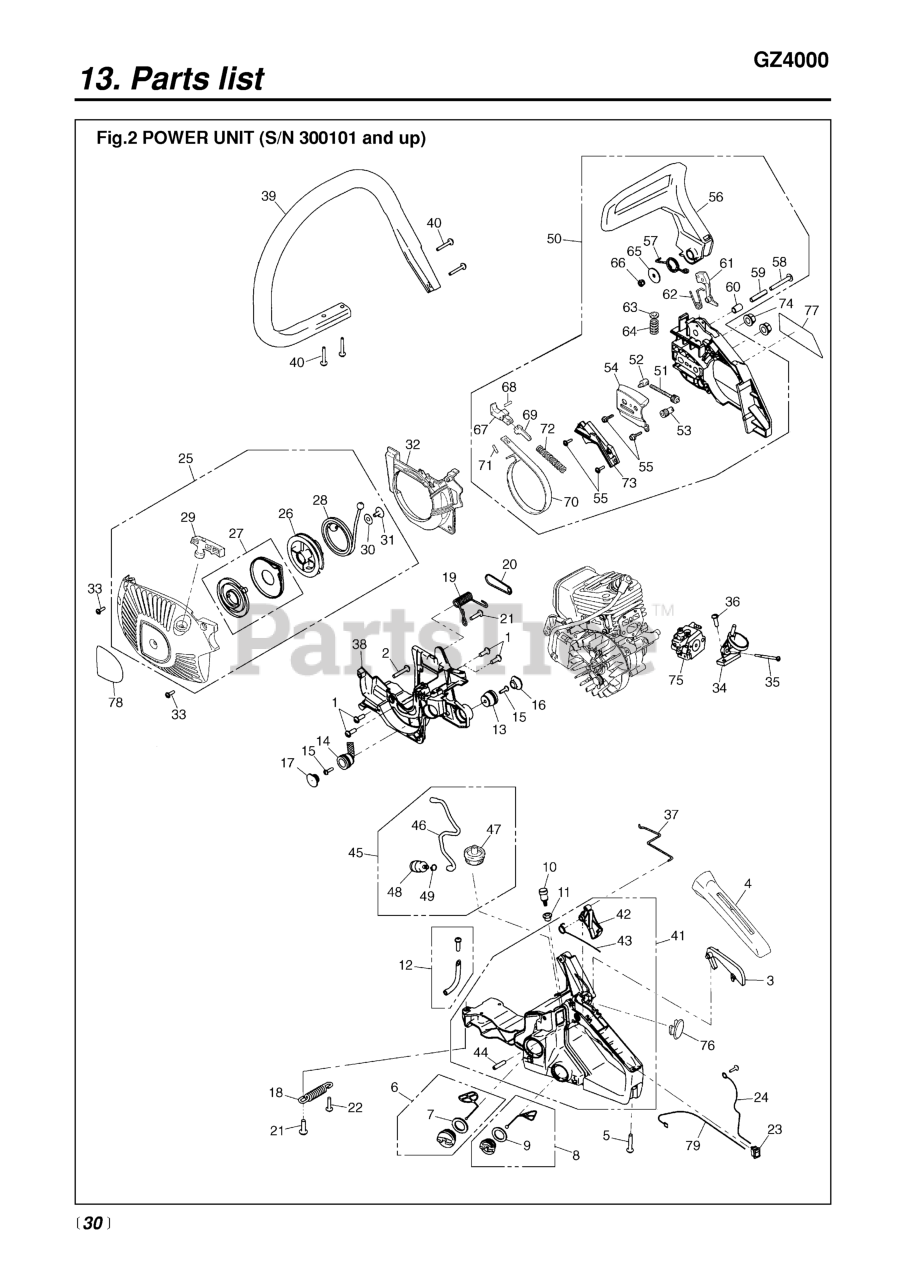

030 - POWER UNIT 2 Parts Diagram

  • Title
1

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

2

RedMax 8488251911

SCREW
(Superseded to 521518101)

$4.99

$

In Stock, only 4 left!

0

3

RedMax 848C3033E3

ARM (REPLACES 3356-33352)
(Superseded to 521556501)

$4.99

$

Usually ships in 3-10 days

0

4

RedMax T212834110

COVER
(Superseded to 512484801)

$6.49

$

In Stock, only 1 left!

0

5

RedMax 8488252711

SCREW
(Superseded to 521518301)

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 267034401

CAP ASSEMBLY
(Superseded to 579517901)

$9.49

$

Usually ships in 3-10 days

0

7

RedMax 267034430

GASKET
(Superseded to 579518001)

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 287731800

CAP ASSEMBLY
(Superseded to 521554501)

$5.99

$

Usually ships in 3-10 days

0

9

RedMax 284131820

GASKET
(Superseded to 516948501)

$4.99

$

Usually ships in 3-10 days

0

10

RedMax 285034501

BREATHER ASSEMBLY

$6.89

$

Usually ships in 3-10 days

0

11

RedMax 331785120

GROMMET
(Superseded to 514201401)

$3.99

$

Usually ships in 3-10 days

0

12

RedMax T210031500

PIPE COMPLETE
(Superseded to 511101501)

$

$

Not available

13

RedMax 261635141

DAMPER (RPLS 2670-35110)
(Superseded to 516740701)

$10.99

$

In Stock, only 2 left!

0

14

RedMax T210035200

DAMPER COMPLETE
(Superseded to 512458201)

$24.99

$

Usually ships in 3-10 days

0

15

RedMax 8488251601

SCREW
(Superseded to 521517901)

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 285635180

CAP
(Superseded to 516977901)

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 288035250

CAP
(Superseded to 513945101)

$3.49

$

Usually ships in 3-10 days

0

18

RedMax T210035110

SPRING, FRONT
(Superseded to 521794201)

$6.49

$

Usually ships in 3-10 days

0

19

RedMax T210035150

SPRING, REAR
(Superseded to 512458101)

$6.49

$

Usually ships in 3-10 days

0

20

RedMax T210235160

PLATE
(Superseded to 512465801)

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 8488251901

SCREW (RPLS. 2671-32110)
(Superseded to 521518001)

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

23

RedMax 285074102

SWITCH ASSEMBLY
(Superseded to 577834301)

$11.99

$

Usually ships in 3-10 days

0

24

RedMax T210074210

CORD, SWITCH

$2.86

$

Usually ships in 3-10 days

0

25

RedMax 848C507501

STARTER ASSY
(Superseded to 521570101)

$

$

Not available

26

RedMax 285075211

REEL
(Superseded to 513773601)

$8.99

$

Usually ships in 3-10 days

0

27

RedMax 285075301

SPRING
(Superseded to 516971501)

$21.99

$

In Stock, only 1 left!

0

$1.72

$

Usually ships in 3-10 days

0

29

RedMax 333075421

KNOB (RPLS -75420)
(Superseded to 506614701)

$6.99

$

In Stock, only 2 left!

0

30

RedMax 140086280

WASHER (USE 181741)
(Superseded to 574053601)

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 8488251901

SCREW (RPLS. 2671-32110)
(Superseded to 521518001)

$4.99

$

Usually ships in 3-10 days

0

32

RedMax T210075610

COVER, FAN
(Superseded to 521797001)

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 8488251911

SCREW
(Superseded to 521518101)

$4.99

$

In Stock, only 4 left!

0

34

RedMax 285082114

MANIFOLD
(Superseded to 516972901)

$14.99

$

Usually ships in 3-10 days

0

35

RedMax 286782210

BOLT
(Superseded to 513855401)

$8.99

$

Usually ships in 3-10 days

0

36

RedMax 8488251911

SCREW
(Superseded to 521518101)

$4.99

$

In Stock, only 4 left!

0

37

RedMax T210082512

ROD
(Superseded to 521797601)

$6.49

$

Usually ships in 3-10 days

0

38

RedMax T210025111

CASE, ENGINE
(Superseded to 521793201)

$

$

Not available

39

RedMax 848C5032A1

HANDLE
(Superseded to 521569601)

$34.99

$

Usually ships in 3-10 days

0

40

RedMax 8488252711

SCREW
(Superseded to 521518301)

$3.99

$

Usually ships in 3-10 days

0

41

RedMax T210033000

HANDLE, RIGHT ASSEMBLY
(Superseded to 570881701)

$78.99

$

Usually ships in 3-10 days

0

42

RedMax 285033313

LEVER, THROTTLE
(Superseded to 513750101)

$4.99

$

Usually ships in 3-10 days

0

43

RedMax 335633321

SPRING
(Superseded to 510815401)

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 0402500524

50030081
(Superseded to 510815501)

$1.49

$

Usually ships in 3-10 days

0

45

RedMax T210034301

PIPE ASSEMBLY
(Superseded to 570881901)

$

$

Not available

46

RedMax 285034311

PIPE, FUEL
(Superseded to 513750601)

$4.99

$

Usually ships in 3-10 days

0

47

$5.58

$

Usually ships in 3-10 days

0

48

RedMax 185085300

5500-85400 (RRLS. 1750-85300)

$

$

Not available

49

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, Qty 9

0

50

RedMax T212854000

BRAKE ASSY
(Superseded to 527745801)

$194.99

$

Usually ships in 3-10 days

0

51

RedMax 267153210

SCREW
(Superseded to 513637701)

$21.99

$

Usually ships in 3-10 days

0

52

RedMax 281053221

NUT
(Superseded to 513701401)

$9.99

$

Usually ships in 3-10 days

0

53

RedMax 267153230

GEAR
(Superseded to 513637901)

$10.99

$

Usually ships in 3-10 days

0

54

RedMax 285053250

PLATE, GUIDE
(Superseded to 516967101)

$9.99

$

Usually ships in 3-10 days

0

55

RedMax 267054630

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

56

RedMax 285054111

GUARD, FRONT

$9.22

$

Usually ships in 3-10 days

0

57

RedMax 285054120

SPRING, RETURN
(Superseded to 574008101)

$4.99

$

Usually ships in 3-10 days

0

58

$0.59

$

Usually ships in 3-10 days

0

59

$0.19

$

Usually ships in 3-10 days

0

60

RedMax 285054211

SPACER (RPLS -54210)

$0.75

$

Usually ships in 3-10 days

0

61

$9.94

$

Usually ships in 3-10 days

0

62

RedMax 287254230

50030110
(Superseded to 510816101)

$3.99

$

Usually ships in 3-10 days

0

63

RedMax 285154260

PLATE, STOPPER

$2.07

$

Usually ships in 3-10 days

0

64

RedMax 285154270

50030111
(Superseded to 510816201)

$

$

Not available

65

RedMax 333075411

WASHER (RPLS -75410)

$0.57

$

Usually ships in 3-10 days

0

66

RedMax 331053331

NUT (B)
(Superseded to 514183901)

$4.99

$

In Stock, only 2 left!

0

67

RedMax 285154301

LEVER, BRAKE COMPLETE

$0.59

$

Usually ships in 3-10 days

0

68

RedMax 285154350

50030117
(Superseded to 574070201)

$

$

Not available

69

RedMax 267054411

ARM, SLIDE(RPLS 2670-54410)

$

$

Not available

70

RedMax 285154510

BAND, BRAKE
(Superseded to 516976801)

$

$

Not available

71

RedMax 335624140

PIN
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

72

RedMax 267054610

SPRING, BRAKE (RPLS. 50030121)

$2.16

$

Usually ships in 3-10 days

0

73

$2.14

$

Usually ships in 3-10 days

0

74

RedMax 335053410

NUT
(Superseded to 575960801)

$3.49

$

Usually ships in 3-10 days

0

75

RedMax 848C508101

CARBURETOR-ASSY
(Superseded to 521571201)

$

$

Not available

76

RedMax 285133510

CAP
(Superseded to 513797701)

$3.99

$

Usually ships in 3-10 days

0

$1.93

$

Usually ships in 3-10 days

0

$1.38

$

Usually ships in 3-10 days

0

$3.13

$

Usually ships in 3-10 days

0
