GZ 400 - RedMax Chainsaw (SN: 0612000001 & Above) (2007-02) 002 - POWER UNIT FIG 1 Parts Diagram

Chainsaw

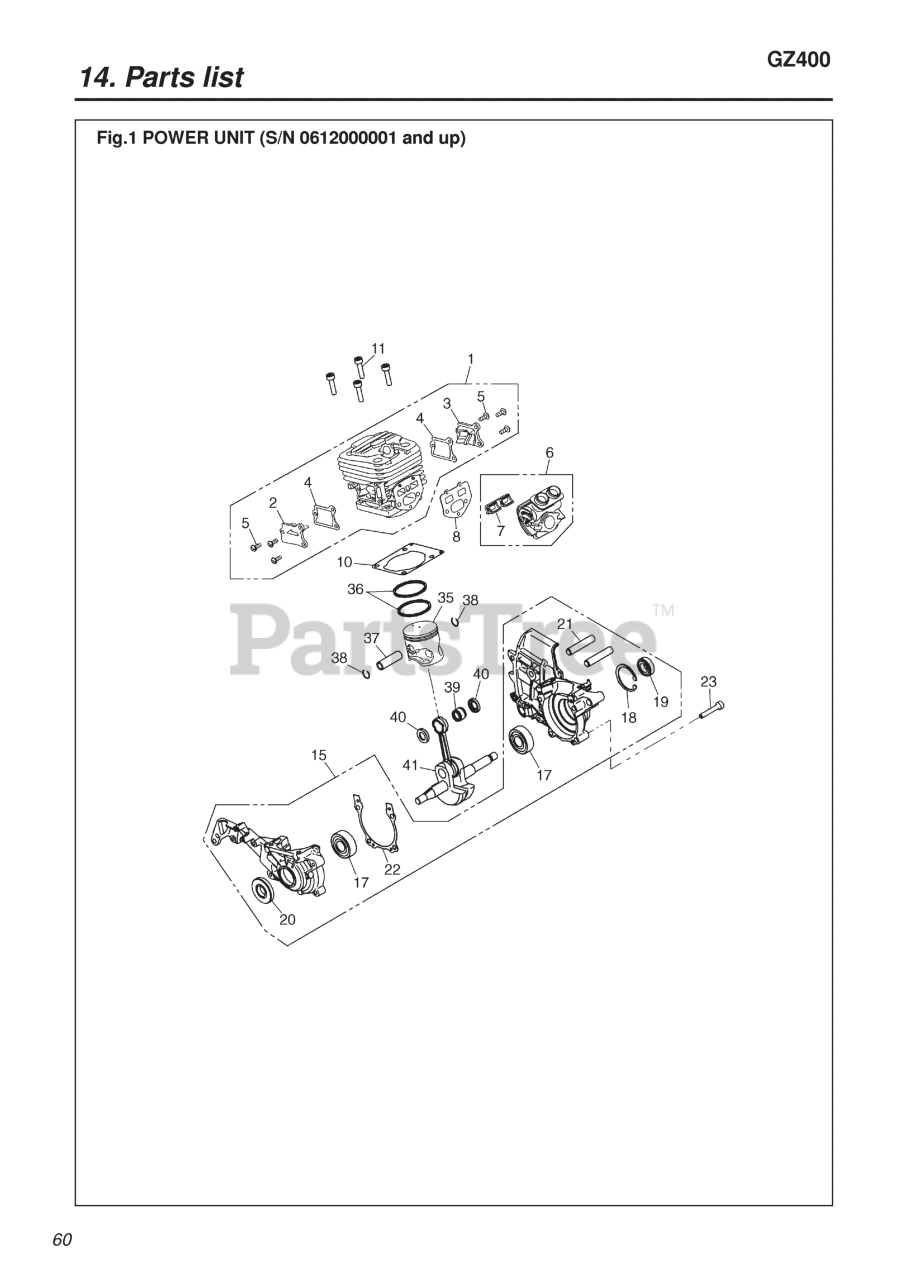

002 - POWER UNIT FIG 1 Parts Diagram

  • Title

1

RedMax 848C501211

CYLINDER ASSY
(Superseded to 527745701)

$48.99

$

Usually ships in 3-10 days

0

2

RedMax 848C5012C1

TR COVER MAG
(Superseded to 521568701)

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 848C5012D1

TR COVER PTO
(Superseded to 521568801)

$

$

Not available

4

RedMax 848C5012E1

GASKET
(Superseded to 521568901)

$15.99

$

Usually ships in 3-10 days

0

5

RedMax 267025430

SCREW

$0.41

$

Usually ships in 3-10 days

0

6

RedMax 848C501401

INSULATOR ASSY
(Superseded to 585362901)

$84.99

$

Usually ships in 3-10 days

0

7

RedMax 848C5016F1

SEAL
(Superseded to 522648601)

$27.99

$

In Stock, only 1 left!

0

8

RedMax 848C5014B1

GASKET
(Superseded to 521569301)

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 285014212

GASKET, CYLINDER
(Superseded to 513744001)

$3.99

$

In Stock, only 1 left!

0

11

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

15

RedMax 848C402102

CRANKCASE ASSY
(Superseded to 521565101)

$46.99

$

Usually ships in 3-10 days

0

17

RedMax 84889C3200

BEARING
(Superseded to 504121401)

$12.99

$

In Stock, only 3 left!

0

18

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$3.99

$

In Stock, only 2 left!

0

19

RedMax 216921210

SEAL, OIL (RPLS 1100-21210)
(Superseded to 513488701)

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 8488AC3210

SEAL
(Superseded to 504121301)

$10.99

$

Usually ships in 3-10 days

0

21

RedMax 261621230

STUD (RPLS 0205-50825)
(Superseded to 516738001)

$4.99

$

Usually ships in 3-10 days

0

22

RedMax T210021310

GASKET, CASE
(Superseded to 512455701)

$

$

Not available

23

RedMax 482021310

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

35

RedMax 848C5041A1

PISTON
(Superseded to 511124901)

$27.99

$

Usually ships in 3-10 days

0

36

RedMax 266041211

RING
(Superseded to 510918001)

$12.99

$

Usually ships in 3-10 days

0

37

RedMax T212841310

PIN
(Superseded to 512484901)

$13.99

$

Usually ships in 3-10 days

0

38

RedMax 130041320

RING, SNAP
(Superseded to 516283001)

$4.99

$

In Stock, only 1 left!

0

39

RedMax T210041410

BEARING
(Superseded to 505297301)

$9.99

$

In Stock, Qty 5

0

40

RedMax 285041510

WASHER
(Superseded to 513752401)

$6.99

$

In Stock, only 2 left!

0

41

RedMax T212842000

SHAFT COMP
(Superseded to 521799401)

$

$

Not available
