GZ 381 - RedMax Chainsaw CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

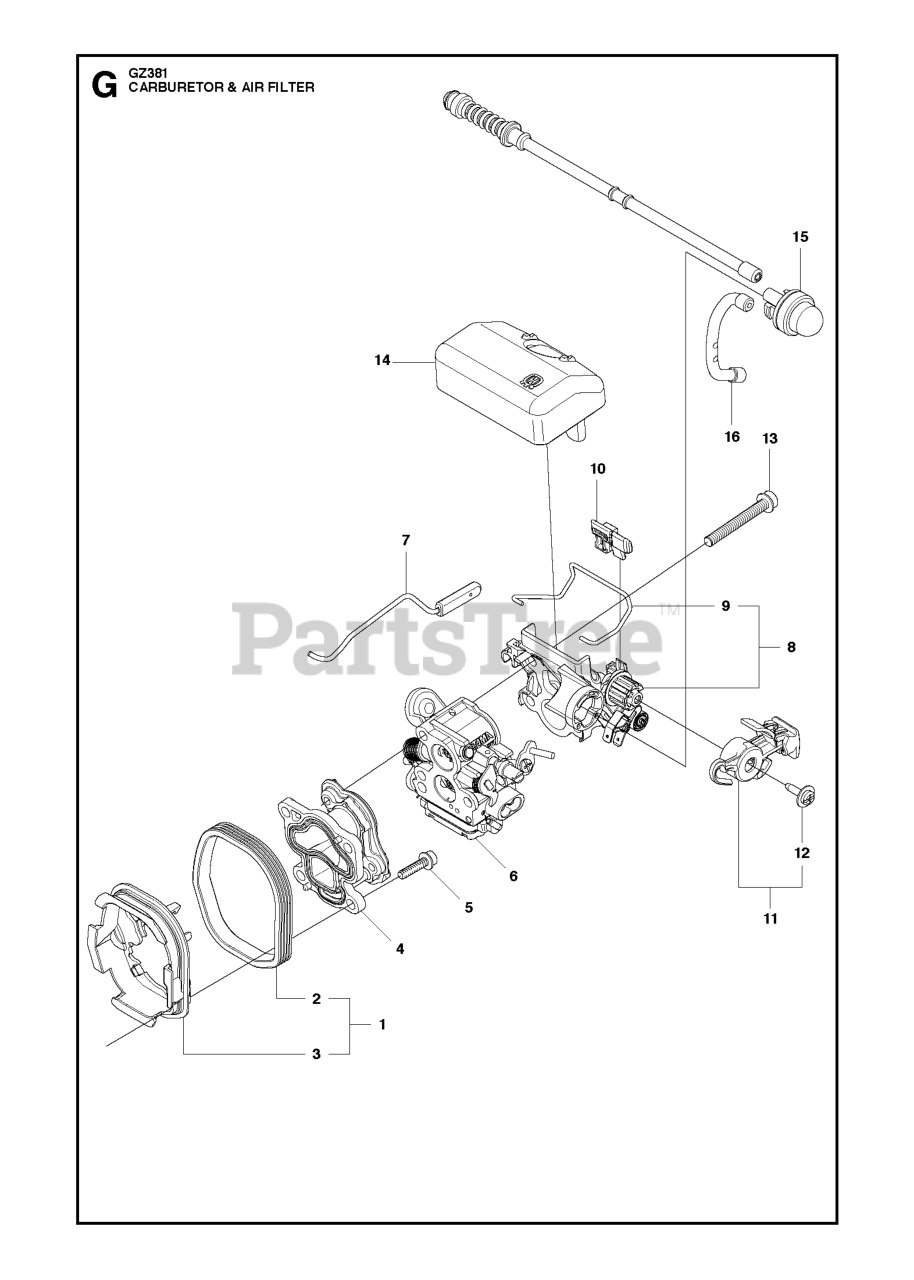

CARBURETOR & AIR FILTER Parts Diagram

  • Title

1

RedMax 504724701

INSULATION WALL

$6.49

$

In Stock, Qty 9

0

2

RedMax 504724501

INSULATION WALL
(Superseded to 504724701)

$6.49

$

In Stock, Qty 9

0

3

RedMax 504724401

INSULATION WALL
(Superseded to 504724701)

$6.49

$

In Stock, Qty 9

0

4

RedMax 504201201

INLET PIPE

$51.99

$

In Stock, only 1 left!

0

5

RedMax 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

6

RedMax 506450501

CARBURETOR

$80.99

$

Usually ships in 3-10 days

0

7

RedMax 544284401

THROTTLE ROD ASSY

$6.49

$

In Stock, only 3 left!

0

8

RedMax 544976401

FILTER HOLDER
(Superseded to 544976402)

$9.99

$

Usually ships in 3-10 days

0

9

RedMax 544392601

SHACKLE

$6.49

$

In Stock, only 1 left!

0

10

RedMax 504712501

GUIDE

$6.49

$

In Stock, only 1 left!

0

11

RedMax 544844302

CONTROL

$7.99

$

In Stock, only 1 left!

0

12

RedMax 544976601

SCREW

$3.99

$

In Stock, only 1 left!

0

13

RedMax 503200240

SCREW

$6.49

$

In Stock, only 2 left!

0

14

RedMax 544805402

AIR FILTER
(Superseded to 599729401)

Note: 44 MICRON

$10.99

$

In Stock, Qty 20+

0

14

RedMax 544805403

AIR FILTER
(Superseded to 599729402)

Note: FELT

$17.99

$

In Stock, only 1 left!

0

15

RedMax 503936601

AIR PURGE BUBBLE

$21.99

$

Usually ships in 3-10 days

0

16

RedMax 544401901

HOSE

$4.99

$

In Stock, only 2 left!
