GZ 380 (966426001) - RedMax Chainsaw (2012-03) ENGINE Parts Diagram

Chainsaw

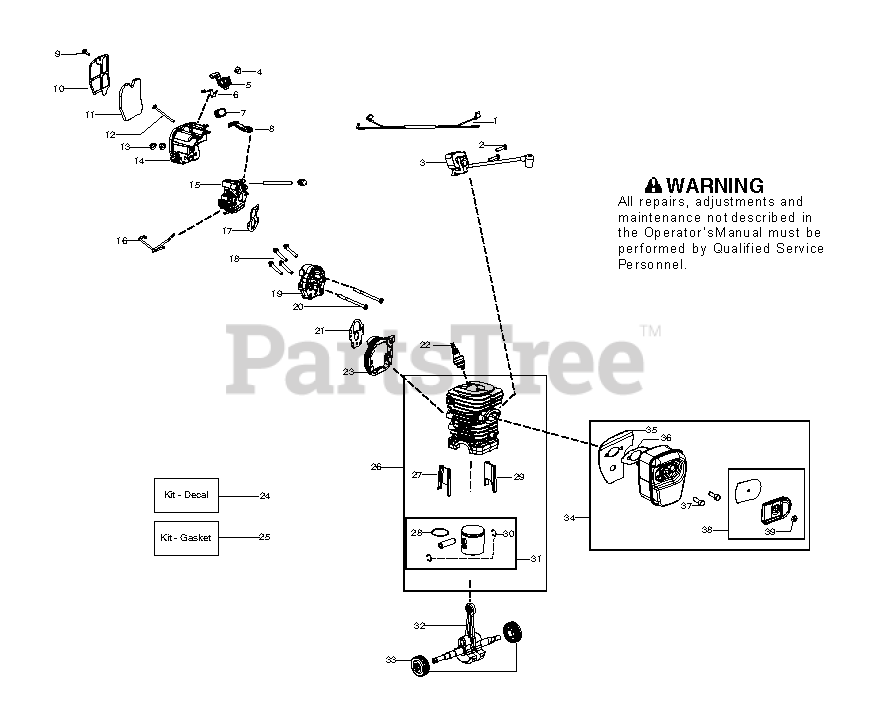

ENGINE Parts Diagram

  • Title
1

RedMax 545079901

WIRE HARNESS ASSY

$9.99

$

In Stock, only 1 left!

0

$3.99

$

In Stock, only 4 left!

0

3

RedMax 545199901

IGNITION MODULE
(Superseded to 575803501)

$22.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

5

RedMax 545061701

SWITCH LEVER

$6.49

$

In Stock, only 1 left!

0

6

$4.99

$

In Stock, Qty 9

0

7

RedMax 545061901

ISOLATOR FILTER HOUSING

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 545061601

CHOKE KNOB

$6.49

$

In Stock, only 1 left!

0

9

RedMax 530016349

SCREW FILTER PLATE

$6.49

$

In Stock, only 1 left!

0

10

$6.49

$

In Stock, Qty 7

0

11

RedMax 545061801

AIR FILTER

$5.99

$

In Stock, Qty 14

0

12

RedMax 545074901

TOP STUD - CARBURETOR

$4.99

$

In Stock, only 3 left!

0

$6.49

$

In Stock, only 2 left!

0

14

RedMax 545121401

ASSY FILTER HOUSING

$18.99

$

Usually ships in 3-10 days

0

15

RedMax 574719402

CARBURETOR ZAMA ASSY
(Superseded to 586936202)

$93.99

$

In Stock, only 1 left!

0

16

RedMax 577815201

THROTTLE

$4.99

$

In Stock, only 2 left!

0

17

$5.99

$

Usually ships in 3-10 days

0

18

$3.99

$

In Stock, only 4 left!

0

19

RedMax 577636501

ADAPTOR CARBURETOR

$9.49

$

In Stock, Qty 5

0

20

RedMax 545033701

STUD CARBURETOR

$5.99

$

In Stock, only 3 left!

0

21

$5.99

$

Usually ships in 3-10 days

0

22

RedMax 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

23

$5.99

$

Usually ships in 3-10 days

0

24

RedMax 573977701

KIT DECAL

$5.76

$

Usually ships in 3-10 days

0

25

$5.99

$

Usually ships in 3-10 days

0

26

RedMax 545050417

%KIT, CYLINDER & PISTON
(Superseded to 577831101)

$125.99

$

In Stock, only 1 left!

0

27

RedMax 574190801

CYLINDER INSERT RIGHT 38CC

$7.99

$

In Stock, only 3 left!

0

28

RedMax 530012608

PISTON RING

$8.99

$

In Stock, only 2 left!

0

29

RedMax 574190901

CYLINDER INSERT LEFT 38CC

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

31

RedMax 545081894

PISTON KIT

$30.99

$

Usually ships in 3-10 days

0

32

RedMax 577182201

CRANKSHAFT
(Superseded to 580302601)

$91.99

$

In Stock, only 1 left!

0

33

RedMax 576243901

ASSY SEAL & BEARING

$18.99

$

Usually ships in 3-10 days

0

34

RedMax 545008026

MUFFLER KIT
(Superseded to 545180843)

$43.99

$

Usually ships in 3-10 days

0

35

$4.99

$

Usually ships in 3-10 days

0

36

$5.99

$

Usually ships in 3-10 days

0

37

RedMax 530016338

SCREW MUFFLER

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 545008027

KIT SPARK ARRESTOR

$6.49

$

Usually ships in 3-10 days

0

39

RedMax 574266401

NUT 10MM BRASS

$4.99

$

In Stock, Qty 6

0
