GZ 380 (966426001) - RedMax Chainsaw (2011-09) HANDLE Parts Diagram

Chainsaw

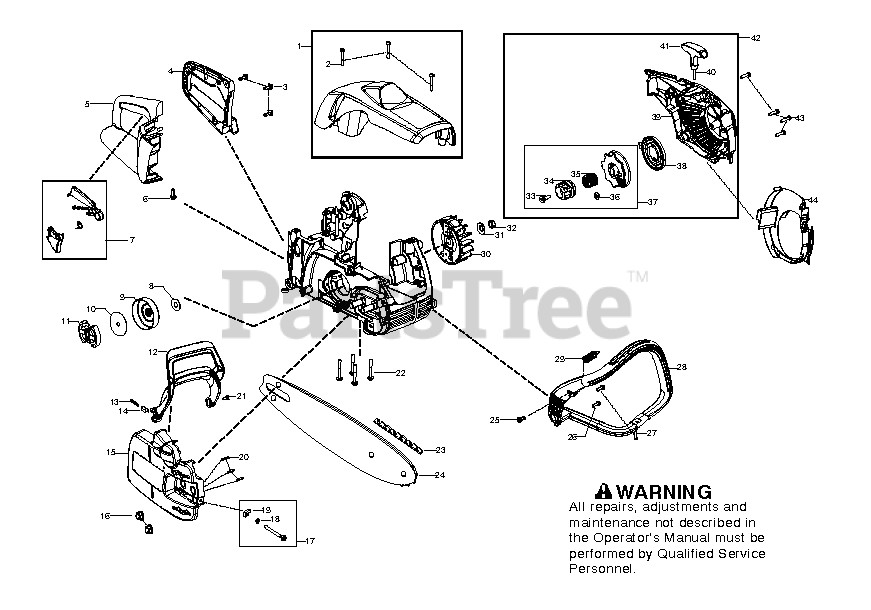

HANDLE Parts Diagram

  • Title

1

RedMax 575339801

SHIELD CYLINDER RED

Note: . 2

$

$

Not available

2

RedMax 574320601

SCREW

$4.99

$

In Stock, Qty 20+

0

3

RedMax 530016433

SCREW

$6.49

$

In Stock, only 3 left!

0

4

RedMax 525342301

HANDLE COVER BLACK

$6.49

$

Usually ships in 3-10 days

0

5

RedMax 525343701

HANDLE RIGHT BLACK OVERMOLD

$9.99

$

Usually ships in 3-10 days

0

6

RedMax 530016349

SCREW FILTER PLATE

$6.49

$

In Stock, only 1 left!

0

7

RedMax 545180814

KIT TRIGGER LOCKOUT

$8.99

$

In Stock, only 4 left!

0

8

RedMax 530015907

THRUST WASHER

$

$

Not available

9

RedMax 530047061

CLUTCH DRUM ASSY

$17.99

$

In Stock, Qty 5

0

10

RedMax 530015611

FRICTION DISC,CLUTCH 36/41

$6.49

$

In Stock, only 1 left!

0

11

RedMax 530014949

CLUTCH ASSEMBLY

$22.99

$

In Stock, only 1 left!

0

12

RedMax 574508201

HANDGUARD BLACK

$7.49

$

Usually ships in 3-10 days

0

13

RedMax 545071201

SPRING

$4.99

$

In Stock, Qty 5

0

14

RedMax 545071301

CAP, SPRING HANDGUARD

$6.49

$

In Stock, Qty 5

0

15

RedMax 525611501

CHAIN BRAKE ASSY RED

Note: . 17 20

$39.99

$

In Stock, only 3 left!

0

16

RedMax 530015917

BAR NUT

$3.99

$

In Stock, Qty 12

0

17

RedMax 530069611

KIT BAR ADJUSTMENT

Note: . 18 19

$9.49

$

In Stock, Qty 13

0

18

RedMax 530038593

RETAINER

$4.99

$

In Stock, Qty 20+

0

19

RedMax 530015826

ADJUST PIN,BAR 36/41

$4.99

$

In Stock, Qty 20+

0

20

RedMax 545133101

GUIDE BRAKE BAND

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 545127301

BOSS SCREW

$4.99

$

In Stock, only 1 left!

0

22

RedMax 545081501

BOLT

$6.99

$

Usually ships in 3-10 days

0

23

RedMax 574266801

CHAIN 91VG 57 LINK

Note: 16 OPTIONAL

$

$

Not available

23

RedMax 574102901

CHAIN(16") FOR G3800 GZ4000

$

$

Not available

24

RedMax 574136101

BAR 16"(FITS:G3800 & GZ4000)

$

$

Not available

25

RedMax 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

26

RedMax 545076301

SCREW

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 530016349

SCREW FILTER PLATE

$6.49

$

In Stock, only 1 left!

0

28

RedMax 545161101

HANDLE FRONT

$

$

Not available

29

RedMax 545033801

ISOLATOR

$10.99

$

In Stock, Qty 6

0

30

RedMax 530039147

ROTOR COMPL. 36/41
(Superseded to 575635502)

$28.99

$

In Stock, only 4 left!

0

31

RedMax 530015127

WASHER-FLYWHEEL

$6.49

$

In Stock, only 2 left!

0

32

RedMax 530016134

NUT-FLYWHEEL

$6.49

$

In Stock, only 1 left!

0

33

RedMax 530021179

SCREW SHOULDER

$2.49

$

In Stock, only 2 left!

0

34

RedMax 530059677

HUB STARTER EPS

$9.99

$

In Stock, Qty 6

0

35

RedMax 530021180

SPRING EPS

$6.49

$

In Stock, only 2 left!

0

36

RedMax 530016080

SCREW

$6.49

$

In Stock, only 1 left!

0

37

RedMax 545180812

KIT EPS STARTER
(Superseded to 530071966)

Note: . 33 34 35 36

$26.99

$

Usually ships in 3-10 days

0

38

RedMax 530042095

SPRING STARTER
(Superseded to 545008013)

$6.99

$

In Stock, only 3 left!

0

39

RedMax 545226601

HOUSING FAN RED

$8.99

$

Usually ships in 3-10 days

0

40

RedMax 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

41

RedMax 544376501

STARTER HANDLE

$14.99

$

In Stock, only 4 left!

0

42

RedMax 573977501

STARTER ASSY

Note: . 37 38 39 40 41

$27.99

$

Usually ships in 3-10 days

0

43

RedMax 530016432

SCREW M5.38-14X22.225MM

$6.49

$

In Stock, only 3 left!

0

44

RedMax 000000000

Note: 545226501 BAFFLE PLATE

$

$

Not available

RedMax 574266701

SCABBARD ZENOAH RED

Note: NOT SHOWN

$9.99

$

Usually ships in 3-10 days
