GZ 380 (966426001) - RedMax Chainsaw (2011-03) ENGINE Parts Diagram

Chainsaw

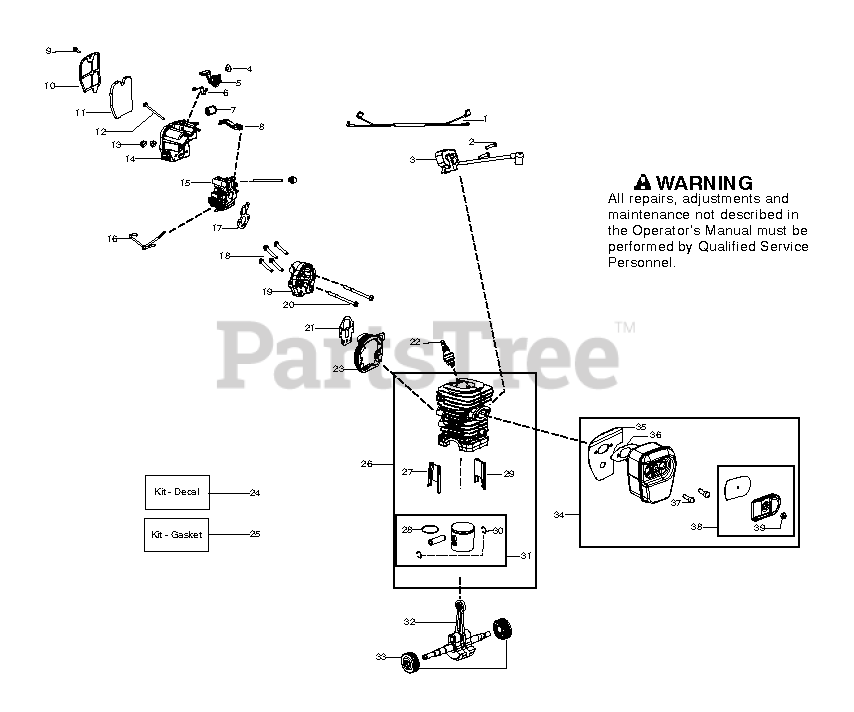

ENGINE Parts Diagram

  • Title

1

RedMax 545079901

WIRE HARNESS ASSY

$9.99

$

In Stock, only 1 left!

0

2

RedMax 545121901

SCREW

$3.99

$

In Stock, only 4 left!

0

3

RedMax 545199901

IGNITION MODULE
(Superseded to 575803501)

$22.99

$

Usually ships in 3-10 days

0

4

RedMax 530016080

SCREW

$6.49

$

In Stock, only 1 left!

0

5

RedMax 545061701

SWITCH LEVER

$6.49

$

In Stock, only 1 left!

0

6

RedMax 545063401

SPRING

$4.99

$

In Stock, Qty 9

0

7

RedMax 545061901

ISOLATOR FILTER HOUSING

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 545061601

CHOKE KNOB

$6.49

$

In Stock, only 1 left!

0

9

RedMax 530016349

SCREW FILTER PLATE

$6.49

$

In Stock, only 1 left!

0

10

RedMax 545151801

PLATE

$6.49

$

In Stock, Qty 7

0

11

RedMax 545061801

AIR FILTER

$5.99

$

In Stock, Qty 14

0

12

RedMax 545074901

TOP STUD - CARBURETOR

$4.99

$

In Stock, only 3 left!

0

13

RedMax 530016101

NUT

$6.49

$

In Stock, only 2 left!

0

14

RedMax 545121401

ASSY FILTER HOUSING

$18.99

$

Usually ships in 3-10 days

0

15

RedMax 545008030

PURGE & LINE ASSY

$34.99

$

In Stock, only 1 left!

0

16

RedMax 545062801

THROTTLE WIRE
(Superseded to 578862301)

$6.99

$

In Stock, Qty 7

0

17

RedMax 573977601

GASKET

$5.99

$

Usually ships in 3-10 days

0

18

RedMax 545158301

SCREW

$3.99

$

In Stock, only 4 left!

0

19

RedMax 545169801

CARB ADAPTOR
(Superseded to 577636501)

$9.49

$

In Stock, Qty 5

0

20

RedMax 545033701

STUD CARBURETOR

$5.99

$

In Stock, only 3 left!

0

21

RedMax 573977601

GASKET

$5.99

$

Usually ships in 3-10 days

0

22

RedMax 503235108

SPARK PLUG RCJ7Y
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

23

RedMax 573977601

GASKET

$5.99

$

Usually ships in 3-10 days

0

24

RedMax 573977701

KIT DECAL

$5.76

$

Usually ships in 3-10 days

0

25

RedMax 573977601

GASKET

Note: . 17 21 23 36

$5.99

$

Usually ships in 3-10 days

0

26

RedMax 545050417

%KIT, CYLINDER & PISTON
(Superseded to 577831101)

Note: . 27 29 31

$125.99

$

In Stock, only 1 left!

0

27

RedMax 574190801

CYLINDER INSERT RIGHT 38CC

Note: RIGHT

$7.99

$

In Stock, only 3 left!

0

28

RedMax 530012608

PISTON RING

$8.99

$

In Stock, only 2 left!

0

29

RedMax 574190901

CYLINDER INSERT LEFT 38CC

Note: LEFT

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 530015697

C-CLIP,PSTN PIN 36/41

$6.49

$

In Stock, Qty 6

0

31

RedMax 545081894

PISTON KIT

Note: . 28 30

$30.99

$

Usually ships in 3-10 days

0

32

RedMax 574449401

CRANKSHAFT COMPLETE
(Superseded to 580302601)

$91.99

$

In Stock, only 1 left!

0

33

RedMax 576243901

ASSY SEAL & BEARING

$18.99

$

Usually ships in 3-10 days

0

34

RedMax 545008026

MUFFLER KIT
(Superseded to 545180843)

Note: . 35 36 37 38

$43.99

$

Usually ships in 3-10 days

0

35

RedMax 545066901

PLATE

$4.99

$

Usually ships in 3-10 days

0

36

RedMax 573977601

GASKET

$5.99

$

Usually ships in 3-10 days

0

37

RedMax 530016338

SCREW MUFFLER

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 545008027

KIT SPARK ARRESTOR

Note: . 39

$6.49

$

Usually ships in 3-10 days

0

39

RedMax 574266401

NUT 10MM BRASS

$4.99

$

In Stock, Qty 6

0
