GZ 3500 T - RedMax Chainsaw (2017-10) FUEL TANK Parts Diagram

Chainsaw

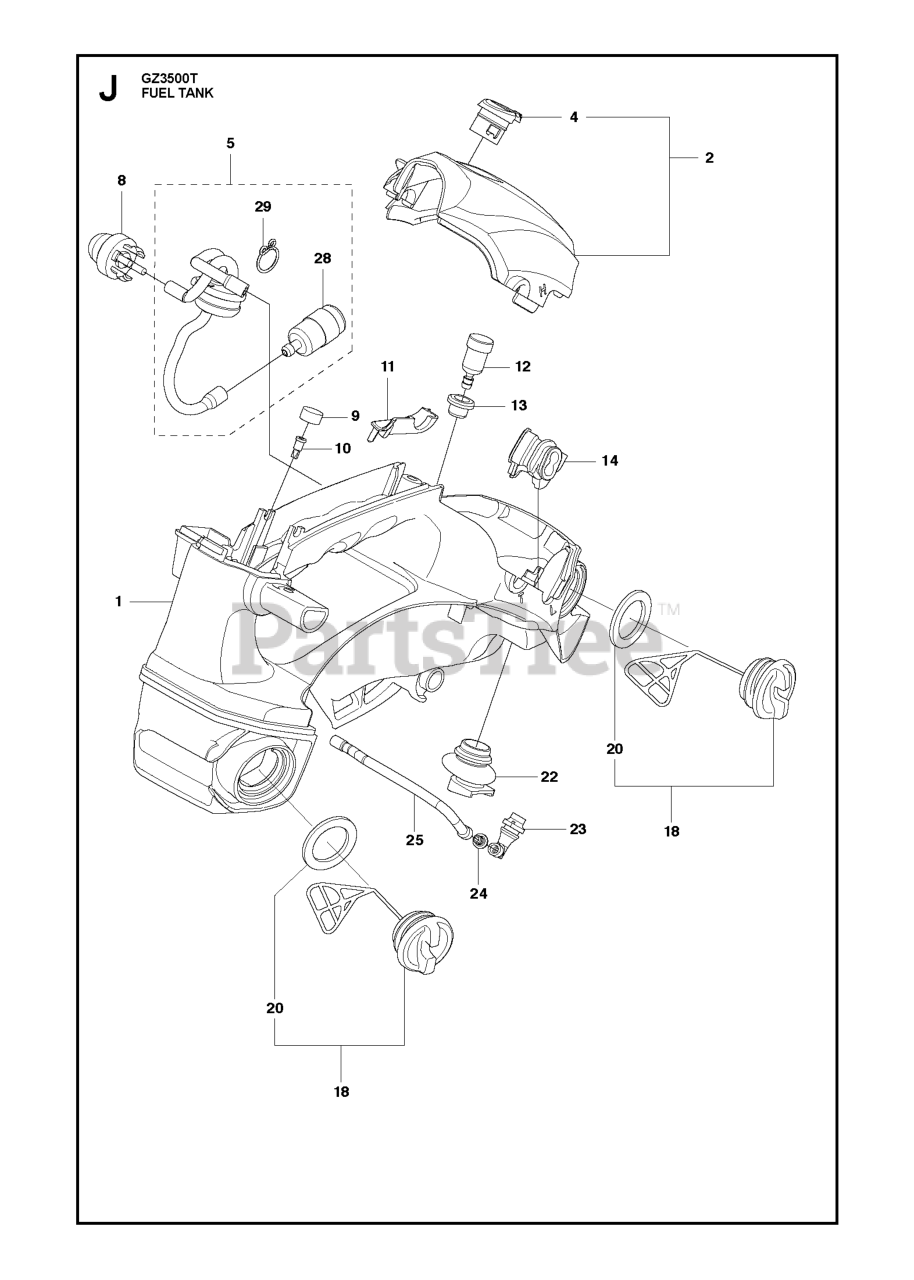

FUEL TANK Parts Diagram

  • Title

1

RedMax 585746101

HANDLE

$

$

Not available

2

RedMax 585746701

COVER COMP

$31.99

$

Usually ships in 3-10 days

0

4

RedMax 527675401

KNOB

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 579519201

PIPE COMP
(Superseded to 579519202)

$33.99

$

Usually ships in 3-10 days

0

8

RedMax 513789301

PRIMARY BTN

$31.99

$

In Stock, only 2 left!

0

9

RedMax 516948101

BREATHER SEAL
(Superseded to 514235301)

$4.99

$

In Stock, only 1 left!

0

10

RedMax 516961901

AIR CONTROL BREATHER
(Superseded to 574007801)

$7.49

$

Usually ships in 3-10 days

0

11

RedMax 585746601

BRACKET

$14.99

$

Usually ships in 3-10 days

0

12

RedMax 513751501

BREATHER
(Superseded to 574007901)

$13.99

$

Usually ships in 3-10 days

0

13

RedMax 514201401

GROMMET
(Superseded to 574012901)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 585745001

GUIDE CARB

$12.99

$

Usually ships in 3-10 days

0

18

RedMax 579518901

CAP ASSY

$10.99

$

In Stock, only 1 left!

0

20

RedMax 579519001

PACKING

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 522647101

PIPE, AIR

$6.49

$

Usually ships in 3-10 days

0

23

RedMax 522647801

PIPE

$7.49

$

Usually ships in 3-10 days

0

24

RedMax 516950301

JOINT

$6.49

$

In Stock, only 1 left!

0

25

RedMax 522639401

PIPE
(Superseded to 595526906)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

29

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 5
