GZ 3500 T - RedMax Chainsaw (2008-09) 004 - POWER UNIT FIG.3 Parts Diagram

Chainsaw

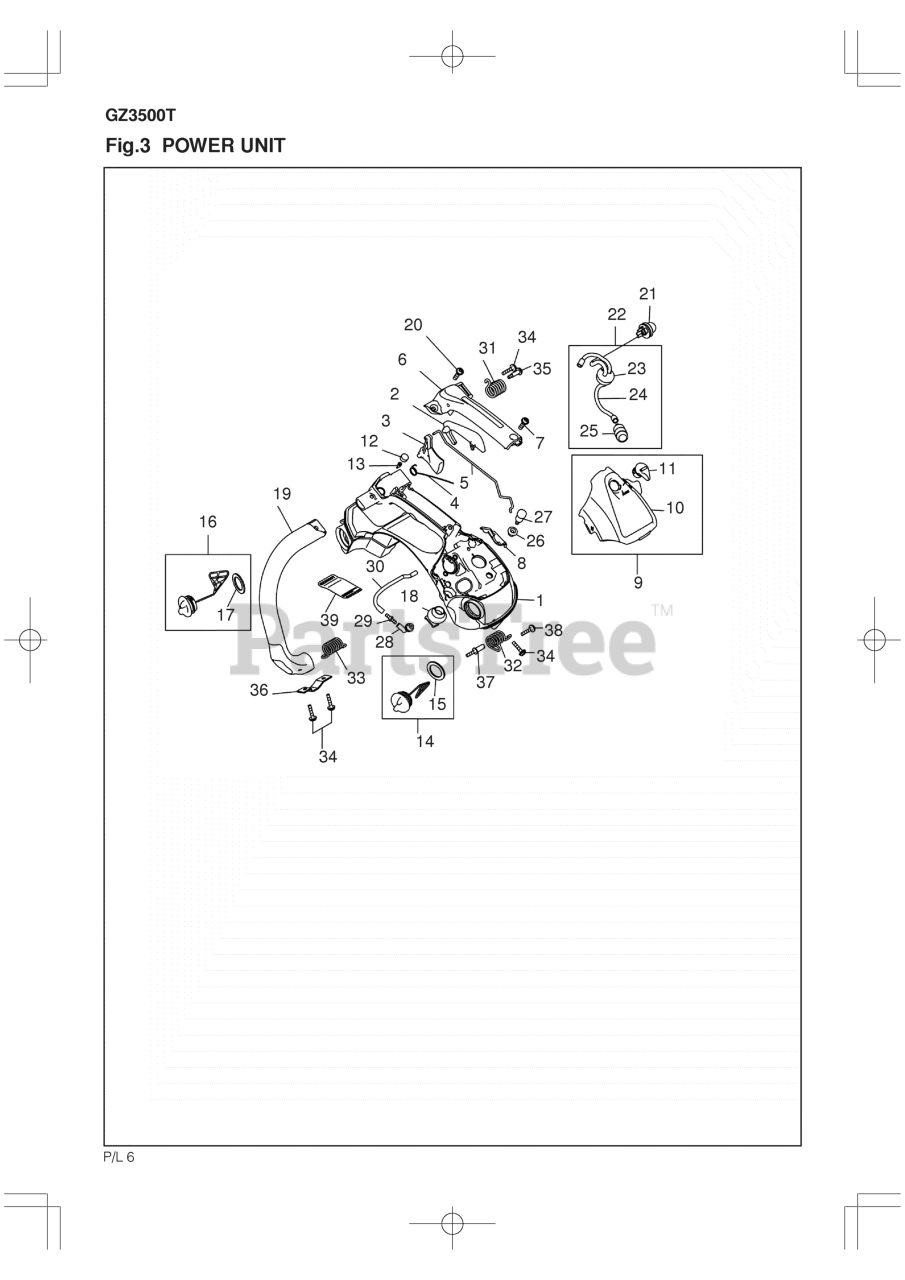

004 - POWER UNIT FIG.3 Parts Diagram

  • Title
1

RedMax 848CE03315

HANDLE, COMP
(Superseded to 577364401)

$

$

Not available

2

RedMax 848C3033E3

ARM
(Superseded to 521556501)

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 848CE033C2

LEVER, TH
(Superseded to 522641801)

$4.99

$

Usually ships in 3-10 days

0

4

RedMax 335633321

SPRING
(Superseded to 510815401)

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 848CE082H1

ROD, TH
(Superseded to 522646601)

$9.99

$

In Stock, only 1 left!

0

6

RedMax 848CE033L2

COVER, GRIP
(Superseded to 522641901)

$

$

Not available

7

RedMax 8488251911

SCREW
(Superseded to 521518101)

$4.99

$

In Stock, only 4 left!

0

8

RedMax 848CE083T1

BRACKET, KNOB
(Superseded to 522647501)

$

$

Not available

9

RedMax 848CE08322

COVER COMP
(Superseded to 522646801)

$

$

Not available

10

RedMax 848CE083H3

CIVERN CLEANER
(Superseded to 522646801)

$

$

Not available

11

RedMax 848CE083J2

KNOB
(Superseded to 522647401)

$3.99

$

In Stock, only 1 left!

0

12

RedMax 284131410

SEAL
(Superseded to 574007401)

$4.99

$

In Stock, only 1 left!

0

13

$1.61

$

Usually ships in 3-10 days

0

14

RedMax 848C108512

CAP ASSY
(Superseded to 579518901)

$10.99

$

In Stock, only 1 left!

0

15

RedMax 284131820

GASKET
(Superseded to 516948501)

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 848C208511

CAP ASSY
(Superseded to 521554501)

$5.99

$

Usually ships in 3-10 days

0

17

RedMax 284131820

GASKET
(Superseded to 516948501)

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 848CE083E1

PIPE, AIR
(Superseded to 522647101)

$6.49

$

Usually ships in 3-10 days

0

19

RedMax 848CE032A2

L, HANDLE
(Superseded to 522641601)

$

$

Not available

20

RedMax 8488251911

SCREW
(Superseded to 521518101)

$4.99

$

In Stock, only 4 left!

0

21

RedMax 285081900

PUMP ASSEMBLY
(Superseded to 513789301)

$31.99

$

In Stock, only 2 left!

0

22

RedMax 848CE08531

PIPE ASSY
(Superseded to 579519201)

$33.99

$

Usually ships in 3-10 days

0

23

RedMax 848CE085P0

GROMMET
(Superseded to 579519201)

$33.99

$

Usually ships in 3-10 days

0

$

$

Not available

25

$

$

Not available

26

RedMax 331785120

GROMMET
(Superseded to 514201401)

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 285034501

BREATHER ASSEMBLY

$6.89

$

Usually ships in 3-10 days

0

28

RedMax 848CE085R0

PIPE
(Superseded to 522647801)

$7.49

$

Usually ships in 3-10 days

0

29

RedMax 284137150

JOINT
(Superseded to 574070401)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 8488G11050

PIPE
(Superseded to 522639401)

$2.49

$

Usually ships in 3-10 days

0

31

RedMax 848CE037A0

SPRING, FRONT
(Superseded to 522642201)

$10.99

$

Usually ships in 3-10 days

0

32

RedMax 848CE037C1

SPRING, PTO
(Superseded to 522642401)

$9.99

$

In Stock, only 1 left!

0

33

RedMax 848CE037B1

DAMPER, MAG
(Superseded to 522642301)

$9.99

$

In Stock, Qty 10

0

34

RedMax 8488251911

SCREW
(Superseded to 521518101)

$4.99

$

In Stock, only 4 left!

0

35

RedMax 8488152050

SCREW
(Superseded to 522638601)

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 848C2D8511

ANTI VIBRATION STRAP

$

$

Not available

38

RedMax 8488251901

SCREW
(Superseded to 521518001)

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 848CE290F0

LABEL, CE

$2.53

$

Usually ships in 3-10 days

0
