GZ 3500 T - RedMax Chainsaw (2008-09) 003 - POWER UNIT FIG.2 Parts Diagram

Chainsaw

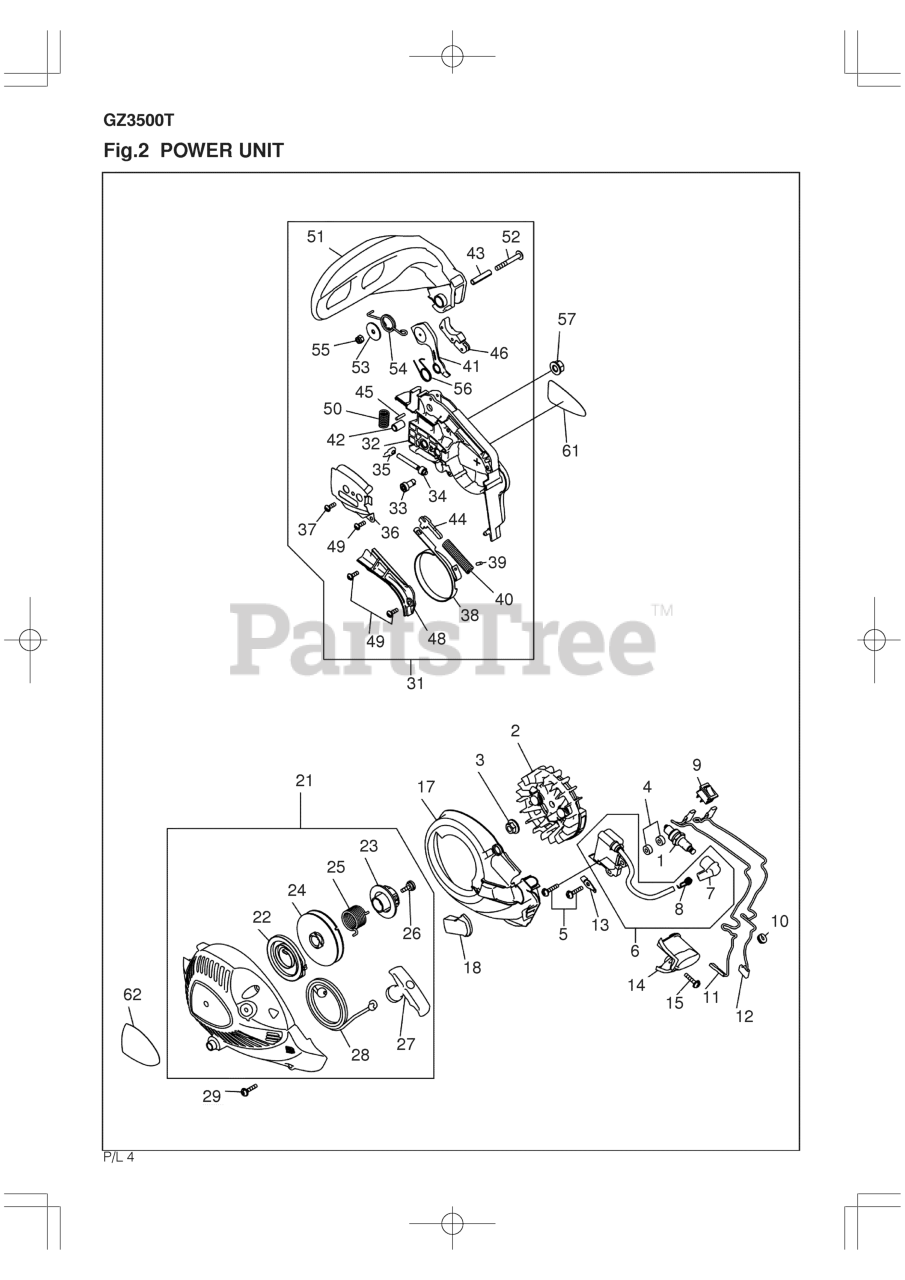

003 - POWER UNIT FIG.2 Parts Diagram

  • Title
1

RedMax 369991867

SPARK PLUG
(Superseded to 544260901)

$4.46

$

Usually ships in 3-10 days

0

2

RedMax 848CE07111

ROTOR ASSY
(Superseded to 522644101)

$54.99

$

Usually ships in 3-10 days

0

3

RedMax 165043230

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

4

$0.51

$

Usually ships in 3-10 days

0

5

RedMax 8488142000

BOLT TORX 09
(Superseded to 522638401)

$3.99

$

In Stock, only 3 left!

0

6

RedMax 848CE07132

COIL COMP
(Superseded to 576857201)

$121.99

$

Usually ships in 3-10 days

0

$4.15

$

Usually ships in 3-10 days

0

$1.61

$

Usually ships in 3-10 days

0

9

RedMax 285074102

SWITCH ASSEMBLY
(Superseded to 577834301)

$11.99

$

Usually ships in 3-10 days

0

10

RedMax 848CE071F1

GROMMET
(Superseded to 522644301)

$0.99

$

Usually ships in 3-10 days

0

11

RedMax 848CE072B1

CORD, SWITCH
(Superseded to 522644501)

$8.99

$

In Stock, only 2 left!

0

12

RedMax 848CE072C1

CORD, EARTH
(Superseded to 522644601)

$8.99

$

Usually ships in 3-10 days

0

13

RedMax 848CE071W0

TERMINAL
(Superseded to 522644401)

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 848CE031F3

COVER, PLUG
(Superseded to 522641501)

$

$

Not available

15

RedMax 848CE074A2

CORD, FAN

$5.65

$

Usually ships in 3-10 days

0

18

RedMax 848CE075T0

GUIDE, DF

$1.02

$

Usually ships in 3-10 days

0

21

RedMax 848CE07503

RECOIL ASSY
(Superseded to 522644801)

$

$

Not available

22

RedMax 848CE07530

SPRING ASSY
(Superseded to 522644901)

$24.99

$

In Stock, only 1 left!

0

23

RedMax 848CE075N0

CAM, PLATE
(Superseded to 522645401)

$8.99

$

In Stock, only 1 left!

0

24

RedMax 848CE075C1

REEL
(Superseded to 522645001)

$7.49

$

In Stock, only 1 left!

0

25

RedMax 848CE075K2

SPRING
(Superseded to 522645301)

$7.49

$

In Stock, only 1 left!

0

26

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

27

RedMax 848CE075J0

KNOB
(Superseded to 522645201)

$10.99

$

Usually ships in 3-10 days

0

28

RedMax 848CE075F0

ROPE
(Superseded to 522645101)

$5.99

$

In Stock, only 1 left!

0

29

RedMax 8488251911

SCREW
(Superseded to 521518101)

$4.99

$

In Stock, Qty 5

0

31

RedMax 848CE05404

BRAKE ASSY
(Superseded to 586731001)

$218.99

$

Usually ships in 3-10 days

0

32

RedMax 848CE053A4

COVER, CHAIN
(Superseded to 527670801)

$218.99

$

Usually ships in 3-10 days

0

33

RedMax 267153230

GEAR
(Superseded to 513637901)

$10.99

$

Usually ships in 3-10 days

0

34

RedMax 284153240

SCREW
(Superseded to 574007601)

$10.99

$

Usually ships in 3-10 days

0

35

RedMax 848C3366K0

NUT
(Superseded to 521562001)

$9.99

$

Usually ships in 3-10 days

0

36

RedMax 848CE066C1

PLATE
(Superseded to 522643301)

$8.99

$

In Stock, only 1 left!

0

37

RedMax 267054630

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

$29.06

$

Usually ships in 3-10 days

0

39

RedMax 335624140

ROLLER
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

40

$2.16

$

Usually ships in 3-10 days

0

41

$3.39

$

Usually ships in 3-10 days

0

42

$0.75

$

Usually ships in 3-10 days

0

43

$0.19

$

Usually ships in 3-10 days

0

$

$

Not available

45

RedMax 285154350

ROLLER
(Superseded to 574070201)

$

$

Not available

46

RedMax 285154301

LEVER, BRAKE COMPLETE

$0.59

$

Usually ships in 3-10 days

0

48

RedMax 848CE053C2

COVER, BRAKE

$2.15

$

Usually ships in 3-10 days

0

49

RedMax 267054630

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

50

RedMax 848CE054D0

SPRING
(Superseded to 522643201)

$7.49

$

Usually ships in 3-10 days

0

51

RedMax 848CE054A3

GUARD
(Superseded to 522643101)

$

$

Not available

52

$0.59

$

Usually ships in 3-10 days

0

53

$0.57

$

Usually ships in 3-10 days

0

54

RedMax 285054120

SPRING, RETURN
(Superseded to 574008101)

$4.99

$

Usually ships in 3-10 days

0

55

RedMax 331053331

NUT
(Superseded to 514183901)

$4.99

$

In Stock, only 2 left!

0

56

RedMax 287254230

SPRING
(Superseded to 510816101)

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 335053410

NUT
(Superseded to 575960801)

$3.49

$

Usually ships in 3-10 days

0

61

RedMax 848CE290B0

LABEL, COVER

$1.24

$

Usually ships in 3-10 days

0

62

RedMax 848CE290C0

LABEL, RECOIL

$1.24

$

Usually ships in 3-10 days

0
