GXV690 R TAF3 (GJARK) - Honda Engine, Made in Japan (SN: GJARK-1000001 - GJARK-9999999) AIR CLEANER Parts Diagram

Engine, Made in Japan

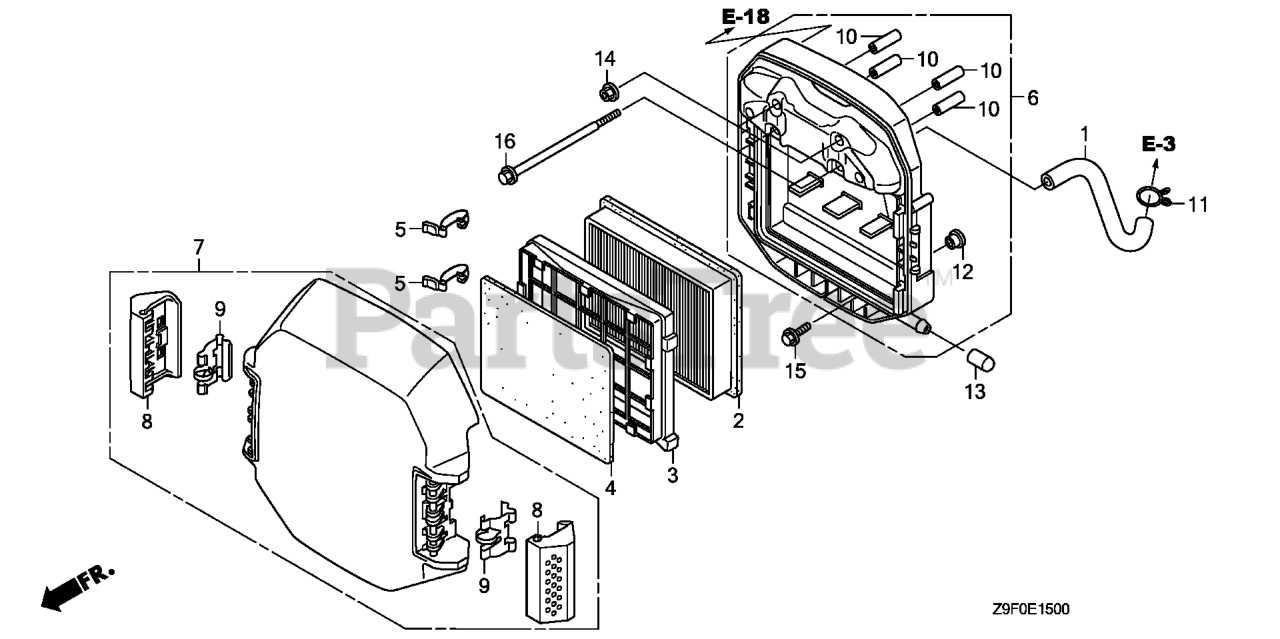

AIR CLEANER Parts Diagram

  • Title

1

Honda 15721-Z6M-000

TUBE, BREATHER

$7.99

$

Usually ships in 3-6 days

0

2

Honda 17210-Z6M-010

ELEMENT, AIR CLEANER

$33.99

$

In Stock, only 4 left!

0

3

Honda 17214-Z6M-000

HOLDER, ELEMENT

$24.99

$

Usually ships in 3-6 days

0

4

Honda 17218-Z6M-000

FILTER (OUTER)

$7.49

$

In Stock, only 1 left!

0

5

Honda 17219-ZJ1-840

CLIP, AIR CLEANER (Honda Code 6224679).

$4.49

$

In Stock, only 3 left!

0

6

Honda 17220-Z6M-010

HOUSING, AIR CLEANER

$100.99

$

In Stock, only 1 left!

0

7

Honda 17230-Z6M-010

COVER, AIR CLEANER

$77.99

$

Usually ships in 3-6 days

0

8

Honda 17235-Z6L-310

SEE PART DETAILS - PRI; KNOB, AIR CLEANER COVER

$10.99

$

Usually ships in 3-6 days

0

9

Honda 17236-Z6L-300

SPRING, AIR CLEANER HOUSING COVER

$11.99

$

Usually ships in 3-6 days

0

10

Honda 17240-ZA0-951

COLLAR, AIR CLEANER (Honda Code 2579506).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 17369-KB4-670

CLIP, BREATHER TUBE

$7.49

$

In Stock, only 1 left!

0

12

Honda 19619-Z0A-300

COLLAR, FAN COVER

$2.49

$

In Stock, only 2 left!

0

13

Honda 90802-Z6L-000

CAP, SEALING

$3.49

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

15

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, only 1 left!

0

16

Honda 95701-06110-00

BOLT, FLANGE (6X110)

$4.99

$

Usually ships in 3-6 days

0
