GXV690 R TAF2 (GJARK) - Honda Engine, Made in Japan (SN: GJARK-1000001 - GJARK-9999999) CONTROL Parts Diagram

Engine, Made in Japan

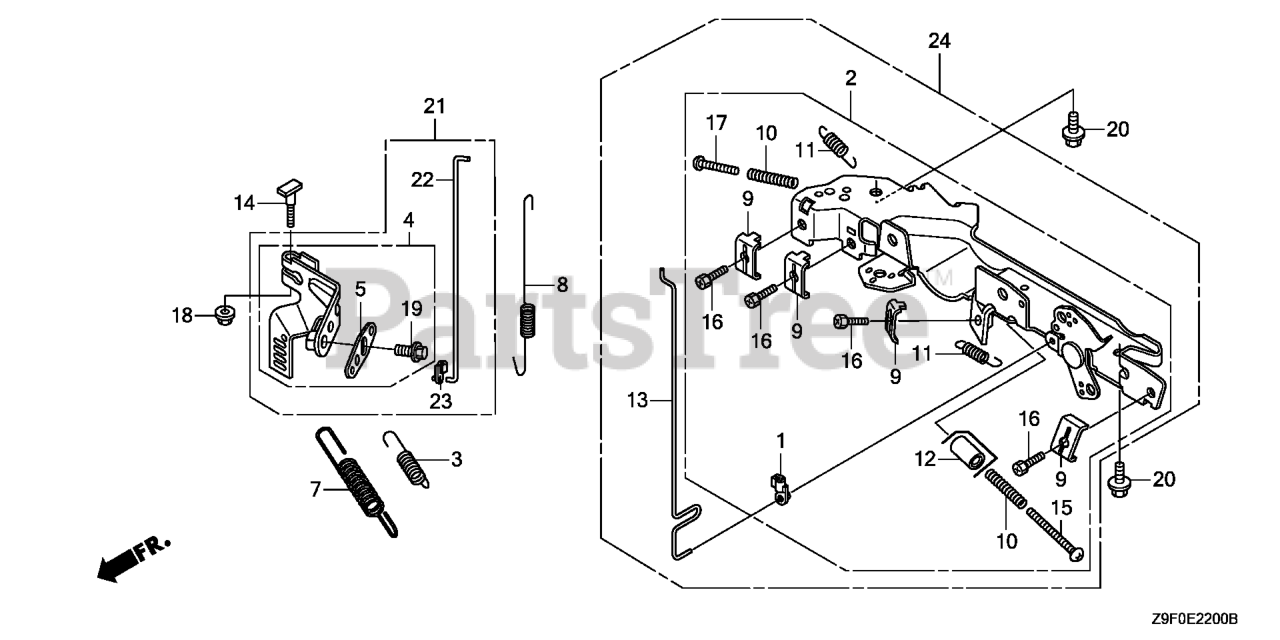

CONTROL Parts Diagram

  • Title

1

Honda 16263-Z0G-010

SEE PART DETAILS - PRI; JOINT, ROD

$3.99

$

In Stock, Qty 20+

0

2

Honda 16500-Z6L-020

CONTROL ASSY.

Note: Use from Engine SN 1000187.

$104.99

$

Usually ships in 3-6 days

0

3

Honda 16534-Z6L-000

SPRING, STARTER

$2.99

$

In Stock, Qty 12

0

4

Honda 16550-Z6L-020

ARM, GOVERNOR

Note: Use from Engine SN 1000259.

$28.99

$

Usually ships in 3-6 days

0

5

Honda 16553-Z6L-010

SEE PART DETAILS - PRI; ARM, SUB

Note: Use from Engine SN 1000259.

$3.99

$

Usually ships in 3-6 days

0

7

Honda 16561-Z6L-000

SPRING, GOVERNOR

$4.49

$

In Stock, Qty 12

0

8

Honda 16562-Z6M-000

SPRING, THROTTLE RETURN

$8.49

$

Usually ships in 3-6 days

0

9

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$5.49

$

In Stock, Qty 12

0

10

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$5.49

$

In Stock, Qty 6

0

11

Honda 16592-ZJ1-000

SPRING, CABLE RETURN (Honda Code 4209581).

$2.99

$

In Stock, Qty 12

0

13

Honda 16611-Z6M-010

ROD, CHOKE CONTROL

Note: Use from Engine SN 1000187.

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM (Honda Code 2560852).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 93500-05045-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X45)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 92301-05016-0A

SEE PART DETAILS - PRI; BOLT, RECESSED (5X16) (Honda Code 3509742).

$1.99

$

Usually ships in 3-6 days

0

17

Honda 93500-05030-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X30)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

19

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0

20

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, only 4 left!

0

21

Honda 04102-Z6M-000

ARM KIT, GOVERNOR

Note: (Optional)

$27.99

$

In Stock, only 1 left!

0

22

Honda 16555-Z6M-010

ROD, GOVERNOR

Note: Use from Engine SN 1000259.

$4.49

$

Usually ships in 3-6 days

0

23

Honda 17957-Z6L-003

BUSH, LINKAGE

Note: Use from Engine SN 1000259.

$2.49

$

In Stock, only 3 left!

0

24

Honda 04101-Z6L-700

KIT, CONTROL ASSY.

Note: Use up to Engine SN 1000186.

$100.99

$

Usually ships in 3-6 days

0
