GXV670 TAF2 (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) STARTER MOTOR Parts Diagram

Engine, Made in Japan

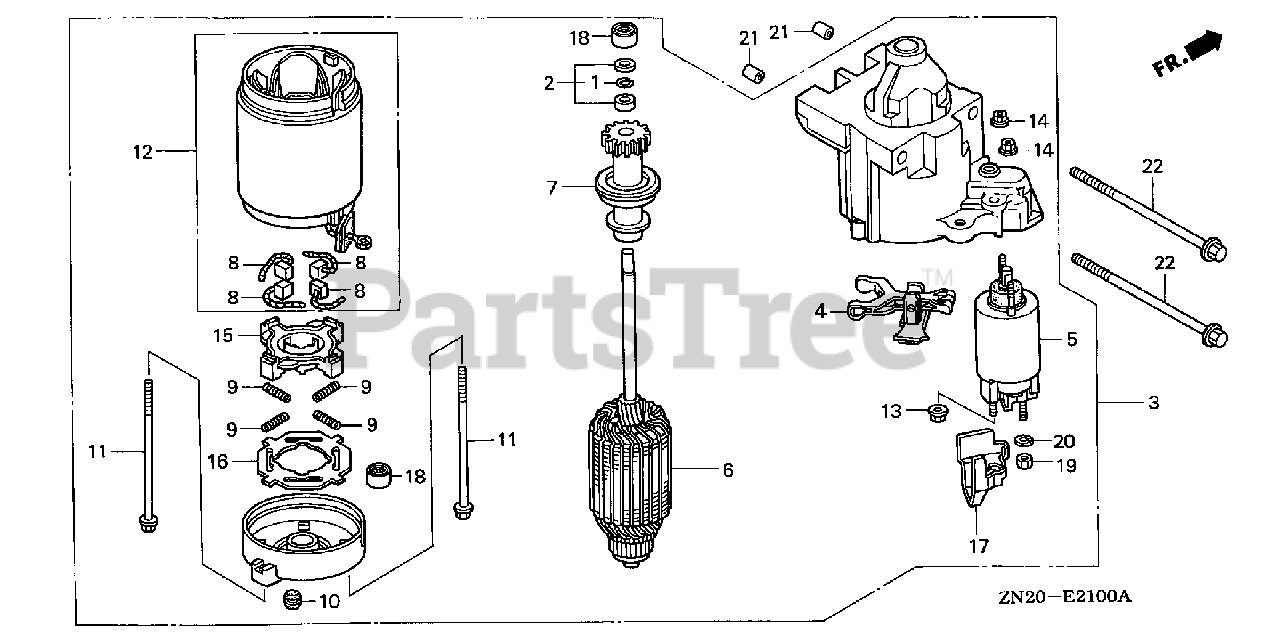

STARTER MOTOR Parts Diagram

  • Title

1

Honda 30201-PH9-004

RING, SNAP (DENSO)

Note: (Honda Code 3508322).

$3.99

$

Usually ships in 3-6 days

0

2

Honda 30202-PZ1-003

COLLAR SET, CLUTCH STOP

Note: (Honda Code 4840666).

$23.99

$

Usually ships in 3-6 days

0

3

Honda 31200-ZJ4-831

MOTOR ASSY., STARTER

Note: (Honda Code 6260897).

$

$

Currently unavailable

4

Honda 31203-PH9-004

LEVER, PINION DRIVE

Note: (Honda Code 4840831).

$46.99

$

Usually ships in 3-6 days

0

5

Honda 31204-ZJ1-H01

SWITCH ASSY., MAGNET
(Superseded to 31204-ZJ1-H02)

Note: (Honda Code 6225387).

$227.99

$

In Stock, only 1 left!

0

6

Honda 31206-ZG4-801

ARMATURE

Note: (Honda Code 3620325).

$264.99

$

Usually ships in 3-6 days

0

7

Honda 31207-ZJ4-831

CLUTCH, OVERRUNNING

Note: (Honda Code 6260905).

$352.99

$

Usually ships in 3-6 days

0

8

Honda 31211-PH9-004

BRUSH

Note: (Honda Code 3620366).

$22.99

$

Usually ships in 3-6 days

0

9

Honda 31212-PH9-004

SPRING, BRUSH

Note: (Honda Code 3508439).

$8.49

$

Usually ships in 3-6 days

0

10

Honda 31213-679-004

COVER

Note: (Honda Code 3620374).

$60.99

$

Usually ships in 3-6 days

0

11

Honda 31214-PH9-004

BOLT, THROUGH

Note: (Honda Code 3508454).

$12.99

$

Usually ships in 3-6 days

0

12

Honda 31218-P64-N01

YOKE

Note: (Honda Code 4840898).

$356.99

$

Usually ships in 3-6 days

0

13

Honda 31220-PH9-004

NUT, HEX. (8MM)

Note: (Honda Code 3508470).

$4.99

$

Usually ships in 3-6 days

0

14

Honda 31223-PA0-006

NUT, FLANGE (5MM)

Note: (Honda Code 0839688).

$5.49

$

Usually ships in 3-6 days

0

15

Honda 31231-PH9-004

HOLDER, BRUSH

Note: (Honda Code 3508496).

$67.99

$

Usually ships in 3-6 days

0

16

Honda 31233-PH9-004

INSULATOR, BRUSH HOLDER

Note: (Honda Code 3508504).

$41.99

$

Usually ships in 3-6 days

0

17

Honda 31234-ZJ1-H01

COVER, TERMINAL

Note: (Honda Code 6225411).

$

$

Not available

18

Honda 91002-ZG4-801

BEARING A

Note: (Honda Code 3509684).

$11.99

$

Usually ships in 3-6 days

0

19

Honda 94001-08000-0S

NUT, HEX. (8MM)

Note: (Honda Code 0167338).

$1.99

$

In Stock, Qty 8

0

20

Honda 94111-08000

WASHER, SPRING (8MM)

Note: (Honda Code 0058982).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94301-10120

PIN, DOWEL (10X12)

Note: (Honda Code 2028900).

$3.49

$

Usually ships in 3-6 days

0

22

Honda 95701-08110-00

BOLT, FLANGE (8X110)

Note: (Honda Code 4210555).

$3.99

$

Usually ships in 3-6 days

0
