GXV670 TAF2 (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) FUEL PUMP (TAF2) Parts Diagram

Engine, Made in Japan

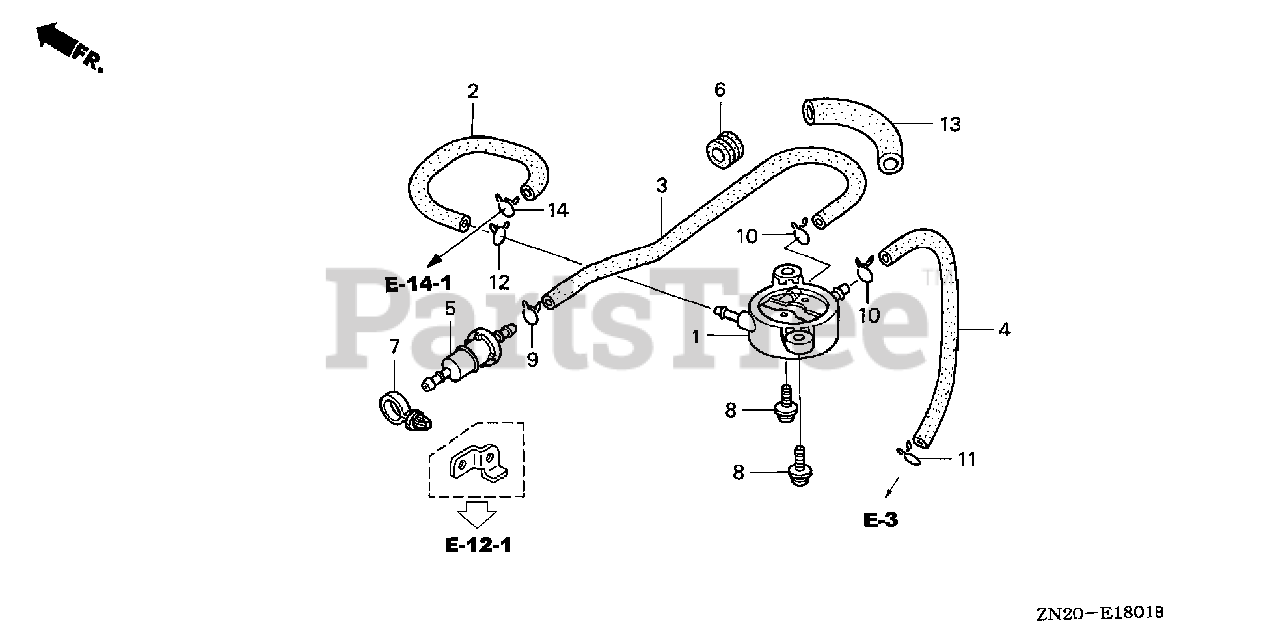

FUEL PUMP (TAF2) Parts Diagram

  • Title

1

Honda 16700-ZL8-003

SEE PART DETAILS - SUP; PUMP ASSY., FUEL
(Superseded to 16700-Z0J-003)

Note: Use up to Engine SN 1003907.

$92.99

$

Usually ships in 3-6 days

0

1

Honda 16700-ZL8-013

SEE PART DETAILS - SUP; PUMP ASSY., FUEL
(Superseded to 16700-Z0J-003)

$92.99

$

Usually ships in 3-6 days

0

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16850-ZN2-U10

TUBE, FUEL

Note: Use from Engine SN 1007340.

$

$

Not available

2

Honda 16851-ZN2-000

TUBE, FUEL

Note: Use up to Engine SN 1007339.

$

$

Not available

3

Honda 16852-ZN2-000

TUBE B, FUEL

$

$

Not available

4

Honda 16882-ZJ1-840

TUBE, DIAPHRAGM

$6.49

$

In Stock, only 1 left!

0

5

Honda 16910-ZE8-015

SEE PART DETAILS - PRI; STRAINER, FUEL

$14.99

$

In Stock, Qty 7

0

6

Honda 19111-MF5-000

GROMMET, RESERVE TANK

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90617-SA0-003

CLIP, WIRE HARNESS

$5.99

$

Usually ships in 3-6 days

0

8

Honda 93894-06016-00

SCREW-WASHER (6X16)

$0.99

$

In Stock, only 4 left!

0

9

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

10

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 20+

0

11

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 20+

0

12

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

13

Honda 95003-36003-10M

BULK HOSE, VINYL (11X13X3000) (11X13X50)

$

$

Currently unavailable

14

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use from Engine SN 1005268.

$2.49

$

In Stock, Qty 20+

0

14

Honda 95002-70000

CLIP, TUBE (C11)

Note: Use up to Engine SN 1005267.

$2.49

$

In Stock, Qty 5

0
