GXV670 TAF (GJAH) - Honda Engine, Made in Japan (SN: GJAH-1000001 - GJAH-1019999) OIL PAN Parts Diagram

Engine, Made in Japan

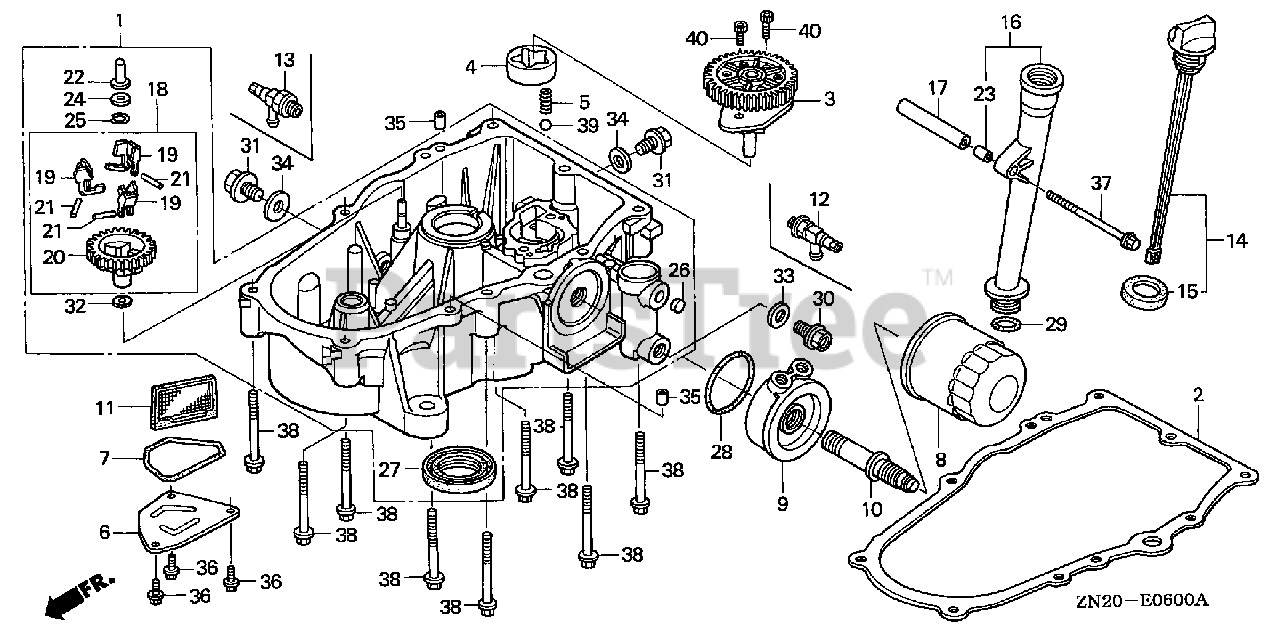

OIL PAN Parts Diagram

  • Title

1

Honda 11300-ZJ4-831

PAN ASSY., OIL

Note: (Honda Code 7122682).

$

$

Currently unavailable

2

Honda 11381-ZJ1-840

GASKET, CASE COVER

Note: (Honda Code 6223788).

$23.99

$

In Stock, Qty 5

0

3

Honda 15120-ZJ1-000

COVER ASSY., OIL PUMP
(Superseded to 15120-ZJ1-010)

Note: (Honda Code 4209276).

$71.99

$

In Stock, only 1 left!

0

4

Honda 15124-ZJ1-003

ROTOR, OIL PUMP (OUTER)

Note: (Honda Code 4209284).

$25.99

$

Usually ships in 3-6 days

0

5

Honda 15232-ZJ1-000

SPRING, RELIEF VALVE

Note: (Honda Code 4209292).

$2.99

$

In Stock, only 1 left!

0

6

Honda 15334-ZJ4-000

PLATE, OIL FILTER

Note: (Honda Code 4329736).

$16.99

$

Usually ships in 3-6 days

0

7

Honda 15339-ZJ4-000

O-RING, OIL PLATE

Note: (Honda Code 4329744).

$9.99

$

In Stock, Qty 5

0

8

Honda 15400-P0H-305PE

FILTER, OIL (SOLD INDIVIDUALLY)

Note: (Honda Code 6424329).

$

$

Not available

8

Honda 15400-ZJ1-004

FILTER, OIL (SOLD INDIVIDUALLY)
(Superseded to 15400-PLM-A02PE)

Note: (Honda Code 6836290).

$13.99

$

In Stock, Qty 16

0

9

Honda 15411-ZN2-000

BASE, OIL FILTER

Note: (Honda Code 6260293).

$156.99

$

In Stock, only 1 left!

0

10

Honda 15424-ZN2-000

BOLT, OIL FILTER

Note: (Honda Code 6260301).

$43.99

$

Usually ships in 3-6 days

0

11

Honda 15427-ZG8-000

SCREEN, OIL FILTER

Note: (Honda Code 3506359).

$13.99

$

In Stock, only 2 left!

0

12

Honda 15558-ZJ1-010AH

VALVE, DRAIN (14X1.5)

Note: (Optional). (Honda Code 4506622).

$29.99

$

Usually ships in 3-6 days

0

13

Honda 15558-772-010

VALVE, OIL SHUT-OFF

Note: (Optional). (Honda Code 4166112).

$30.99

$

Usually ships in 3-6 days

0

14

Honda 15600-ZJ4-000

CAP ASSY., OIL FILLER

Note: (Honda Code 4329751).

$27.99

$

In Stock, only 1 left!

0

15

Honda 15625-ZE8-000

GASKET, OIL FILLER CAP

Note: (Honda Code 2089969).

$5.49

$

In Stock, only 1 left!

0

16

Honda 15630-ZE8-000

EXTENSION, OIL FILLER
(Superseded to 15630-Z5N-800)

Note: (Honda Code 2089977).

$5.99

$

In Stock, only 1 left!

0

17

Honda 15637-ZJ4-830

COLLAR, FILLER SETTING

Note: (Honda Code 6260335).

$7.99

$

Usually ships in 3-6 days

0

18

Honda 16510-ZJ1-840

GOVERNOR ASSY.

Note: (Honda Code 6224364).

$28.99

$

Usually ships in 3-6 days

0

19

Honda 16511-ZJ1-840

WEIGHT, GOVERNOR

Note: (Honda Code 6224372).

$6.49

$

Usually ships in 3-6 days

0

20

Honda 16512-ZJ1-840

HOLDER, GOVERNOR WEIGHT

Note: (Honda Code 6224380).

$

$

Not available

21

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

Note: (Honda Code 2025971).

$2.49

$

Usually ships in 3-6 days

0

22

Honda 16531-ZE2-000

SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

Note: (Honda Code 2025989).

$3.99

$

In Stock, Qty 5

0

22

Honda 16531-Z0A-000

SLIDER, GOVERNOR

Note: (Honda Code 6605117).

$3.99

$

In Stock, Qty 5

0

23

Honda 17240-ZE6-000

COLLAR, EXTENSION

Note: (Honda Code 1453000).

$4.99

$

In Stock, only 1 left!

0

24

Honda 90473-147-000

WASHER (6X16)

Note: (Honda Code 0465591).

$1.99

$

In Stock, only 2 left!

0

25

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

26

Honda 90855-921-300

PLUG, SEALING (10MM)

Note: (Honda Code 0285395).

$3.99

$

In Stock, only 1 left!

0

27

Honda 91202-ZJ1-841

OIL SEAL (38X58X9)

Note: (Honda Code 6227169).

$11.99

$

In Stock, Qty 11

0

28

Honda 91301-MG8-003

O-RING (51.6X2.3) (ARAI)

Note: (Honda Code 2016251).

$3.99

$

Usually ships in 3-6 days

0

29

Honda 91301-ZE9-003

O-RING (22.5X2.2)

Note: (Honda Code 2280006).

$2.49

$

In Stock, Qty 12

0

30

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

Note: (Honda Code 0171777).

$5.99

$

Usually ships in 3-6 days

0

31

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

Note: (Honda Code 0209635).

$7.49

$

Usually ships in 3-6 days

0

32

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

33

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

Note: (Honda Code 0171876).

$0.99

$

In Stock, Qty 20+

0

34

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

Note: (Honda Code 0251728).

$1.99

$

In Stock, only 3 left!

0

35

Honda 94301-08140

PIN A, DOWEL (8X14)

Note: (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

36

Honda 95701-06014-00

BOLT, FLANGE (6X14)

Note: (Honda Code 2410884).

$1.49

$

In Stock, Qty 5

0

37

Honda 95701-06100-00

BOLT, FLANGE (6X100)

Note: (Honda Code 2519742).

$3.99

$

Usually ships in 3-6 days

0

38

Honda 95701-08050-00

BOLT, FLANGE (8X50)

Note: (Honda Code 2935740).

$3.49

$

In Stock, Qty 5

0

39

Honda 96211-12000

BALL, STEEL (#12) (3/8)

Note: (Honda Code 1847086).

$1.49

$

Usually ships in 3-6 days

0

40

Honda 96600-06016-00

BOLT, SOCKET (6X16)

Note: (Honda Code 2154698).

$2.49

$

Usually ships in 3-6 days

0
